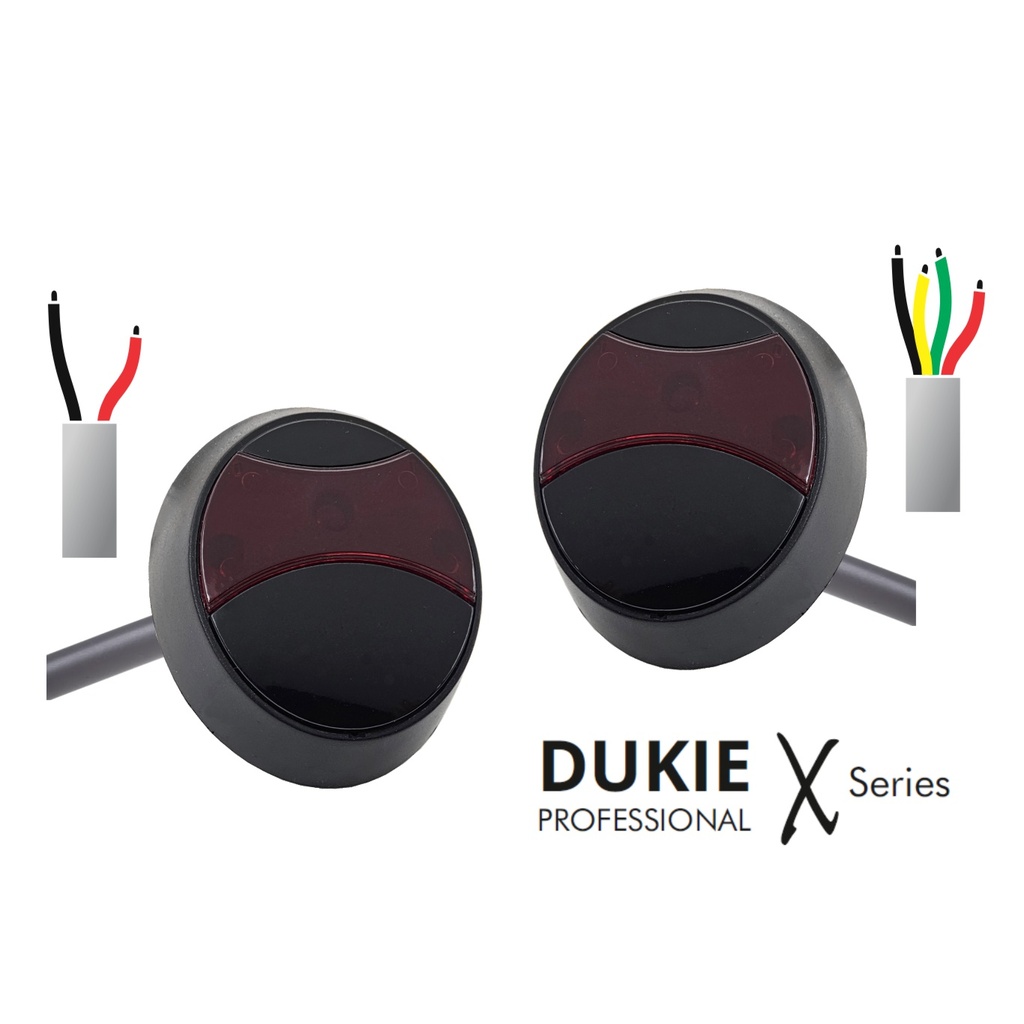

Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
Specifications
| Voltage | 12-24V AC/DC |
| Consumption | (RX 30mA) (+TX 15mA If Wired) |
| Relay | NO/NC (1A) |
| Range | 10m Max. (-30%) Poor Conditions |
| IP Rating | IP55 |
| Infrared Frequency | 32KHZ |
| Wave Length | 940nm |
| Operating Temperature | -10°C-70°C |
| Dimensions | 81x65x29mm |
