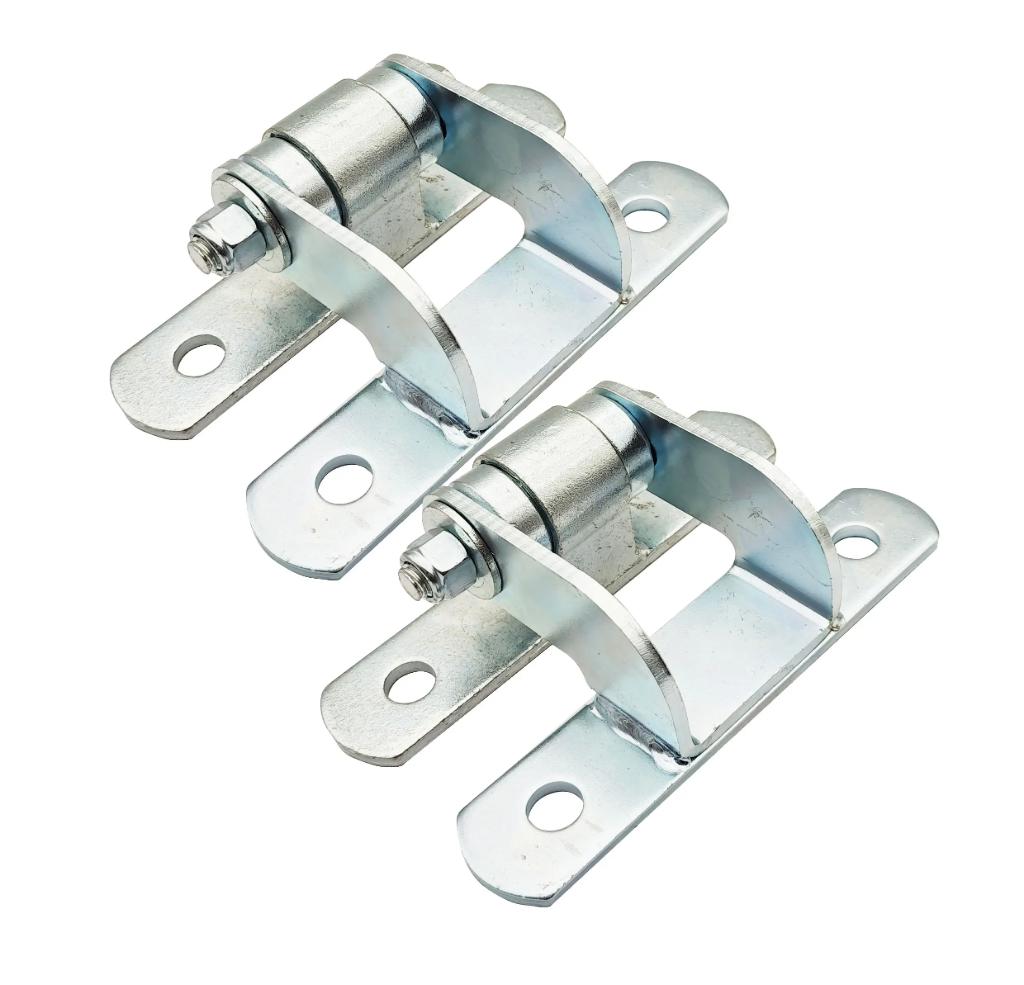

Pair of Double Bearing Hinge High Capacity Face Mount (Top and Bottom)
Kit Part No:
SH-FM-B-ADJ x2
Adjustable Face Mount Bolt on Hinge
✓ Double Sealed ball bearing per hinge (Replacable/Servicable)
✓ Bolts though the gate/post or could be welded to gate/post.
✓ Conservitavley supports 500KG per pair of hinges
✓ Adjustable distance from post to center of gate
✓ Can be used with tight/minimal post gap clearances.
✓ Suitable for steel, aluminium or timber gates.
✓ Bolts though the gate/post or could be welded to gate/post.
✓ Conservitavley supports 500KG per pair of hinges
✓ Adjustable distance from post to center of gate
✓ Can be used with tight/minimal post gap clearances.
✓ Suitable for steel, aluminium or timber gates.

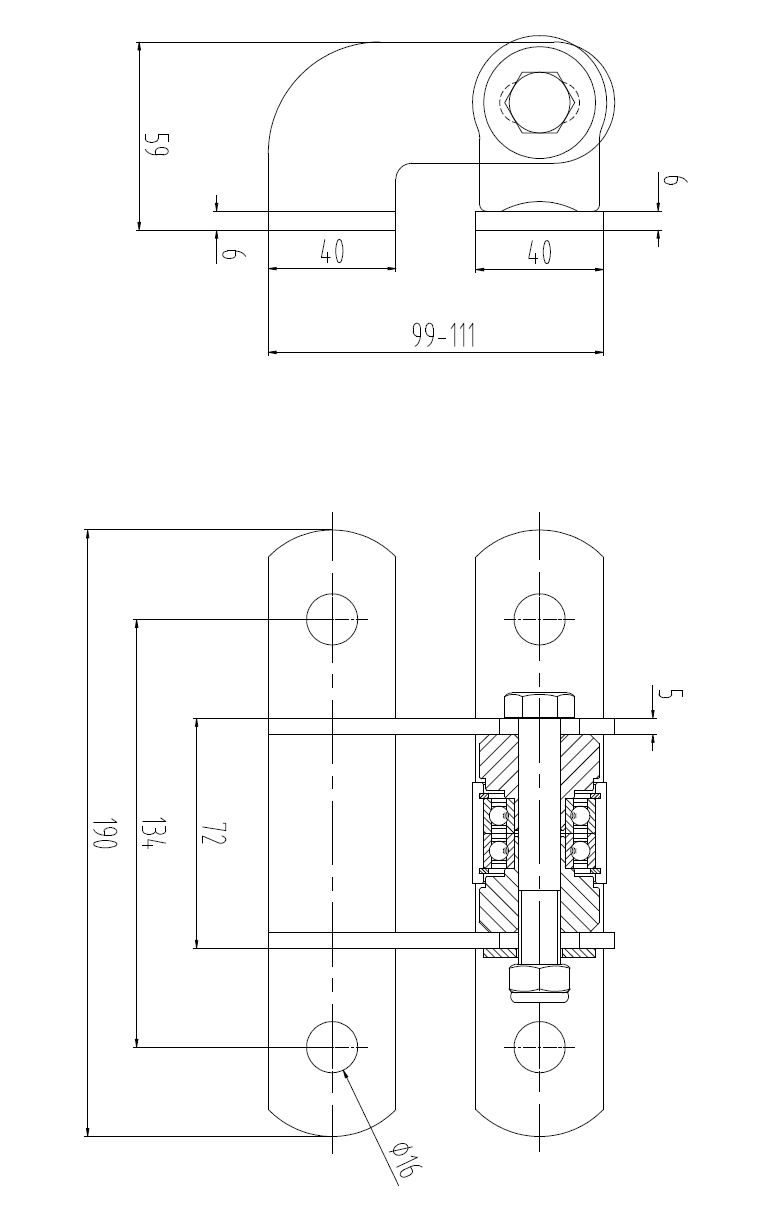

Technical Drawing
