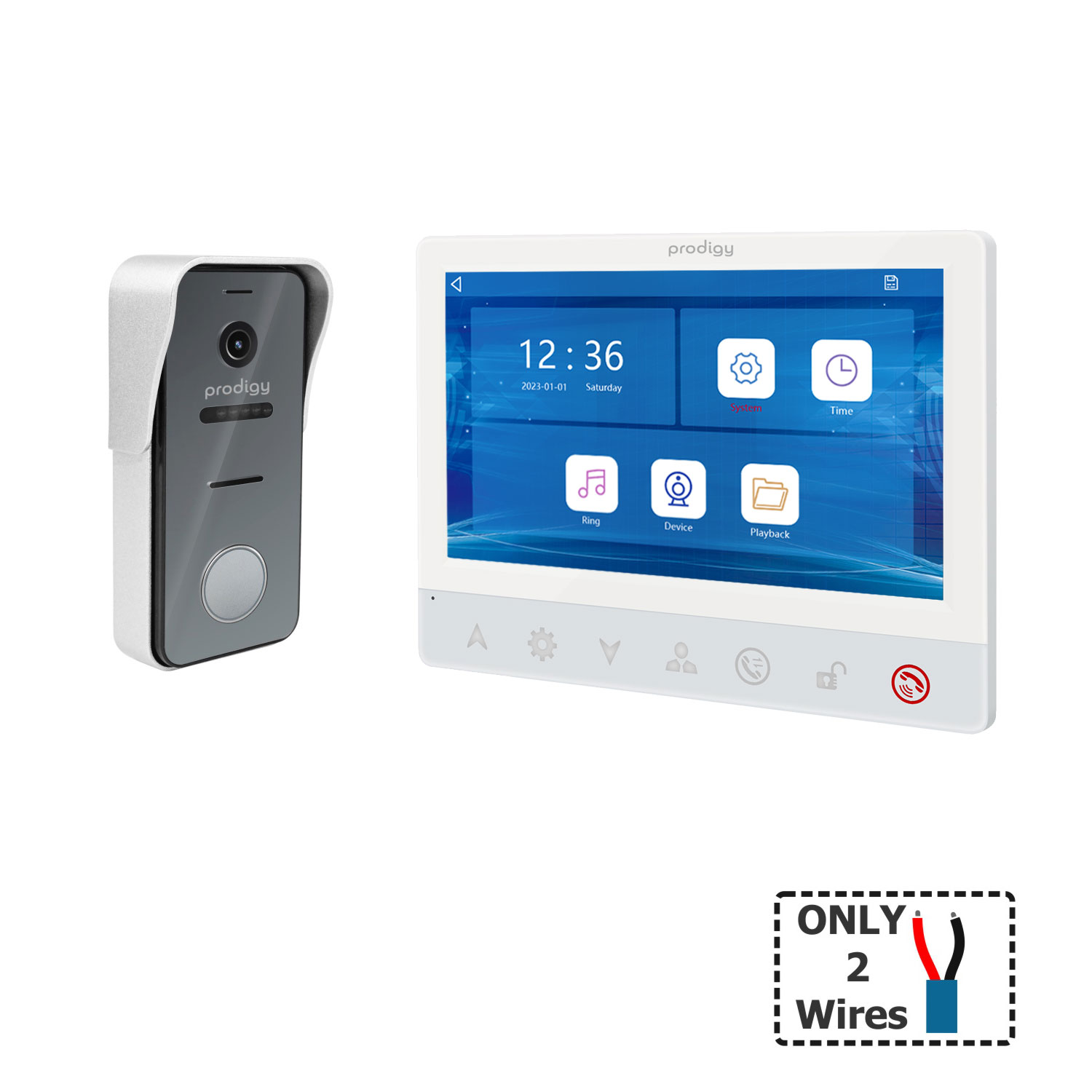

Doorbell Video Intercom Kit 2 Wire Mirror Finish Silver Outdoor Station with 35 Degree Aluminum Wedge Bracket
Part No:
B2-DS+B27IMW
| Intercom Type: With Internal Screen |
EASY TO INSTALL 2 Wire Intercom Package
Finally a budget friendly, feature packed 2 wire system with simple installation. The prodigy B2- 2 wire systems offer all the typical features of an intercom such as day/night vision, unlocking capabilities and Totally 2 wire connection between indoor monitor and outdoor unit (no need for a power supply at the outdoor unit).

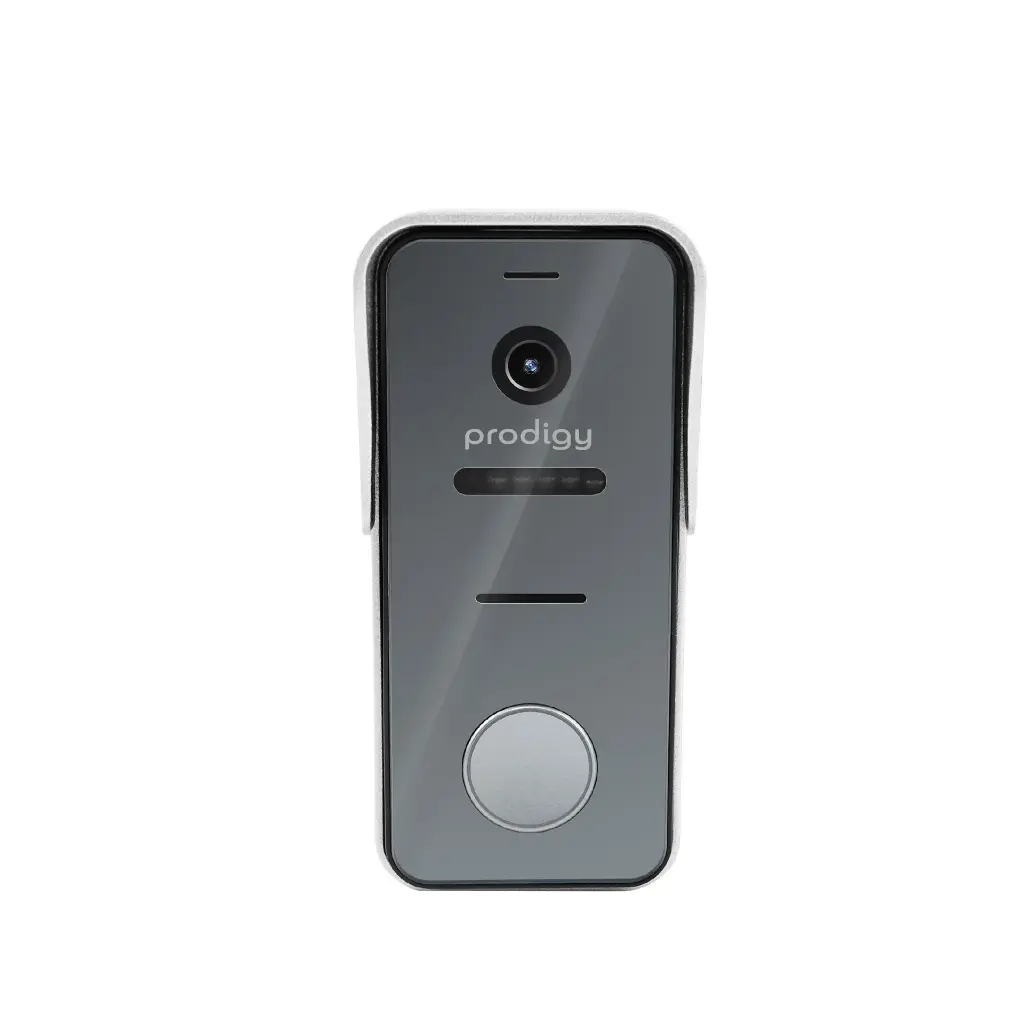

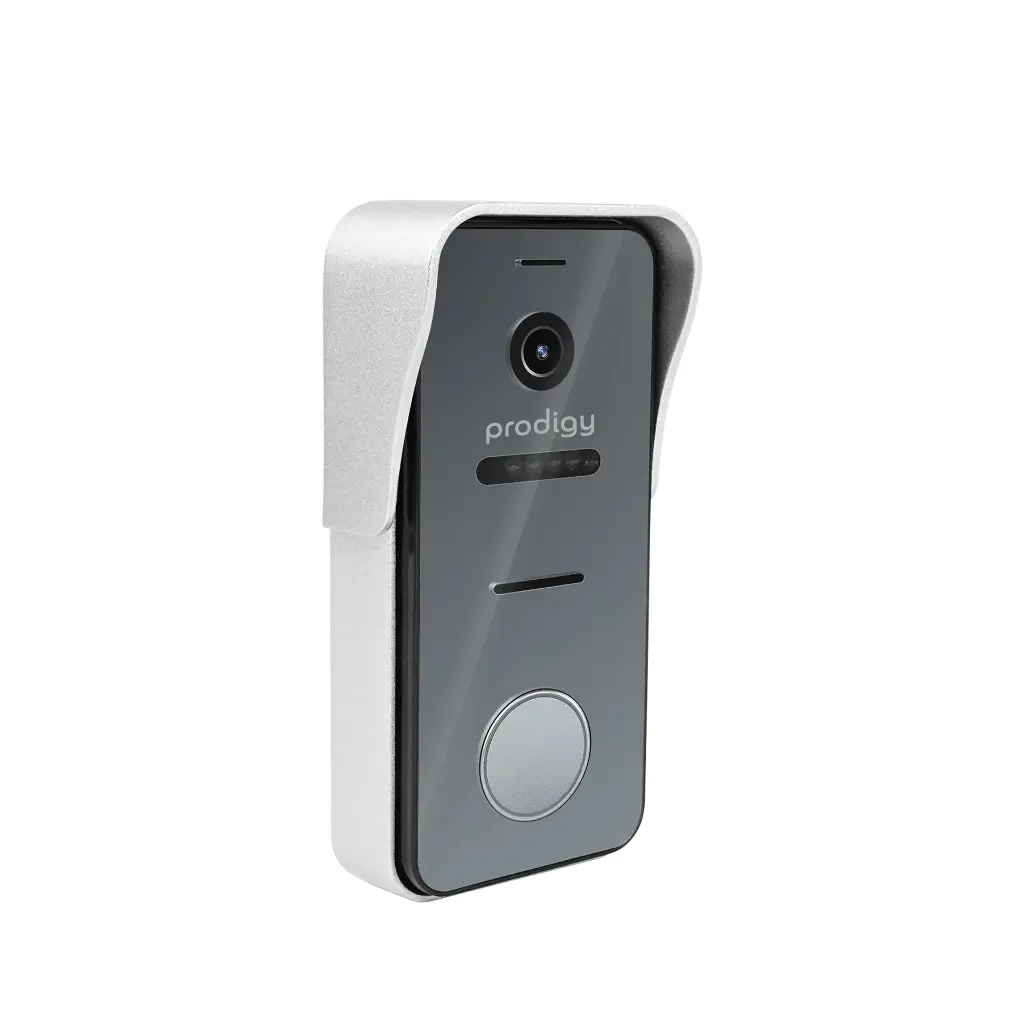

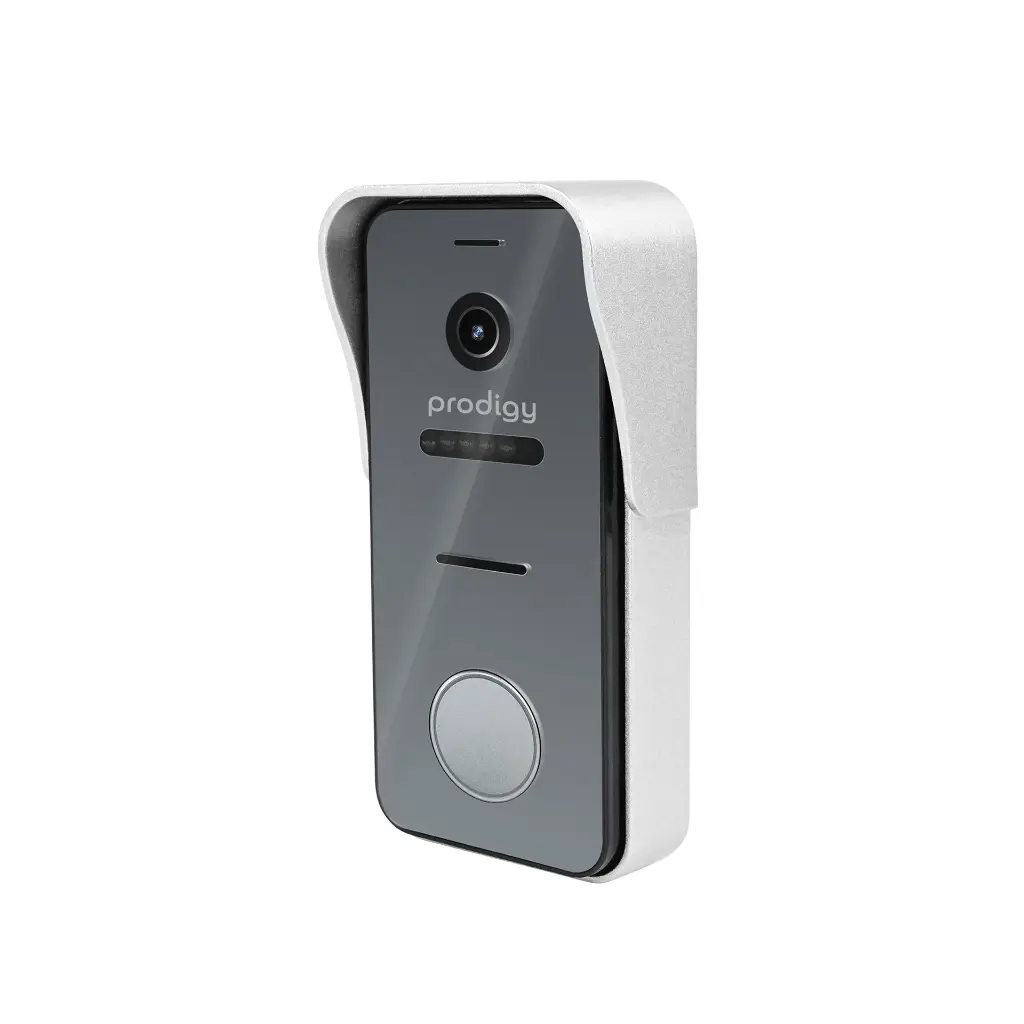

At the weatherproof outdoor unit a 130° wide angle outdoor station camera with CMOS sensor and a 35 degree wedge bracket for left/right bias of the outdoor station when required.

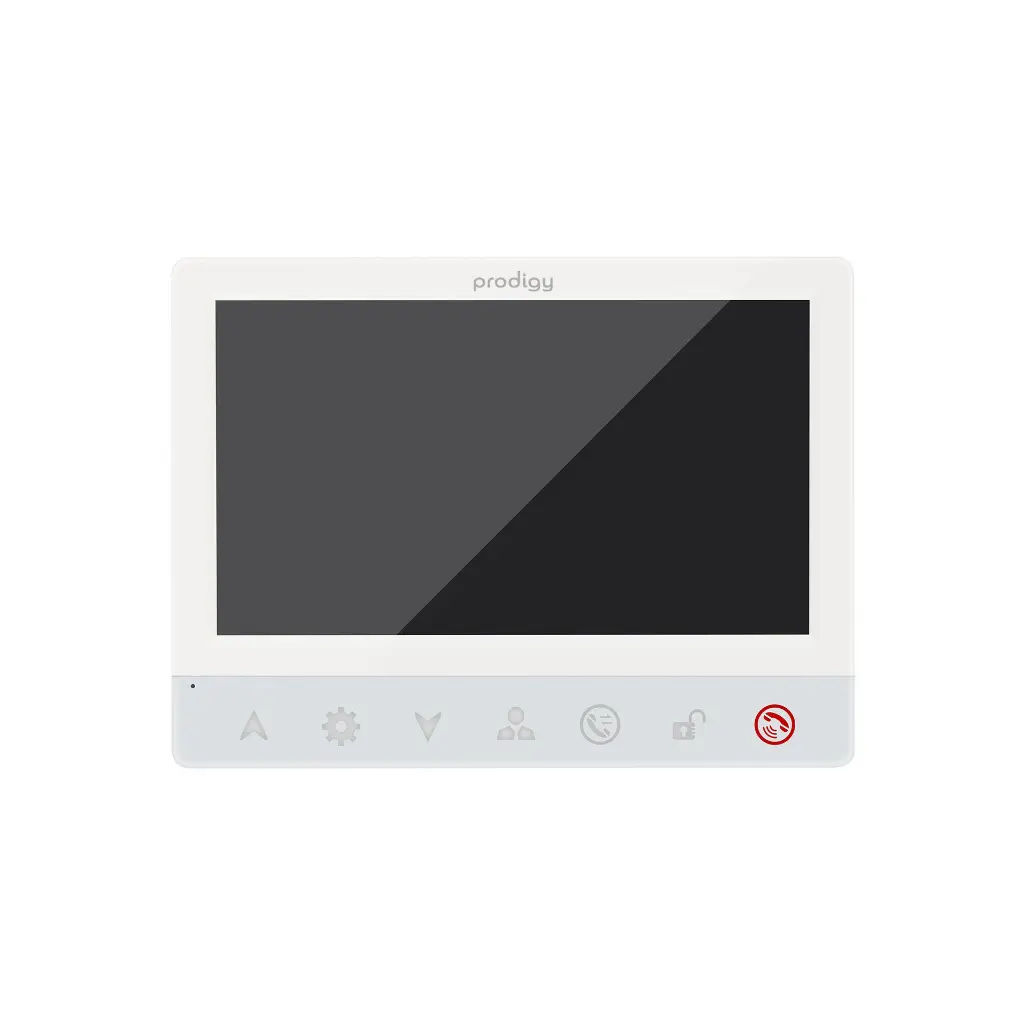

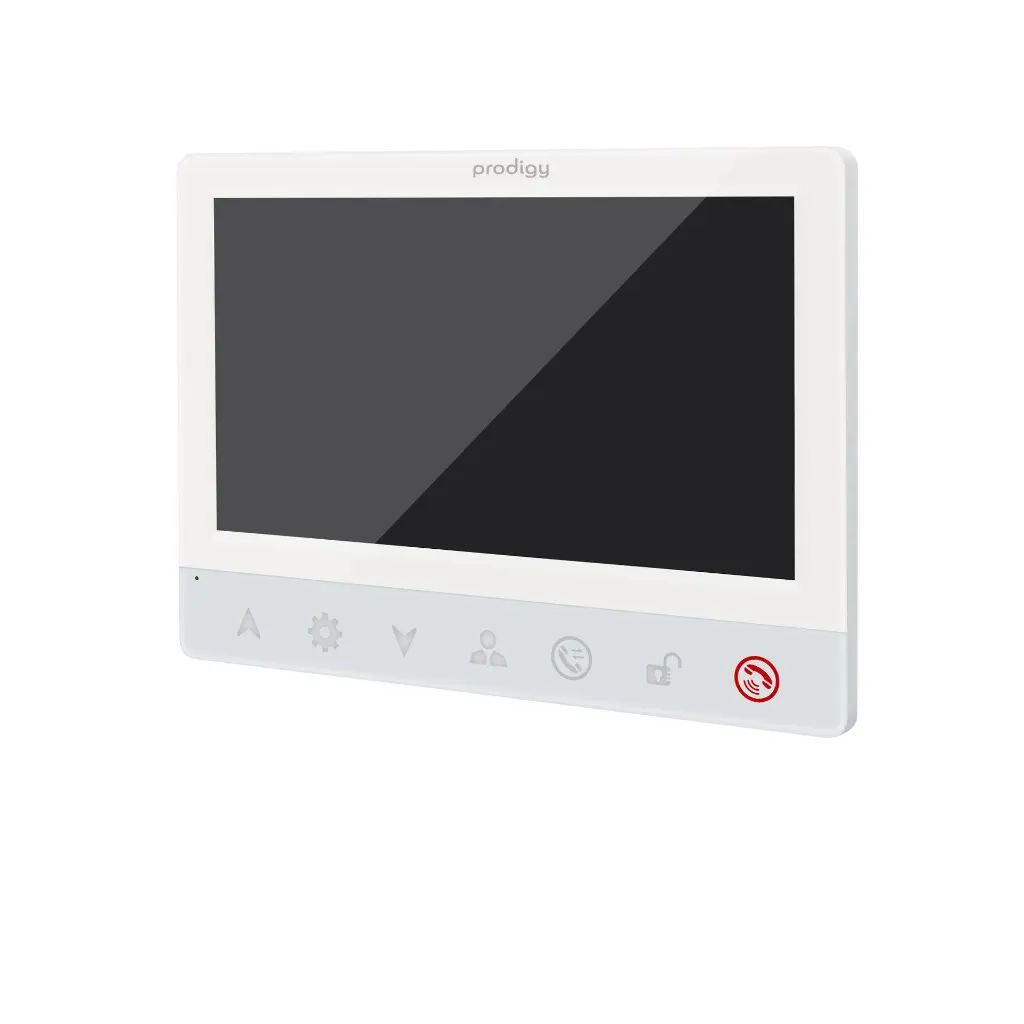

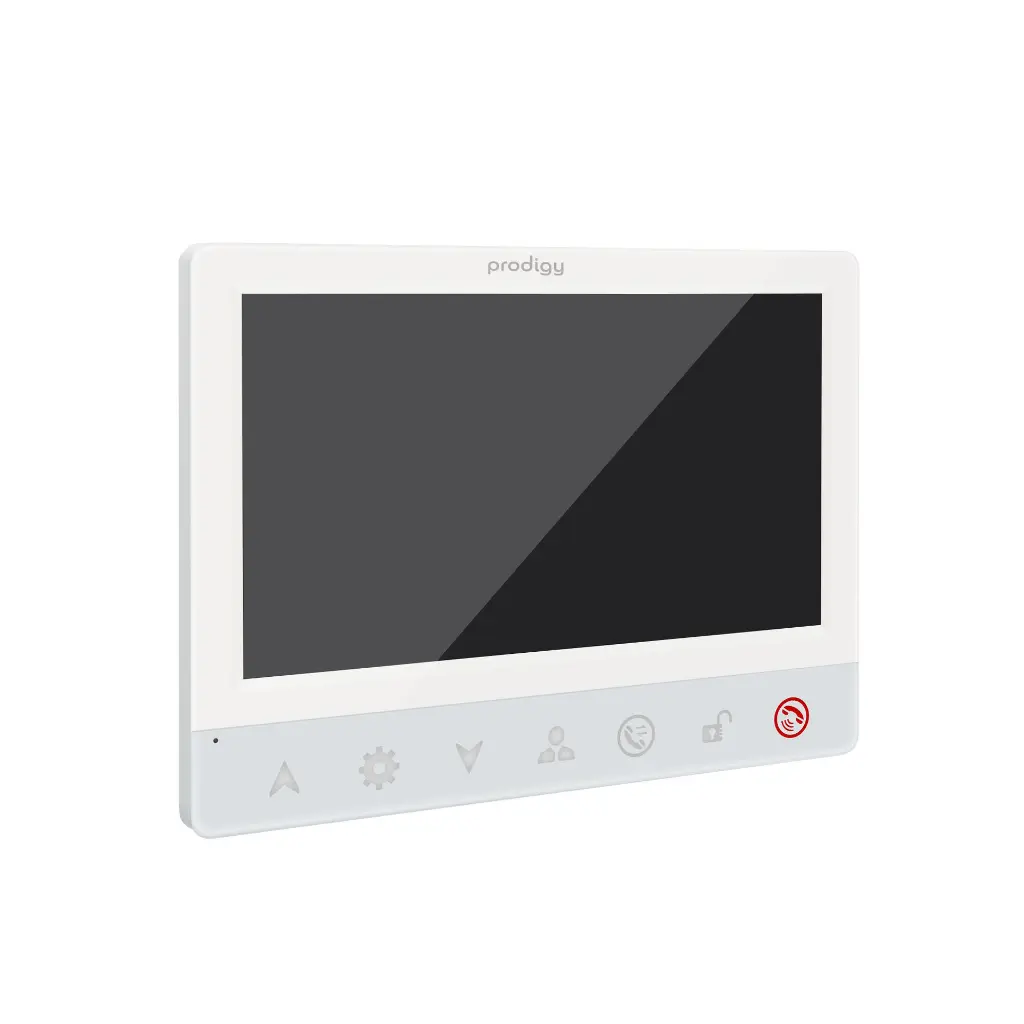

At the internal monitor a true ultra large 7" display with video recordings, photo snapshots, multi monitor communications, door/gate lock control and all the necessary features of a modern day smart intercom system.
General System Features
✓Two Wire Connection✓True 7" LCD Display
✓Door/Gate release feature
✓Multi Monitor intercommunication calls allows for communication with others in the home between different indoor monitor screens
Flexible Cabling System
Cabling Requirements

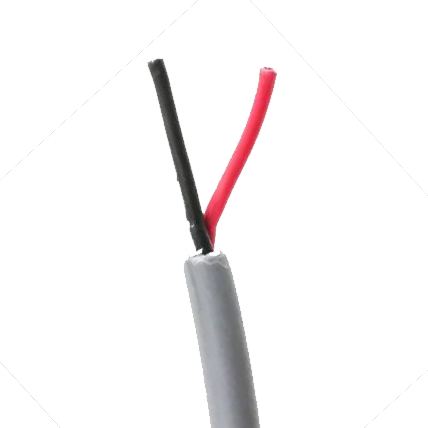

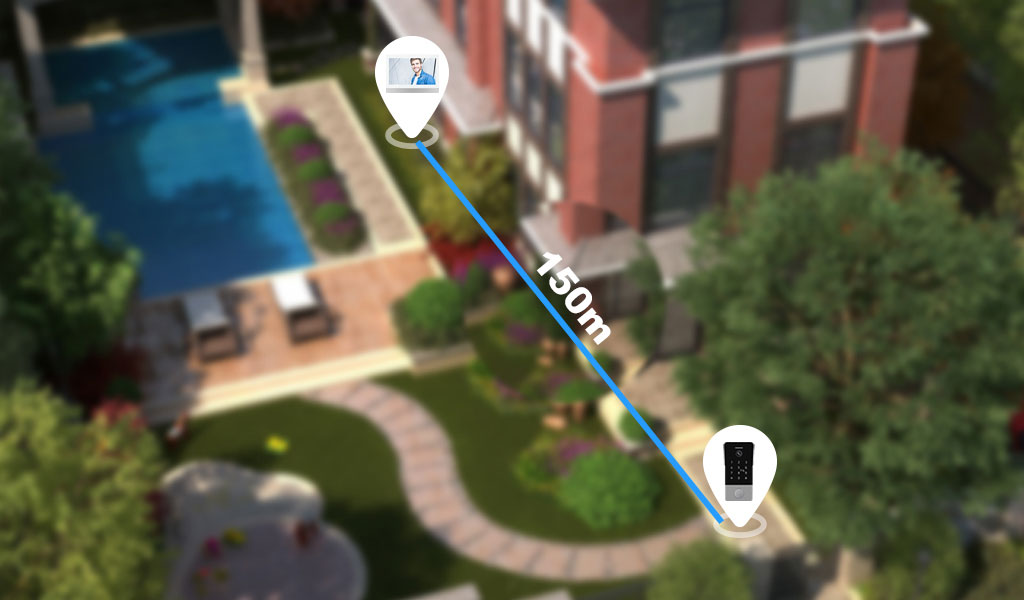

| 2 Core Cable |  | Up to 150 Meters Using 0.75mm Pair |
| 2 Core Cable | | Up to Up to 50 Meters using 0.5mm Pair |

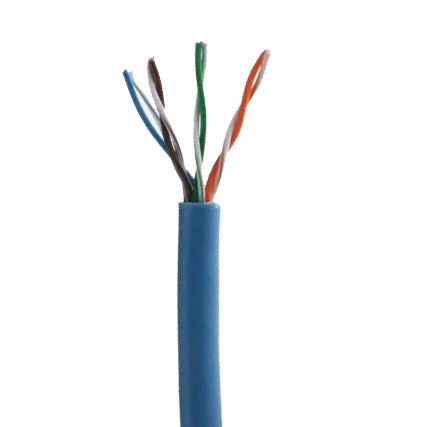

| Cat 5 and Cat 6 Cables |  | Up to 30 Meters using Cat 5, Cat5e, Cat 6 (all 4 pairs) |

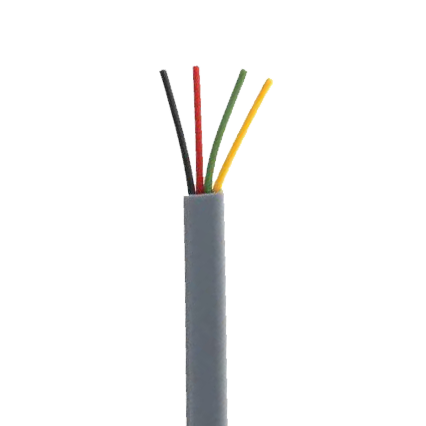

| Security Cable .020 |  | Up to 40 Meters using 4 Core and 6 Core Security Cable (Paired) |
System Wiring Examples

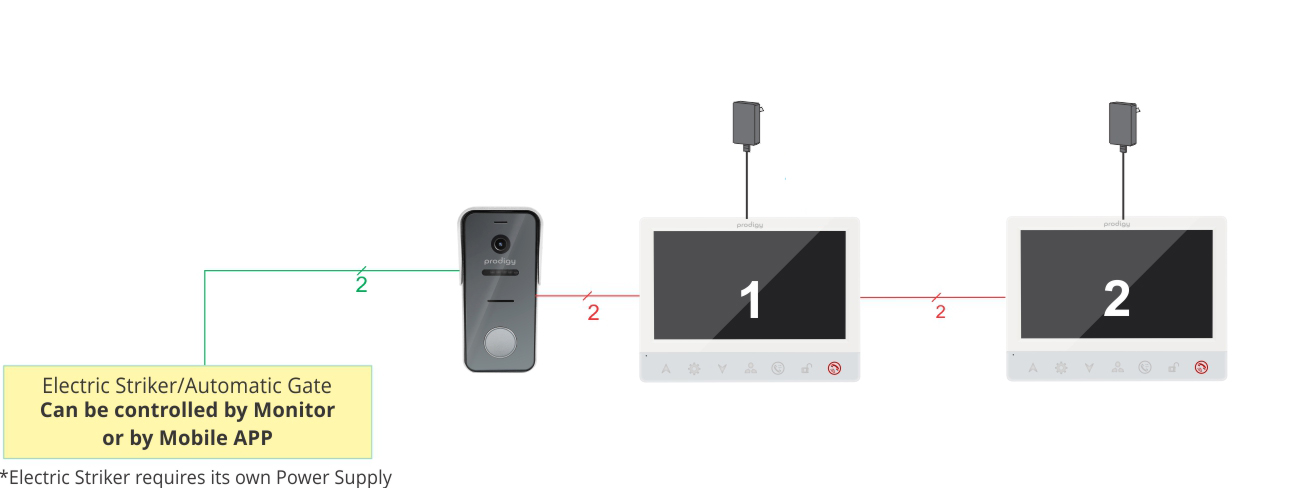

Typical example of a layout for home with the option of one or two indoor monitors (maximum two indoor monitors, maximum one outdoor station)
Gate and Door Release Wiring Examples

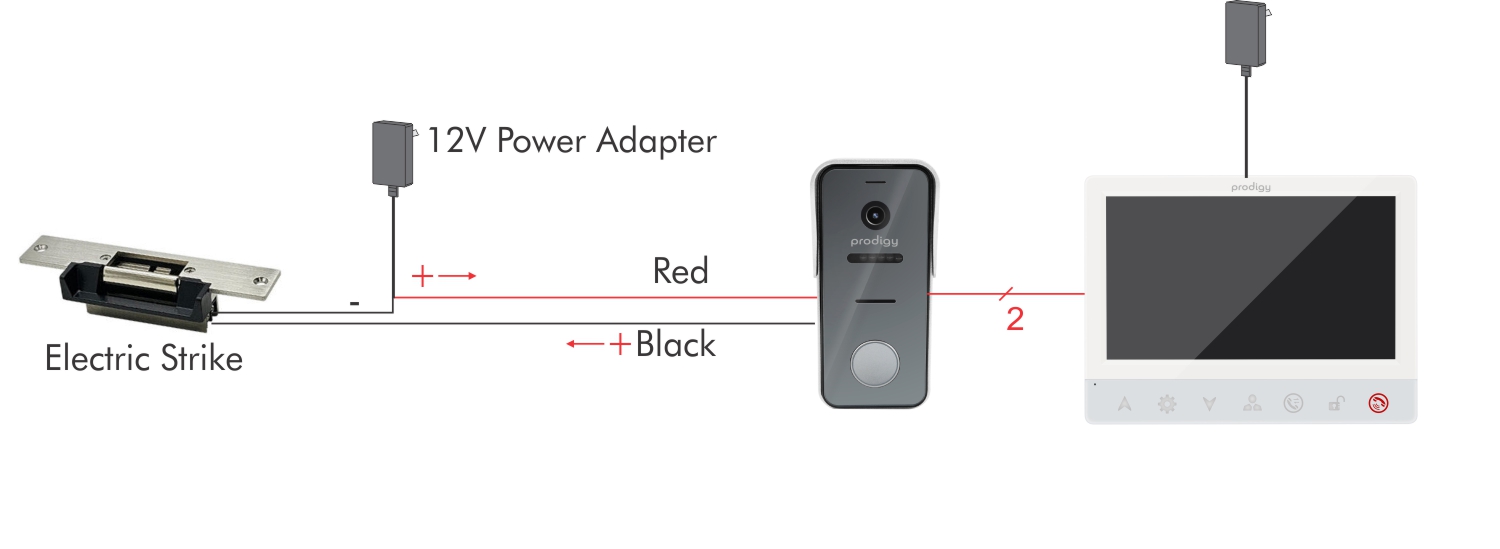

Example of electric striker connection

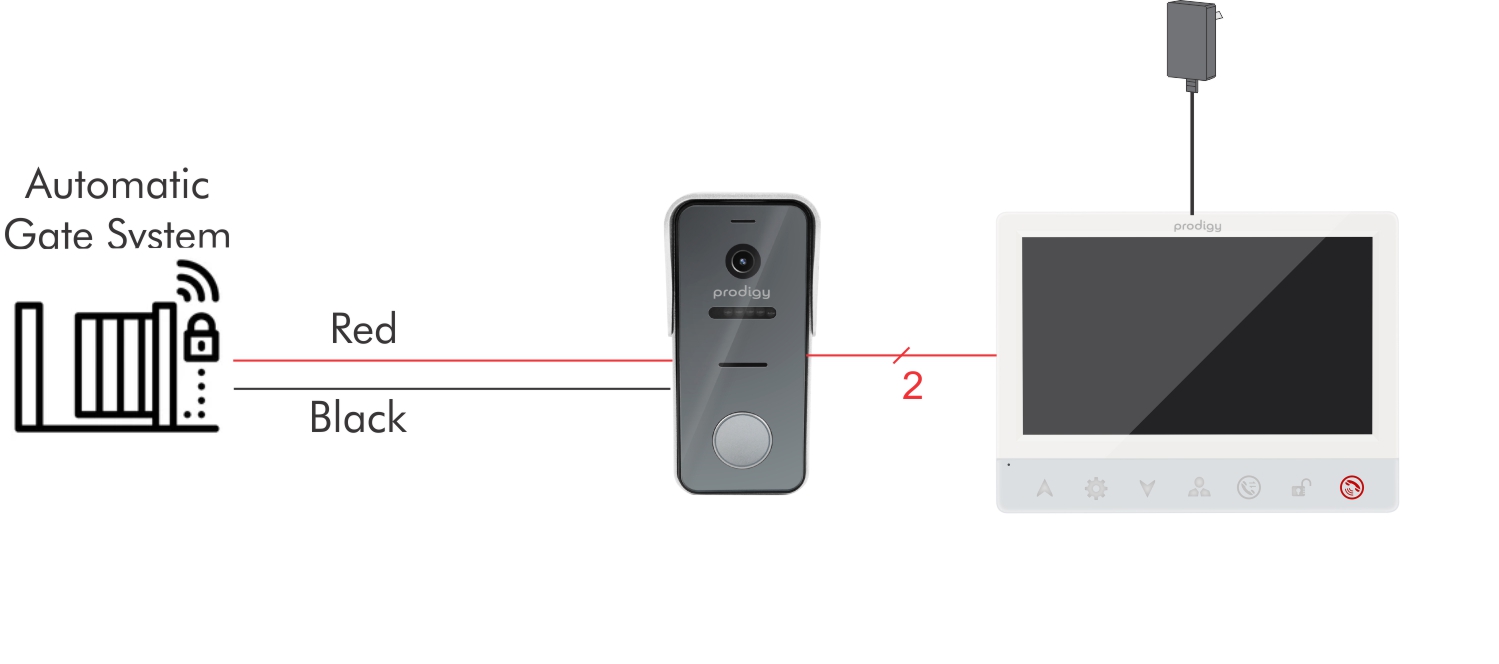

Example of Automatic gates/Garage Door connection

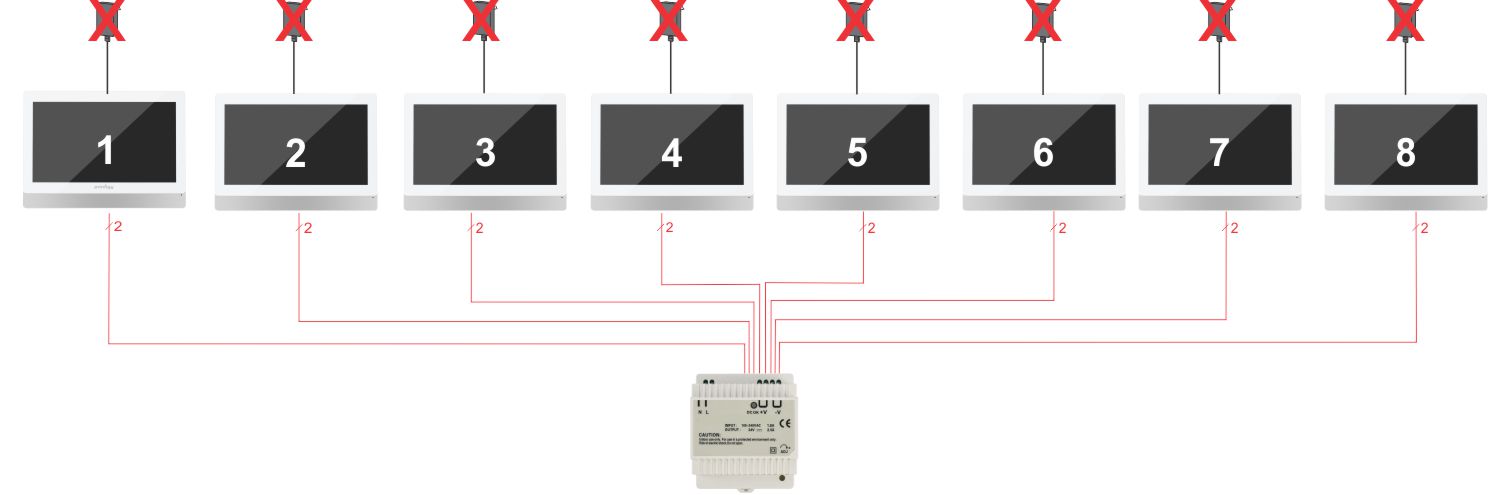

Optional Centralized Power Supply Example for Indoor Monitors
Typically used when a localized power adapter is not suitable or a centralized power method is preferred.
