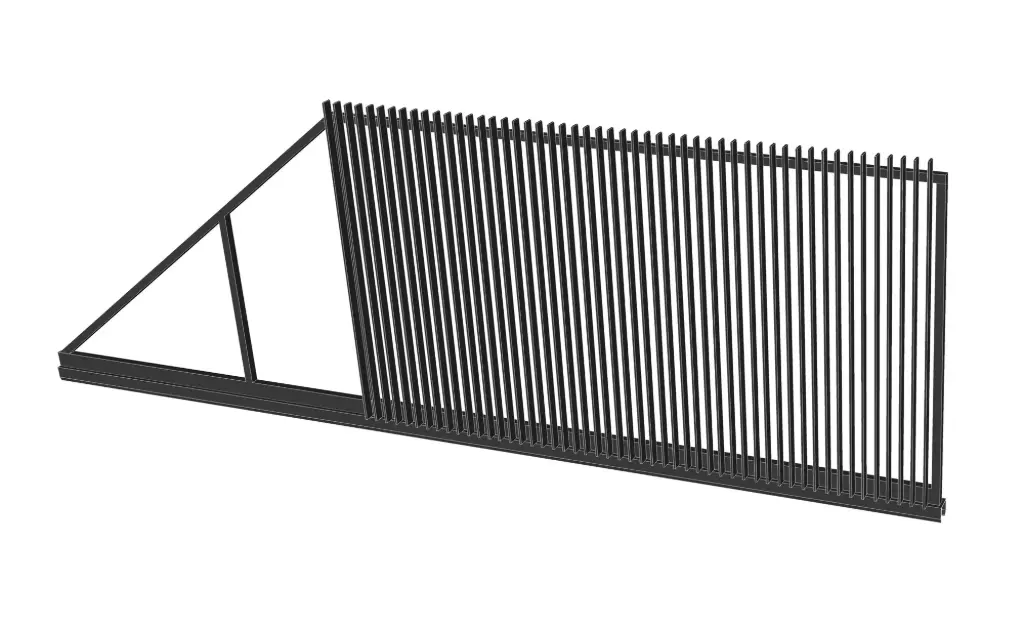

Custom CANTILEVER Vertical Blade Sliding Gate (Steel) Gate Panel Only
Customize Your Product
Loading customization options...
ℹ️ Custom CANTILEVER gates are Melbourne only .
⚠️ Custom CANTILEVER gates must be picked up within 3 days of completion with an adequate vehichle (no hand loading - forklift only).
⚠️ Custom gates orders are final without the option of modification or return, these gates are made specific to your order information.
⚠️ The final gate price is based on opening + 30% + 1000mm. The cantilever channel welded to the gate is factored into the price.
Custom Made CANTILEVER Gate
Our cost effective custom CANTILEVER gates allow for full flexibility to suit your installation. The Width, height and colour are all made according to your final requirments.
For custom fabrications all gates are constructed to above standard then coated with your desired powder coat colour (Dulux powder coat), it can also be provided without powder coating as a cheaper option.
ℹ️ Custom CANTILEVER gates are Melbourne only .
⚠️ Custom CANTILEVER gates must be picked up within 3 days of completion with an adequate vehichle (no hand loading - forklift only).
⚠️ Custom gates orders are final without the option of modification or return, these gates are made specific to your order information.
⚠️ The final gate price is based on opening + 30% + 1000mm. The cantilever channel welded to the gate is factored into the price.
Custom Made CANTILEVER Gate
Our cost effective custom CANTILEVER gates allow for full flexibility to suit your installation. The Width, height and colour are all made according to your final requirments.
For custom fabrications all gates are constructed to above standard then coated with your desired powder coat colour (Dulux powder coat), it can also be provided without powder coating as a cheaper option.
Please note a fabricated base is required for the gate motor to raise its level to suit the cantilever assembly assembly height of 170mm (16 Wheel) or 200mm (8 Wheel).
End Cap for C8MN Channel
✓ Clamps in place by tightening the two bolts
Guide Wheel for C8MN and C16M Channel
✓ Additional can be used for the open position (requires additional resting point bottom catcher)
✓ Clamps in place by tightening the bottom bolts
(Default Option) 16 Wheel Cantilever Carriage
✓ Supports up to 900KG Max. Weight Gate
✓ 12mm Base Plate
(Alternative Option)8 Wheel Cantilever Carriage
✓ Supports up to 650KG Max. Weight Gate
✓ Base Plate included for Leveling and adjustability
Resting Point/Catcher
✓ Resting point for Guide Wheel
✓ Used as the Top catcher position
✓ If using an additional guide wheel for the open position an additional rest point will also be required
Galvanized Cantilever Channel for C8MN and C16M Cantilever System
✓ Suitable for welding to the gate, screwing to the gate and other attachment methods
Please note a fabricated base is required for the gate motor to raise its level to suit the cantilever assembly assembly height of 170mm (16 Wheel) or 200mm (8 Wheel).
End Cap for C8MN Channel
✓ Clamps in place by tightening the two bolts
Guide Wheel for C8MN and C16M Channel
✓ Additional can be used for the open position (requires additional resting point bottom catcher)
✓ Clamps in place by tightening the bottom bolts
(Default Option) 16 Wheel Cantilever Carriage
✓ Supports up to 900KG Max. Weight Gate
✓ 12mm Base Plate
(Alternative Option)8 Wheel Cantilever Carriage
✓ Supports up to 650KG Max. Weight Gate
✓ Base Plate included for Leveling and adjustability
Resting Point/Catcher
✓ Resting point for Guide Wheel
✓ Used as the Top catcher position
✓ If using an additional guide wheel for the open position an additional rest point will also be required
Galvanized Cantilever Channel for C8MN and C16M Cantilever System
✓ Suitable for welding to the gate, screwing to the gate and other attachment methods
