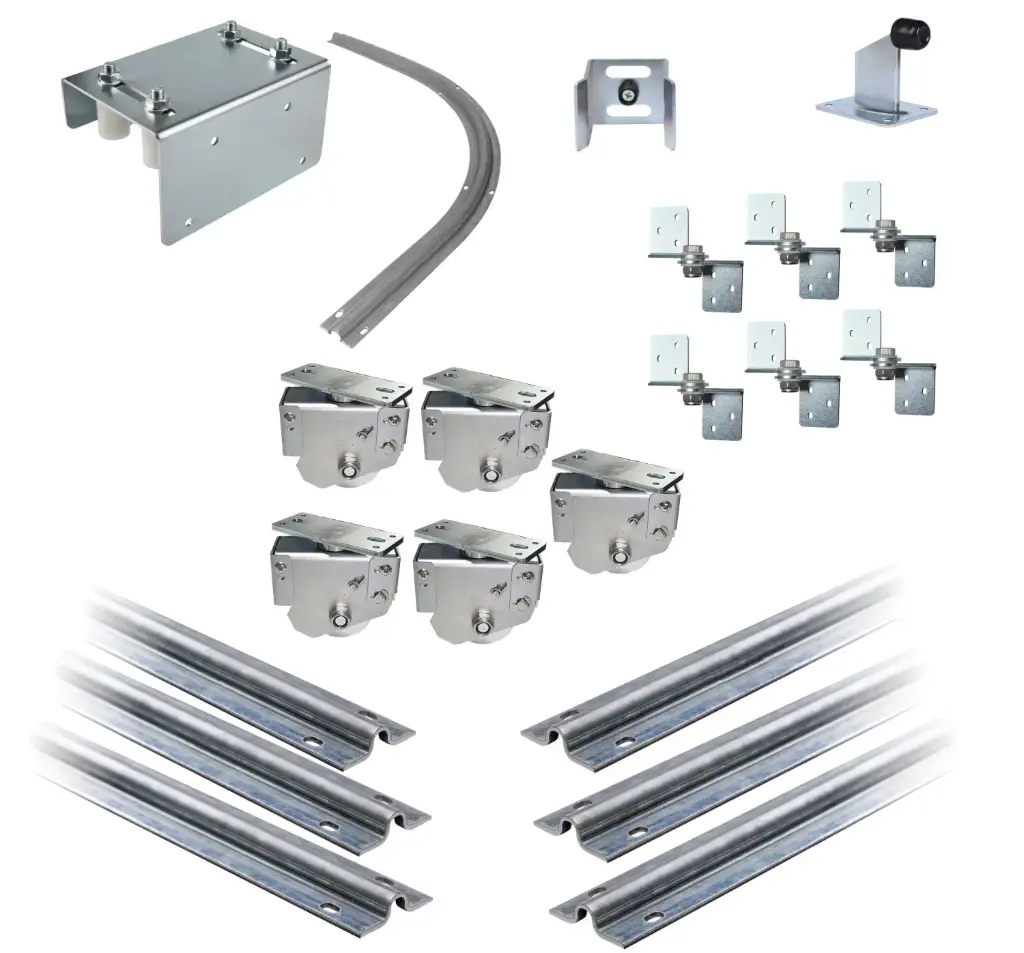

Complete Radius Turning Sectional Sliding Gate Hardware Package Kit
Kit Part No:
SGHK-TURNV3SL-KIT
Spring Loaded Wheels
Please view the "Kit contents" tab to selectively adjust the configuration according to your requirements. The default configuration of this package is 1x SLM panel (Two Wheels) and 3x SLS panels (one wheel each) (total four panels) with a total of 8 meters of track.
The solution to your sliding gate space problems The radius sliding gate kits resolve the issue when there is no space for a traditional sliding gate to open completely, The radius sliding gate package allows for the sliding gate panels (multiple sections) to turn and run in the same direction as the driveway.
With a pair of wheels on the first panel and a singular wheel on all other panels (linked together by the radius hinge) the sliding gate panels can be sized from 500mm each to a maximum of 1800mm each, it would be recommended to work on set panel lengths of 500/1000 with the Radius 340 track or 1500mm with the Radius 1000, these panel sizes best suit nylon gear rack (if automating).
With a pair of wheels on the first panel and a singular wheel on all other panels (linked together by the radius hinge) the sliding gate panels can be sized from 500mm each to a maximum of 1800mm each, it would be recommended to work on set panel lengths of 500/1000 with the Radius 340 track or 1500mm with the Radius 1000, these panel sizes best suit nylon gear rack (if automating).
Perpendicular Sliding Gate Motor Installation Example
Parallel Sliding Gate Motor Installation Example
Spring Loaded Radius turning sliding gate wheels
✓ Spring Loaded Wheel with 20mm Travel
✓ Pre-Load Adjustable
✓ 360° Turning Design with Ball Bearing
✓ R10 Track Compatibility
✓ Screw On Installation to the bottom of gate (No Welding)
Radius Gate Hinges
✓ Screw on directly to rear of gate panels
✓ Universal Left and Right direction hinge
✓ Universal Left and Right direction hinge
Radius 340 Sliding Gate Track for turning sliding gate
✓ Ready to go around the corner, turning sliding gate track for 500mm/1000mm panels
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ R10 Profile
✓ Available in Kit Contents the option to choose radius 1000 for 1500mm width panels
Four Point Roller System
✓ FOUR 100x40mm White Nylon Roller rollers adjustable for gate thickness up to 110mm
✓ 3mm Galvanized steel bracket
✓ Ultra Wide 300mm wide fixing bracket
✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations
✓ 3mm Galvanized steel bracket
✓ Ultra Wide 300mm wide fixing bracket
✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations
145mm Height Sliding Gate Stop
The gate stopper is a crucial part to any sliding gate installation, the stop is installed at the end of the open position to prevent the gate from being opened past the normal open point which prevents the sliding gate from coming off the track (or out of the top guiding system.
✓ Rubber Bumper
✓ 145mm High
✓ 10mm stem and 6mm base steel thickness
✓ Rubber Bumper
✓ 145mm High
✓ 10mm stem and 6mm base steel thickness
