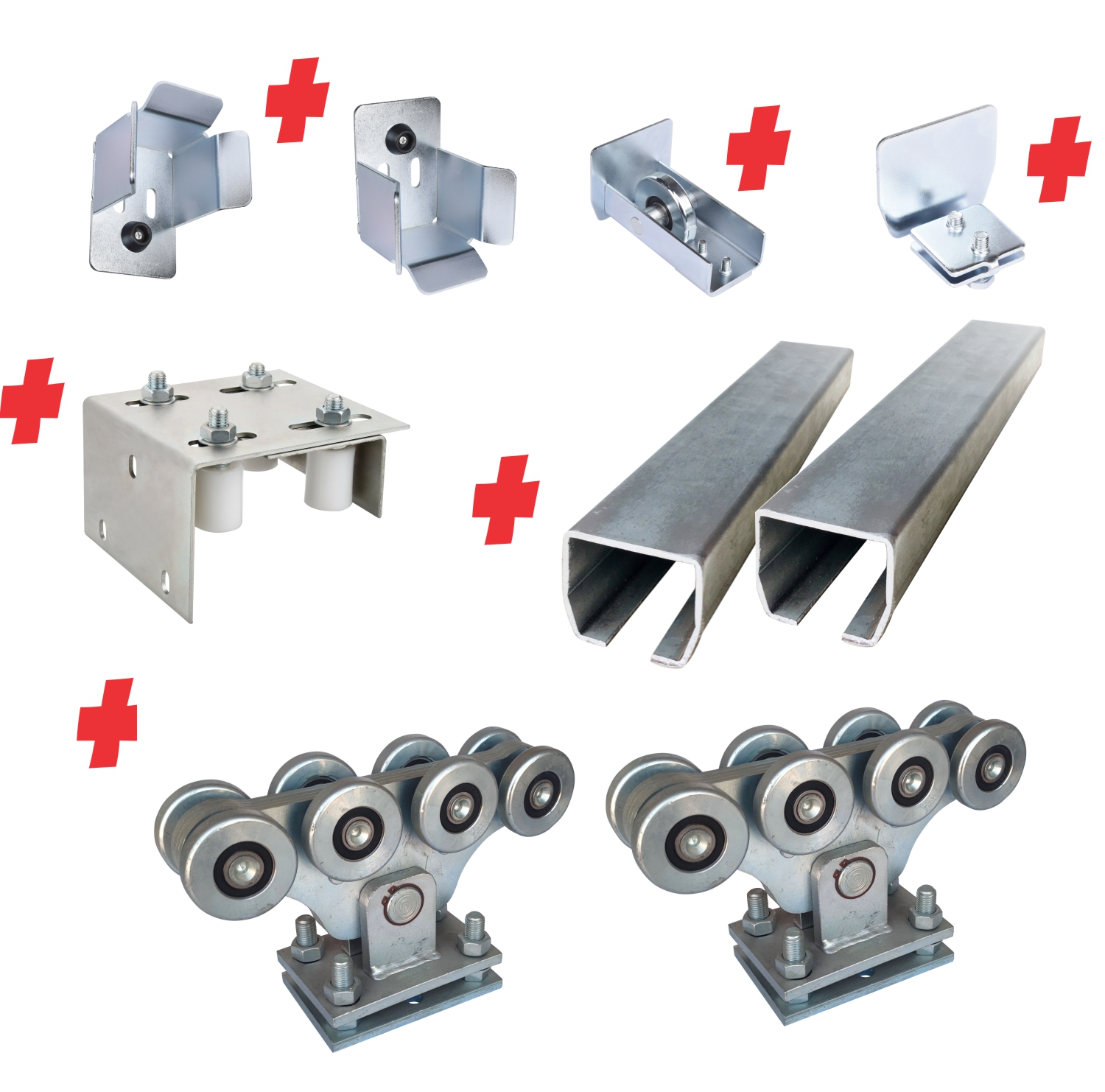

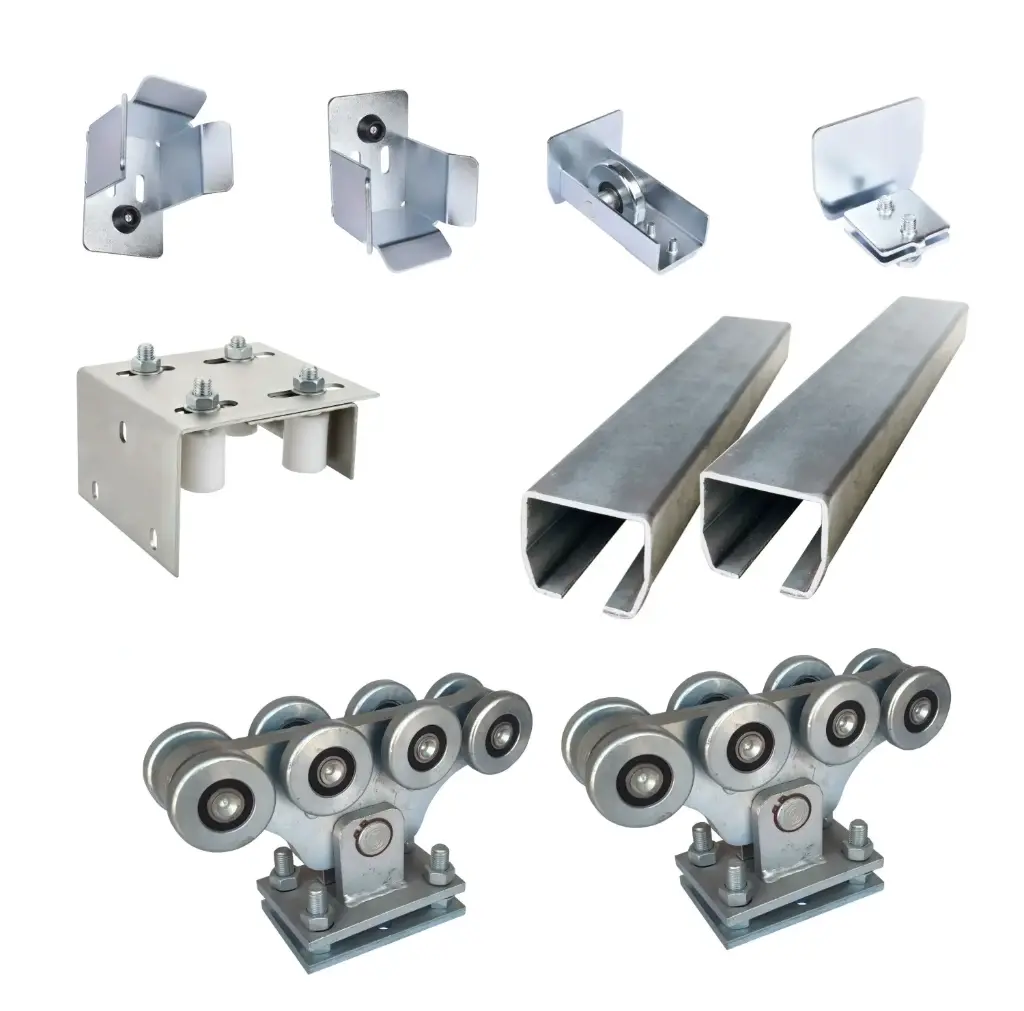

Complete Heavy Duty Cantilever Sliding Gate Hardware Kit (Heavy Duty)
The default allowance for the package is for a 4 meter gate opening (6m total gate), this can be adjusted in the kit contents to cater for your requirements.
8 Wheel Cantilever Gate System
The heavy duty cantilever sliding gate system allows for a balanced operation of a gate without the need for a typical ground track system and wheels, this is ideal for commercial setups that the ground track can be damaged by machinery or even residential setups where it may not be plausible to have a concrete strip footing across the driveway to levels or driveway finishing's.
The 8 wheel cantilever system is capable of a maximum driveway opening size of 5.8 meters (Total gate length Approx. 8 meters when including the tail) or 650KG gate weight (whichever comes first).
Typical guidelines
✓ The cantilever gate tail is 30% of the opening + an additional 700mm
✓ Ideal Height Should not exceed 1.8m on a 8 Wheel System
✓ A receiver resting point is installed on the post in the closed position for the gate to rest on whilst closed
✓Optionally an additional receiver resting point could also be installed at the end of the open position for the gate to also rest on
✓The system is supplied with a base plate for the carriage trollies to allow for adjustment and achieve level across the two sets

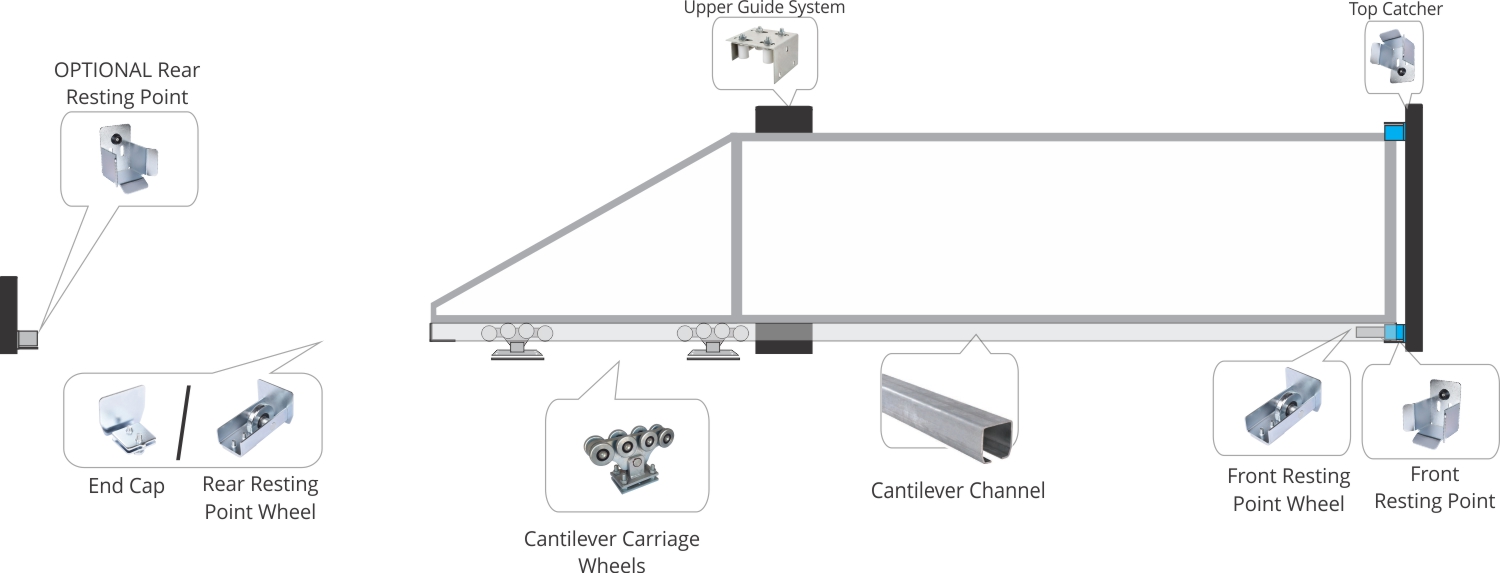

Installation Layout

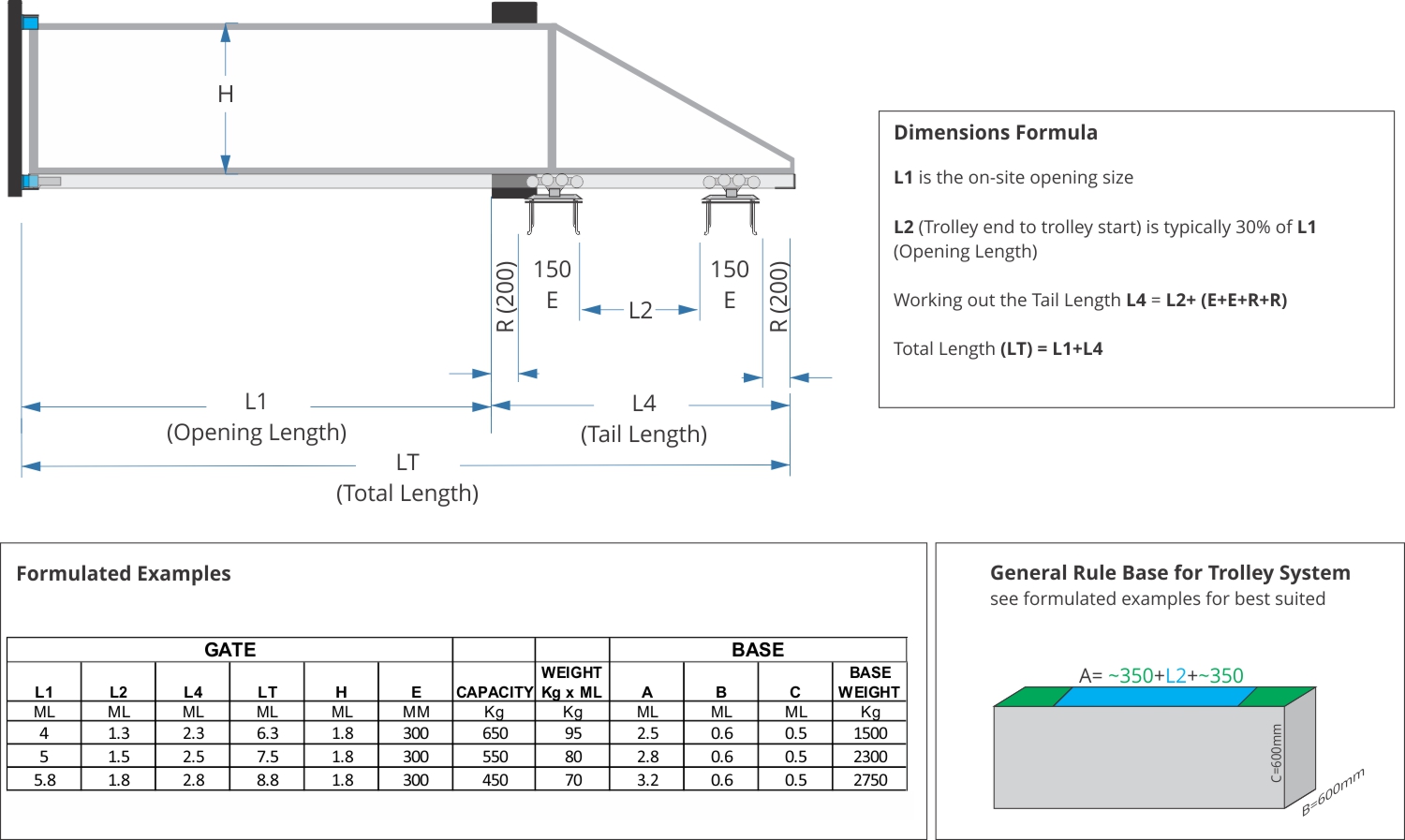

Calculations

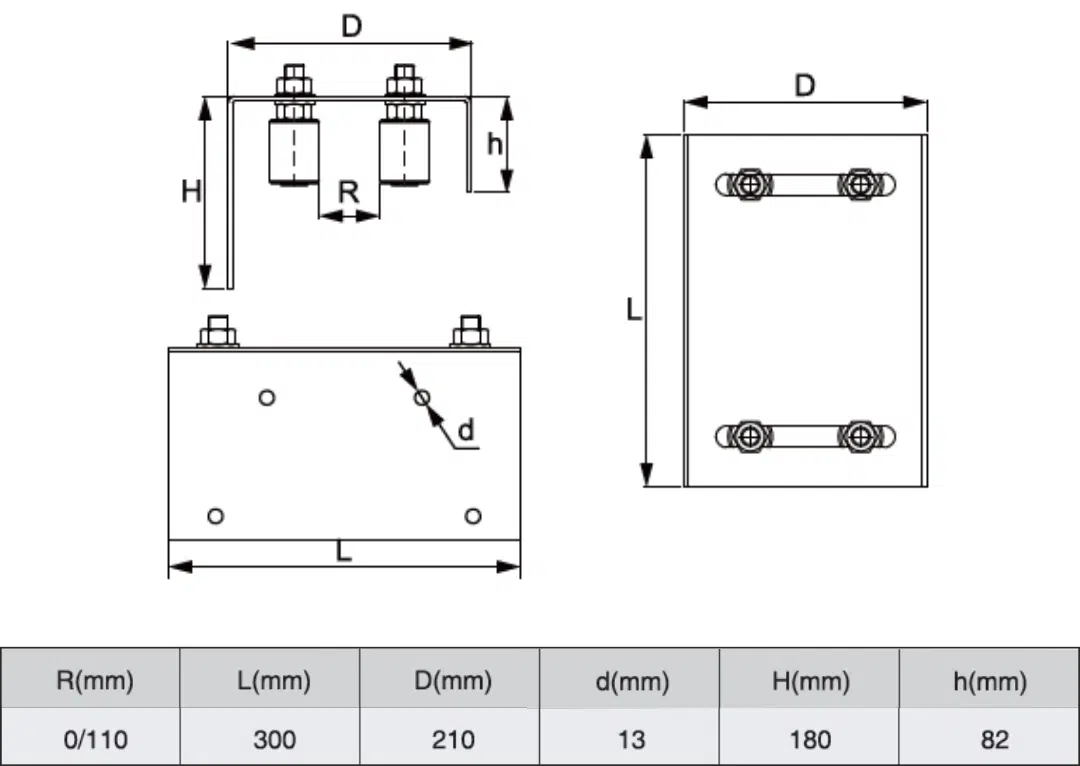

Four Point Roller System for Cantilever and all Heavy Gates
✓ FOUR 100x40mm White Nylon Roller rollers adjustable for gate thickness up to 110mm
✓ 3mm Galvanized steel bracket
✓ Ultra Wide 300mm wide fixing bracket
✓ Option to fix secondary plate (if used) by welding or drilling and screwing to post in tunnel style installations

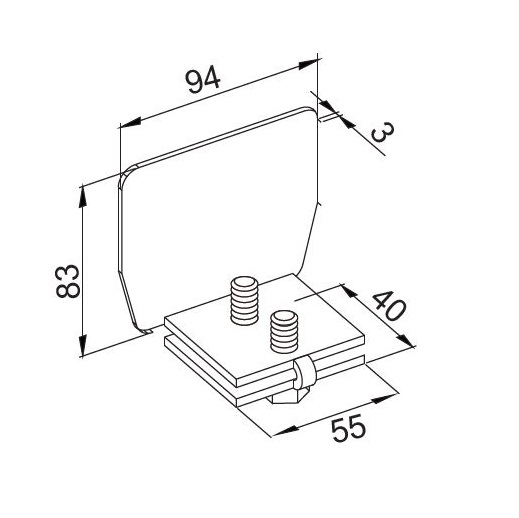

End Cap for C8MN Channel
✓ Clamps in place by tightening the two bolts
Guide Wheel for C8MN and C16M Channel
✓ Additional can be used for the open position (requires additional resting point bottom catcher)
✓ Clamps in place by tightening the bottom bolts
8 Wheel Cantilever Carriage
✓ Supports up to 650KG Max. Weight Gate
✓ Base Plate included for Leveling and adjustability

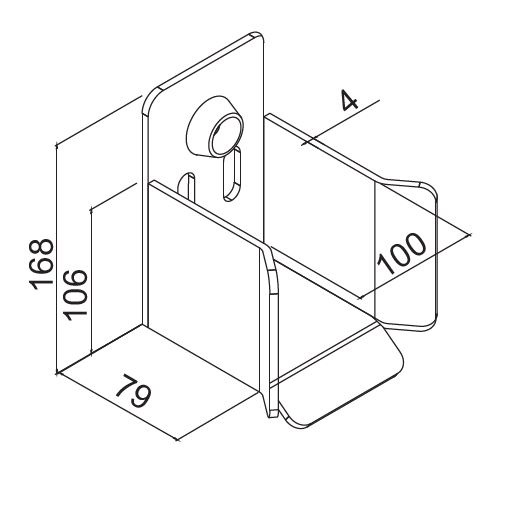

Resting Point/Catcher
✓ Resting point for Guide Wheel
✓ Used as the Top catcher position
✓ If using an additional guide wheel for the open position an additional rest point will also be required
Galvanized Cantilever Channel for C8MN and C16M Cantilever System
✓ Suitable for welding to the gate, screwing to the gate and other attachment methods
