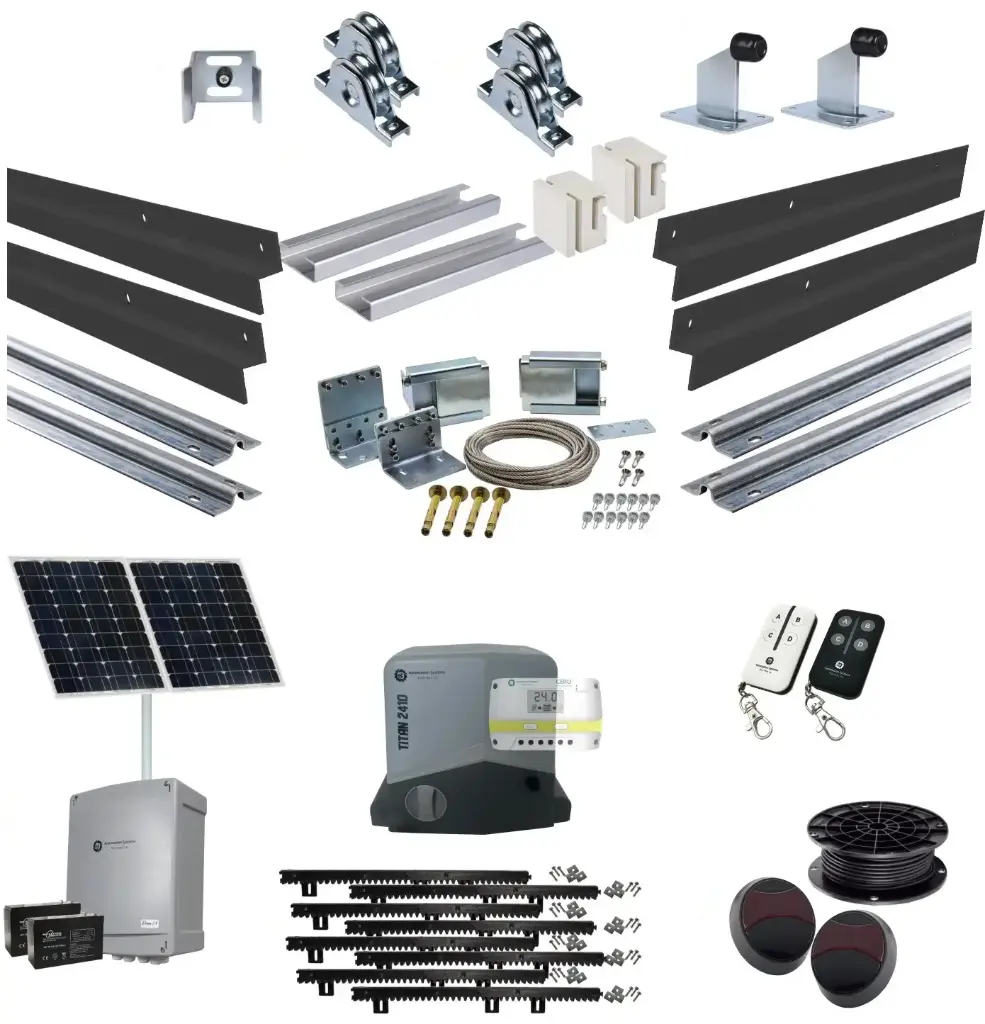

Complete Automatic Telescopic Sliding Gate System (Master and Trailing Sliding Gates) With Hardware Kit and Titan Solar Powered Sliding Gate Motor
| Operating Method: Remote Controls Only |
The default allowance for the package is 3.5 meters per gate, this can be adjusted in the kit contents to cater for your requirements.
Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH
The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).
The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.
When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate
The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.
The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).
Typical guidelines
✓ Primary gate width is half the opening +350mm minimum
✓Secondary gate width is also half the opening +350mm minimum
Ground Track
✓Primary gate requires floor track double its width
✓Secondary gate requires floor track double its width + half the driveway
✓A pair of wheels for each gate is required (total 4 wheels) Support
✓A support post on the inside BEHIND the primary gate is required
✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)
Facts about a telescopic sliding gate system
The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.
Typical Layout
Telescopic Sliding Gate Pulley System (Master and Trailing Sliding Gates) Maximum 4.5m/500KG EACH
The heavy duty telescopic gate allows for a primary and trailing gate configuration to eliminate the amount of space requirement in which the sliding gate opens to. The kit will create an interconnection between the primary gate (back gate) and the secondary gate (front gate).
The primary gate (closest to inside the property) will incorporate both the adjustable pulley systems in which both operate on sealed bearings, the secondary gate will have its own exclusive bracket fitted directly to it (supplied) in which it will connect to the primary gates stainless steel pulley wire.
When the primary gate is moved the secondary will follow, when the secondary is moved the primary will follow (manual operations). If automated using a sliding gate motor, all movements are initiated by the connected primary gate
The telescopic gate system can work with all sliding gate wheels thanks to the supplied low and high base plate system thus supporting IRM wheels (Internal recess mount) and EFM wheel (external flat mount wheels and in terms of the guiding system it can work with roller and bracket arrangements as well as nylon block and angle arrangements.
The cleverly designed pulley system allows for up to 25mm (1 inch) of adjustment from either end of the primary gate to allow for a correctly tensioned system in turn allowing for smooth operation, The system is capable of 4500mm (4.5 Meters) per gate and a maximum of 250kg per gate, typically the tail section of the sliding gate is 350mm minimum thus allowing for an absolute maximum opening of 8300mm (8.3m).
Typical guidelines
✓ Primary gate width is half the opening +350mm minimum
✓Secondary gate width is also half the opening +350mm minimum
Ground Track
✓Primary gate requires floor track double its width
✓Secondary gate requires floor track double its width + half the driveway
✓A pair of wheels for each gate is required (total 4 wheels) Support
✓A support post on the inside BEHIND the primary gate is required
✓A guiding system per gate is required (rollers and bracket OR nylon block and channel)
Facts about a telescopic sliding gate system
The secondary gate will move at twice the speed of the primary gate, essentially the load is at minimum doubled to tripled when automating, always use a higher specification DC motor such as the Titan 2410 (1000kg Capacity) DC sliding gate motor is strongly suggested for automation due to adjustable speed characteristics and slowdown smoothness and adjustment.
Typical Layout
C Channel Section with Nylon Block
Aluminum Z Profile Angle for Rear Guiding by Nylon Block
✓ Compatible with all gate using 40mm tubing or greater
✓ 4mm Aluminum Extrusion Profile Specific for use with sliding gate guiding
✓ 36mm Mounting face with 6mm pre punched holes for fixing every 300mm
✓ Total offset of 30mm from gate back face to the back of the angle
Gate Catcher/Receiver Meeting Point
Multiple options available to choose from based on the gates total thickness including and cladding material if applicable. It is recommended to use a gate catcher that is 10mm greater than the gate thickness. All catchers are available with offset brackets allowing for closing behind a post (as opposed to up to a post).
Sliding Gate Wheel Options
Internal Recess/Flush Mount Wheels
Internal Double bearing wheels allow the gate wheels to be recessed into the bottom of the gate frame (minimum height 78mm tubing), they keep the gate close to the ground track system (normally within 25mm) and provide the neatest aesthetic. The small pocket cut into the bottom of the gate is not greater than the 78mm wheel diameter and allows the flange points to meet with the tubing on either side and screw into place.
External Surface Mount Wheels
The easiest to install, these bearing wheels screw directly to the bottom of the gate tubing without any need for cutting, the external surface mounting wheels typically raise the gate 90mm from the ground track system.
Sliding Gate Ground/Floor Track
✓ Galvanized Steel
✓ Elongated 6mm holes allow for adjustment before final tie down
✓ Suits all R10 gate wheels
Gate Stopper
✓ Rubber Bumper
✓ 115mm High
✓ 8mm stem and 4mm base steel thickness
Titan 2410 Ultra Fast 24 Volt Sliding Gate Gate Motor
The Titan 2410 Sliding Gate System is built around a compact form factor yet utilizing the space for a large 180 Watt 24V DC motor delivering an unparalleled capacity of up to 1000KG gate or up to 8 Meters in length (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab).
Clever engineering allows for the system to work in a Ultra Fast and controlled operating speed with the allowance to be reduced to a normal or even slow running speed if required. The housing is formed from die-cast alloy with a steel pinion gear and all internal mountings are of steel to provide the best physical strength both inside and outside and the peace of mind of a long service life.
Keeping it reliable and dependable the Titan series operator uses trusty micro switch limit system allowing for the added bonus of a simple (and effective) installation. Housed within the Titan system the Premier SL24 Automatic gate system controller comes standard with a state of the art feature set catering for all types of installations, whether only requiring ordinary residential operation to all the way up to a full fledged commercial setups requiring advanced logic principals taking advantage of the high 90% duty cycle ability.
The on-board display makes easy work of any settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible with the Premier SL24 system (see the complete list below).
Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property.
The installation process is always kept in mind allowing up to 4 cable inputs into gate motor housing using IP68 cable glands, this allows for the best weather proofing and assists in insect proofing.
Key Features
✓ Die-Cast Alloy Housing
✓ Compact Footprint
✓ Multiple Cable entries by IP68 rated Glands
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Flexible size and weight capacities
A peak inside the Titan Series Operator
Tough 180 Watt DC Motor and Digital Logic Controller
Steel Pinion and Easy Limit Switches
Secure yet Easy Manual Release
Automatic Gate System Logic Controller Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Open partially Pedestrian Mode Feature (adjustable distance)
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for sliding gates that open towards an obstacle such as a pedestrian gate..
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
Dimensions
Automatic Sliding Gate System Specifications
| Operating Voltage | 24V DC Via Solar Regulator |
| Maximum Gate Size | 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab) |
| Maximum Gate Weight | 1000KG |
| Duty Cycle | 90% |
| Thrust | 27nM |
| Speed | Adjustable up to 36cm/s (21 Meters per minute) |
| Standby Consumption | 40mA |
| Supports Battery Backup | Yes, 24V DC |
| Light Support | Yes, Warning Light |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 250 |
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect
Battery System
Supplied with an external Dual DEEP CYCLE battery system 24V 15aH system as standard in a SLIMLINE Waterproof and Dust Proof Rated Enclosure (IP67 Cable Gland Supplied), there are a total of THREE battery capacity options available.
Option 1 (Premier 24-15B): The 15aH Deep Cycle setup allow for up to a two and a half weeks of usage without any charge from the solar panel in a typical residential installation of 10 cycles per days (whilst factoring in standby power), this is the ideal choice for areas that may see a consistent week of poor weather poor weather through winter without sunlight. This is great choice VIC, NSW, SA, ACT, TAS, QLD, NT and WA.
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 4 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor
upgrade for wiring on one side only
