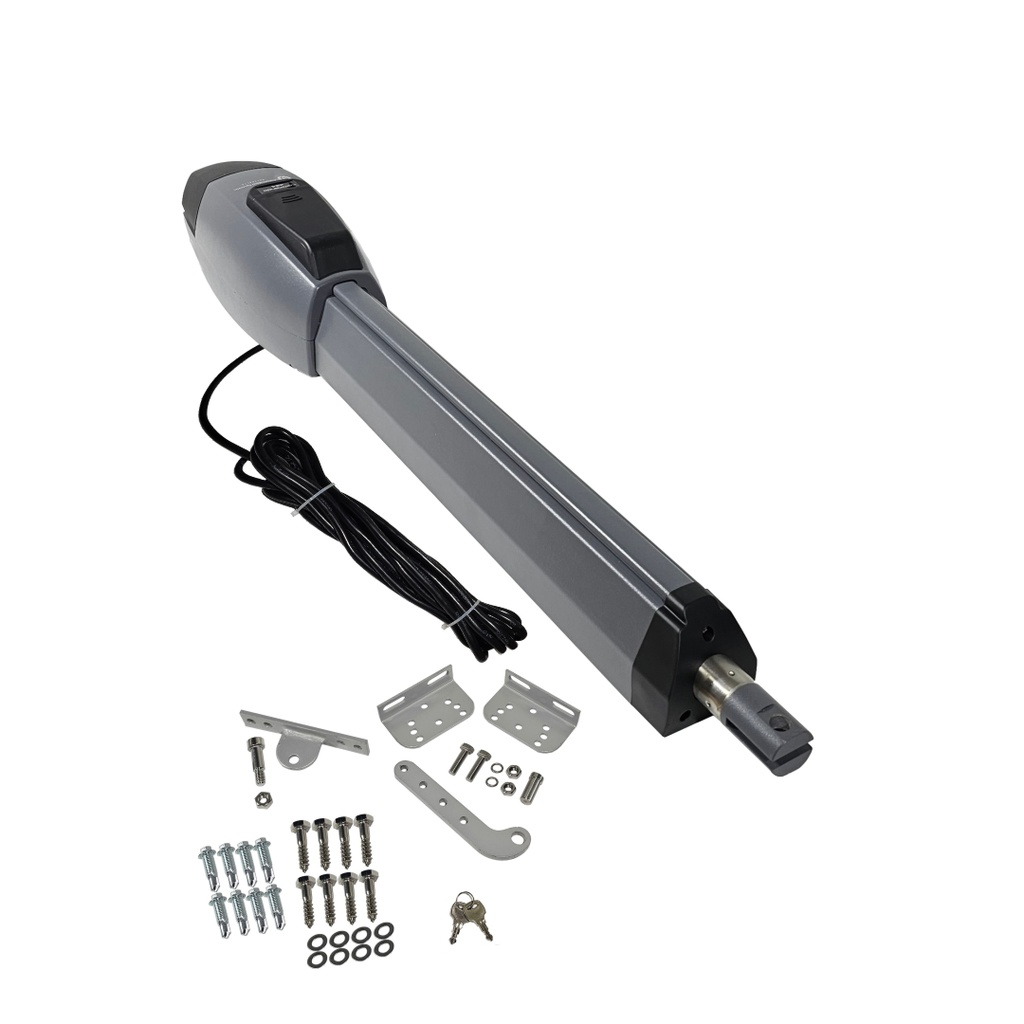

Commando 624 24V Automatic Driveway Electric Gate Linear Actuator with 10 Metre

The Commando 624 SUPER DUTY Long Stroke Linear Actuator kit is a robust automatic driveway gate motor constructed from a solid Die-Cast Alloy housing along with a solid die-cast and brass inner spider gear design. It operates Quickly and Quietly thanks to the low noise and 90% duty cycle 24 Volt DC motor system. The driven nut (also brass) is attached to stainless steel piston with its end positions set by easy to adjust limit micro switches for both the open and closed positions.

 Absolutely no compromises or shortcuts are taken with the Commando series with its piston assembly consisting of a 33mm CNC alloy machined gate connection, a 31mm stainless steel piston, a 35mm brass driven nut, a 19mm (3/4") worm drive on the DC motor and then a 19mm (3/4") lead screw for the piston assembly to travel on. This gate actuator is built for a lifetime of use.

 The laser cut steel brackets for the gate and post cater for all installations allowing for up to 16 different mounting configurations to achieve the desired pivot geometry for either pulling inwards to open and also pushing outwards to open installations. The post bracket assembly consists to three parts, the top and bottom plates are 4mm thick each whilst the curved tongue is 8mm thick.

The total thickness of the post bracket assembly when assembled is an outstanding 16mm. The Commando 624 has a 600mm stroke and the ability to work with gates from as short as 1.2m and as wide as 4.6m (15ft) with a maximum weight of 450kg, if a short gate is installed please also consider see the Commando 424 with a stroke length of 400mm.

✓ Fast and Quiet Operation
✓ 100% Die-Cast Alloy Outer Construction
✓ Die-Cast and Brass Inner Spider Gears
✓ 19mm (3/4") DC motor Worm Screw and Actuator Lead Screw
✓ Stainless Steel Piston with Brass Nut and CNC Alloy Gate Connection

✓ Open and Closed Position ADJUSTABLE micro switches with In-Built controller-Only Two Wires Back to Gate Control Box
 ✓ Secure Key Unlock Manual Release System
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable
