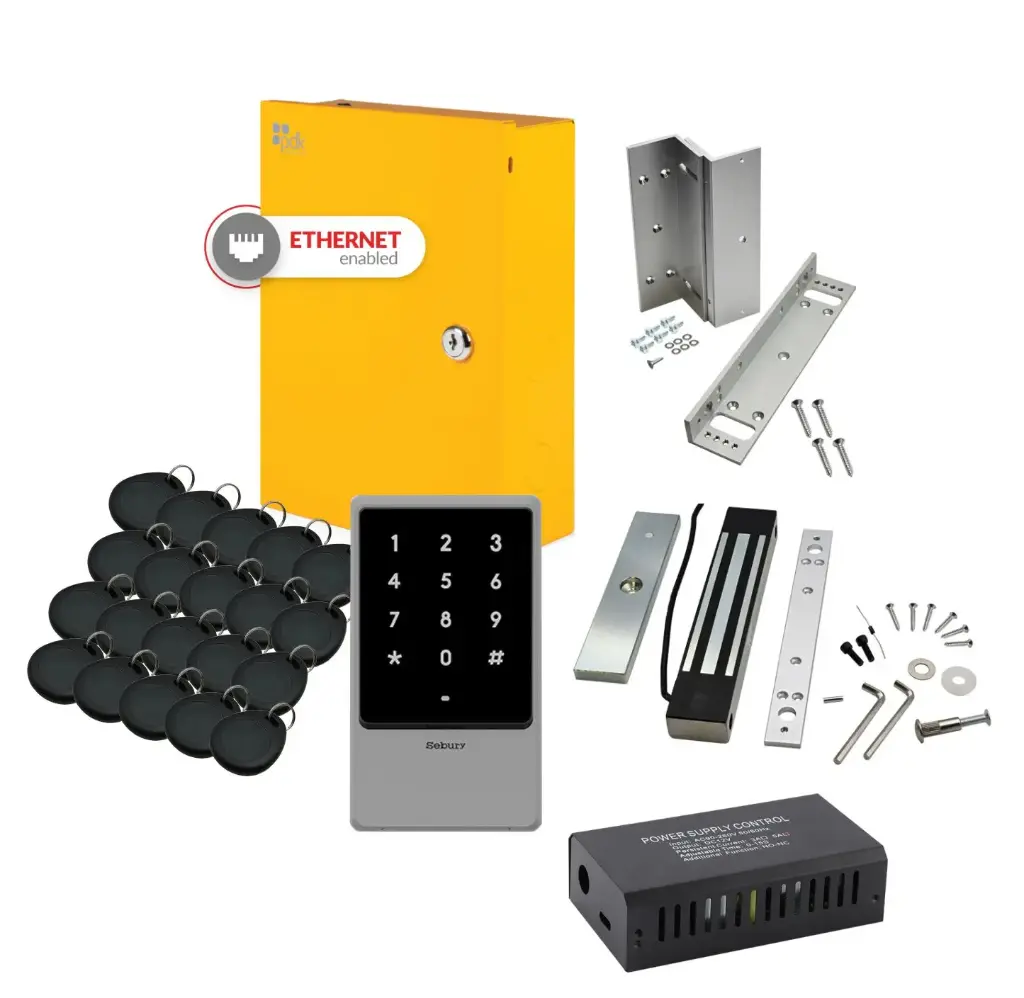

Cloud Based Commercial Grade One Door Access Control System (Magnetic Lock)

Introducing Pro Data Key, the worlds #1 cloud managed access control system. PDK systems are suitable for applications ranging from high security complexes, schools, multi Tenant applications, storage centers, air bnb, gyms employee management, with elaborate privilege's and tracking of users and personnel along with real-time user management and reporting all from the mobile APP.

PDK Systems are 100% Scalable, you can start with your fundamentals for doors/gates on-site and continue to add additional door controllers as the scope grows.

PDK Systems all begin with a cloud node.  A cloud node is the gateway between the door control and the access management. A cloud node always connect via ethernet cable to the sites network switch and router.

Keeping with the scalability design a cloud node allows for connection of one door management directly meaning outside of the control devices the only item required for a single door control is the cloud node itself. Each individual door to be controlled incurs an annual subscription fee thus keeping costs to the minimum required for each project.

How do door controllers communicate with the system?

Door controllers can work in two different ways:

1. Connect back via ethernet cable to the network switch.

2. Connect via wireless communications to the cloud node.

To communicate wirelessly to the cloud node both the door controller requires the wireless add on and the cloud node must be the RCNEW version.

Other Notable System Features

✓Remote troubleshooting
✓Instant System Alerts
✓Auto open Rules
✓Local storage of rules and users in each door controller incase of network or subscription issue

Connections

Each door controller has its relevant keypad or card reader connected directly back to it along with REX buttons, and the striker/magnetic lock. If only controlling the one door it connects back directly to the cloud node.

Adding additional door controllers

Door controllers are available in multiple configurations such as pedestal gate controller (a keypad + rain hood with a door controller built in for gooseneck posts), Two door, Four Door and Eight Door controllers along with a gate controller which is a one door controller in a waterproof enclosure.

Door controllers are normally fitted centralized to all the doors to be managed allowing for decreased cabling (and labour).

Door controllers always require a 12V DC power supply which is not included with the exception of the Eight door controller.

What is the maximum distance for wireless door controllers?

Open air communications allow for up to 150 meters, this is of course not factoring losses though walls, doors, etc.

✓Using the PDK wireless repeater enhances and increases the distance up to 1.6 Kilometers (line of sight outdoors) and up to 140meters (indoor) making this solution a state of the art long distance access control system .

Integrations and Automations

Integrations and automations

Allowing trigger events to manage your PDK can be done through Zapier and an approved application such as:
✓Gymflow,
✓Acuity
✓Simplybook
✓Optix
Further information can be found via the Zapier integrations website: https://zapier.com/apps/prodatakey/integrations

PDK Cloud Node

The PDK Cloud Node allows for the connection to the internet via an ethernet cable to the network switch/router.  Any subsequent door controllers also need to be wired back to the network switch/router by ethernet cable.

The cloud node has the inputs and outputs for one door control of a magnetic lock, electric striker or automation applications.

It supports REX buttons along with Wiegand card readers/keypad and also higher level security OSDP devices.

sTouch2 Keypad with Card Reader

1.Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad

2.125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards

3.The backlight can be set to normal ON, normal OFF or automatic mode

4.Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected

5.Reader mode: wiegand output, LED and Buzzer control input

6.Fully potted process, IP68

Specification

Material: Zinc Alloy+ Reinforced Glass

Input Voltage:DC12~24V

Idle Current:≤50mA

Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)

Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm

Output Format:Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.) Keypad: 4 bit, 8 bit, virtual card number

Working Temperature:-20~60° C

Working Humidity:0~95% (no condensation)

Product Dimension:145 * 83 * 26mm

PDK Two Door Pedestal Add On

PDK Door controllers are cloud based devices allowing for programmability of adding, deleting, and configuring users on the fly via mobile APP.

This device is an add on to build the system to support up to additional two doors. The Red Pedestal does not include the pedestal itself nor the reader but can work with most goosenecks and readers.

The TWO door controller connects to the system network either by ethernet cable to the network switch or wirelessly to a wireless cloud node (RCNEW). If you plan to connect wirelessly ensure to purchase the wireless add on for the door controller.

Lock Control Power Supply

This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.

Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike.

The lock control power supply can power devices continuously for a maximum of 3 Amps and with an allowance for a spike up to 5A (electric bolts and fail secure solenoid locks).

Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.

Supplied with a short battery harness (extendable) the power supply can utilize a 12V battery (typically a 7aH) for continued operation in a case of power outage.

Access Control Power Supply Specifications

Input Voltage	90-260V AC
Output Voltage	12V DC
Accessories Constant Voltage Terminal	12V DC
Max Current	5A Momentary, 3A Continuous TOTAL
Supports Battery Backup	Yes, 12V DC (F1 Terminal Harness - Short Length)
Lock Types	Fail Secure(NO)/Fail Safe (NC)
Exit Button Suport	Yes, Voltage Free N/O Momentary Contact
Exit Button Timing	Adjustable, 1-15 Seconds
Control Input	Yes, 5-30V DC Polarized
Operating Temperature	-10°-60°C

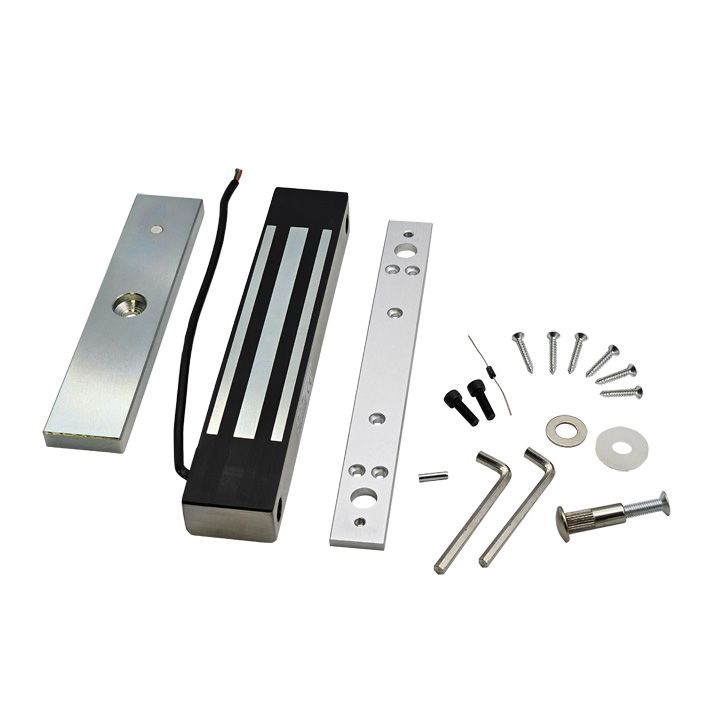

280KG Waterproof Magnetic Lock (12V DC)

The Fortress ML Magnetic lock has a hold ability of 280KG when energized, it can be powered by ONLY 12V DC. Magnetic locks unlike solenoid based locks will released when commanded to unlock by the control system even whilst under load making a magnetic lock an excellent option for most applications.

✓ Suitable for Small and Large Gates
✓ Suitable for Single and Double Gates
✓ Optional ZL and L bracket for mounting
