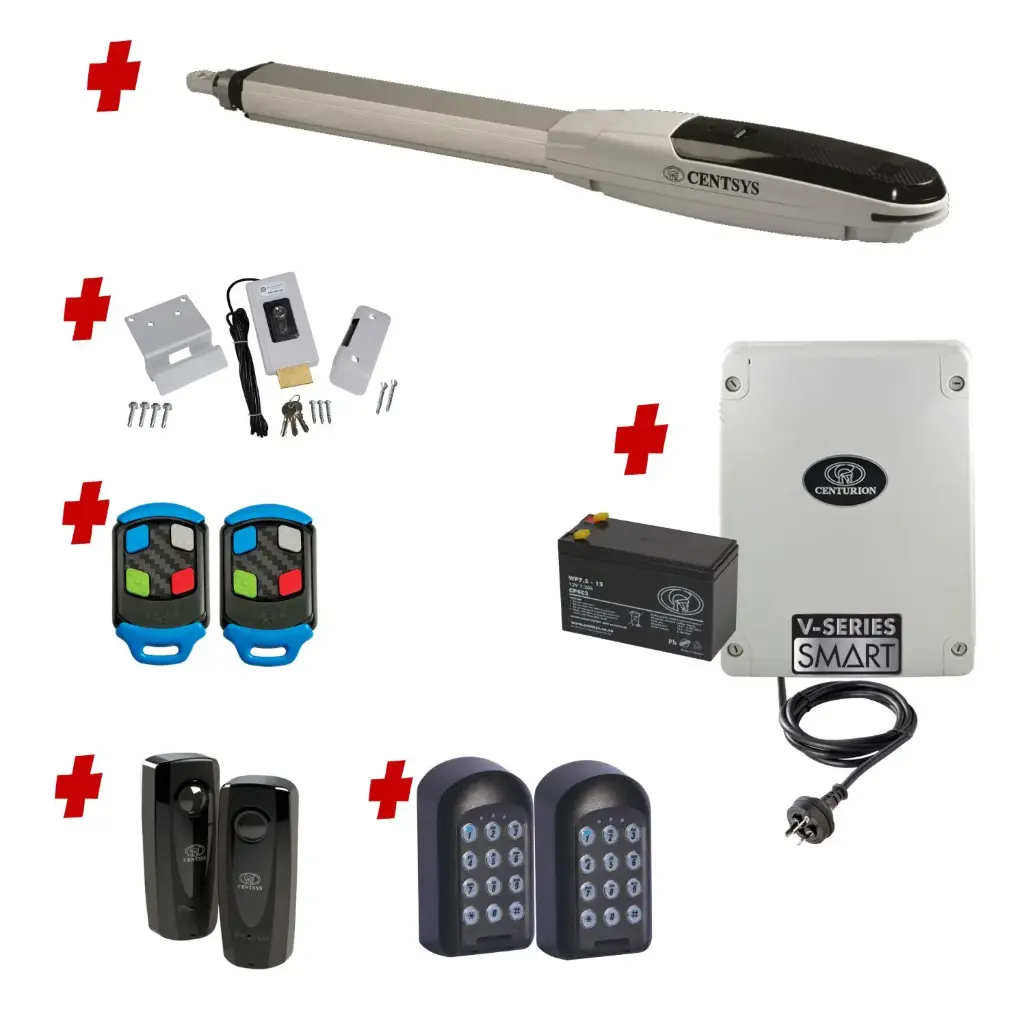

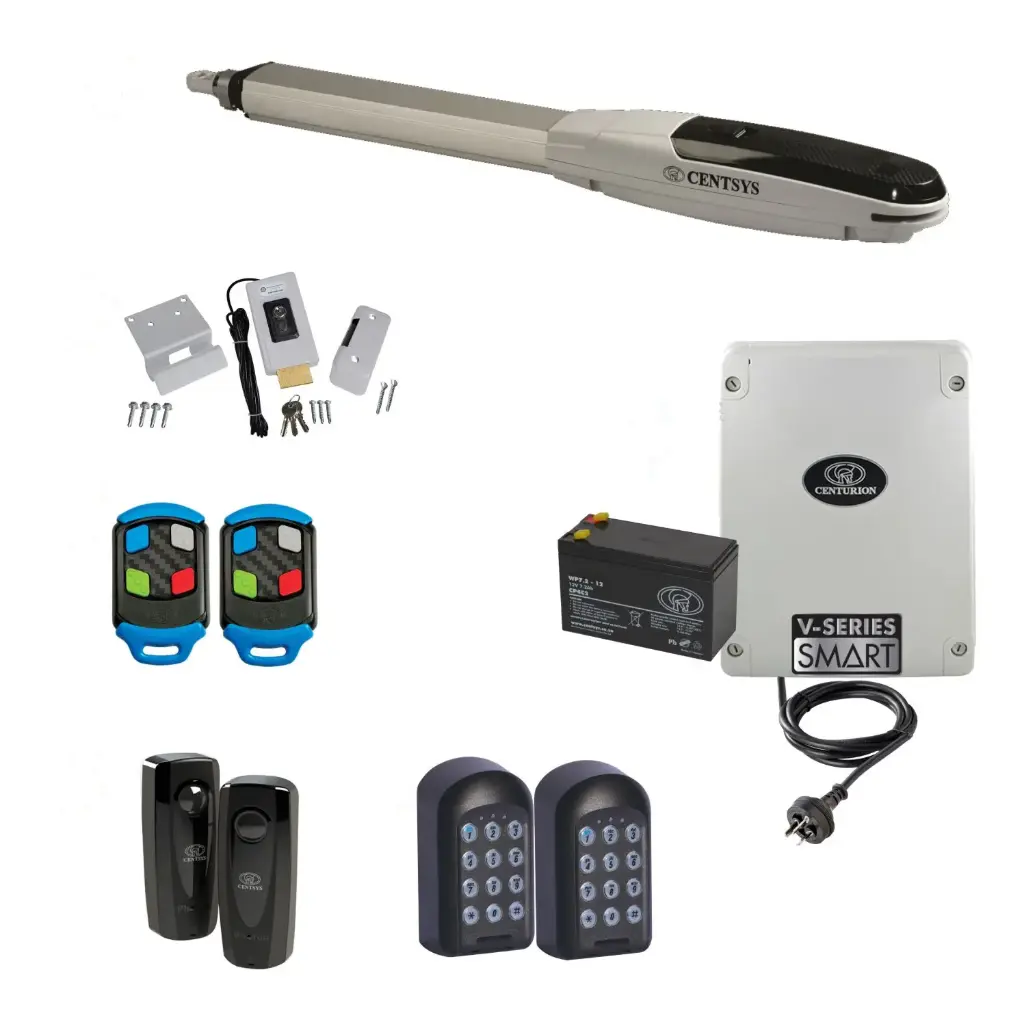

Centsys V500 Smart (240V) Single Swing Gate with TWO keypads and Electric Lock
Kit Part No:
V500-1S-P-AP
Long Stroke
| Gate Opener Brand: Centsys |
| Warranty: 2 Year |
| Swing Gate Thrust/Torque: 2500N |
| Model: V500 |
| Maximum Swing Gate Size (each): 4m/4.2m |
| Operating Method: Remotes & Pin Code Keypad |
Centsys V500
The Centsys V500 is a Higher push force gate operator in the 12V operating voltage range. When setup for inwards opening its origin clamp is used as the retracted open position stop point making it a simple to mechanically install operator.
Its high cycle capability allows for up to light commercial use of 50 cycles per hour with uninterrupted operation thanks to a Centsys standard battery backup system which is automatically charged whilst power is available. Being a installer grade product all post and gate bracket plates are included but do require welding together to suit the site specific geometry requirements.
Its high cycle capability allows for up to light commercial use of 50 cycles per hour with uninterrupted operation thanks to a Centsys standard battery backup system which is automatically charged whilst power is available. Being a installer grade product all post and gate bracket plates are included but do require welding together to suit the site specific geometry requirements.
Key Features
✓ SMART Controller (Complete configuration by mobile APP)
✓ South African Design
✓ Travel Encoder Based System
✓ Robust Heavy Duty Die-Cast Housing
✓ South African Design
✓ Travel Encoder Based System
✓ Robust Heavy Duty Die-Cast Housing
✓ Adjustable Origin Open collar for MAX. Full open position (pull to open)
✓ Universal Left or Right Side
✓ Support's inwards and Outwards Opening
✓ Universal Left or Right Side
✓ Support's inwards and Outwards Opening
SMART Control Board
All setup and settings are made completely by the smartphone APP via a direct Bluetooth connection
ROBUST
High strength Die-Cast housing for complete Uncompromised quality.
Collar Setting
MAX. Open position set by a simple mechanical collar.
Installation Requirements
Dimensions
.jpg?unique=d27dfb81)
V500 Specifications
Fortress EL Automatic Gate Lock
The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security.
Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
