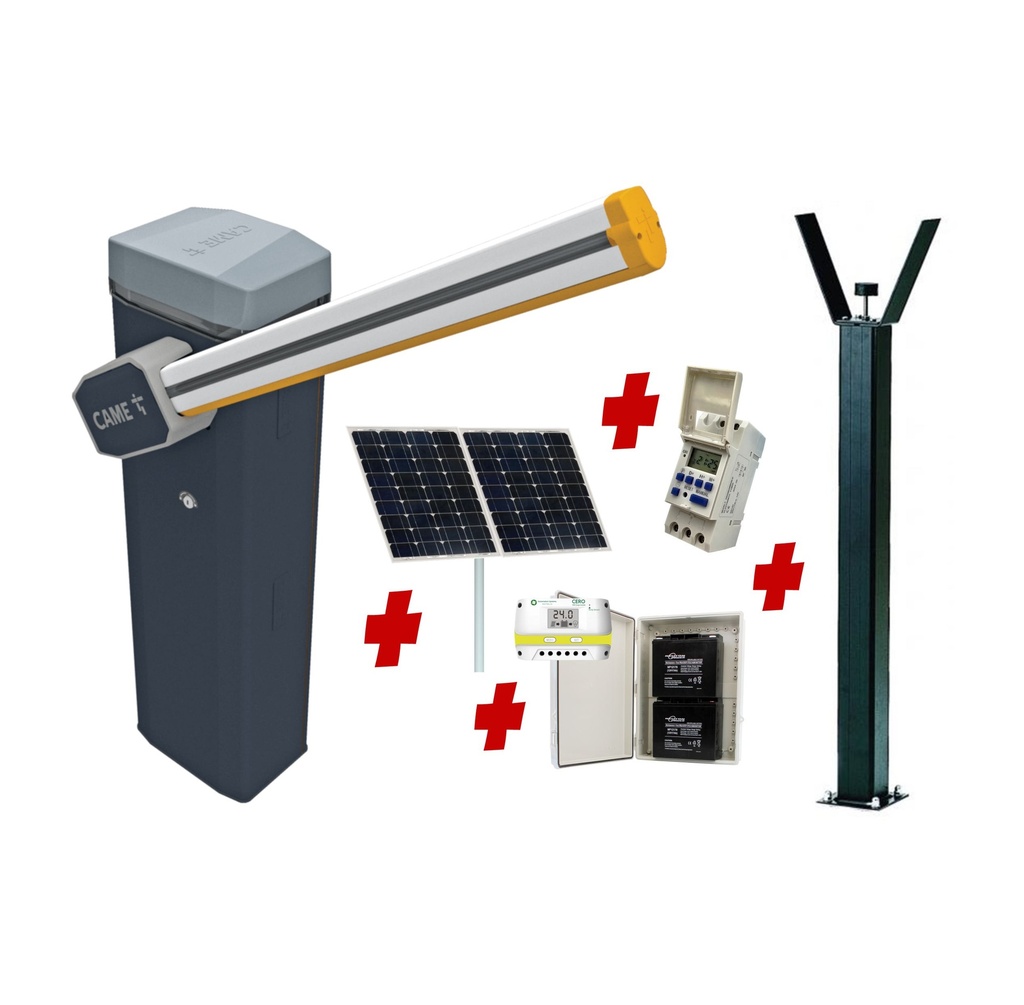

CAME Gard 8m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Cycle Parking Depot Yards Caravan Park offices with Weekly Timer
Kit Part No:
CAME-GT8-SA-SOLAR-WT
Bulky Item
| Boom Arm Type: Straight Arm |
| Boom Arm Length: Greater then 6M |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Scheduled Timer |
High Duty Cycle Italian Boom Gate System
At a Glance
Universal Left OR Right Side Installation 24V DC SOLAR System 190 KM/H Wind Rating Galvanized Steel and Powder coated Tested for 350 Cycles/Hour with over 3 million cycles Ultra Fast Operation within 6 seconds Easy to work on Control Board placement under the TOP cover Rubber Edging on the Bottom Side of the ArmCompatibility and Features
Supports Loop Detectors Supports WIRED and WIRELESS Keypads Supports Egress Press Buttons Supports Opening and Safety Detector Combo Digital Display for easy parameter and settings configuration Supports Skirt System to prevent unauthorized foot traffic Dual Voltage Feed for ultimate precision, control and braking function Supports Opening, closing and Safety Detectors Supports Battery Backup system (all internal)
Adjustable Automatic Close Time Internal Anti Tamper System (can also support a N/C Contact from alternative switch) Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits) Supports status warning, flashing lights and general area lighting systems Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports hold to operate mode Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master | Maximum Arm Length | 8m (Standard) |
| Minimum Arm Length | 6.1m (Cut Down) |
| Operating Time | Within 6S |
| Motor Power (Volts) | 24V DC |
| Torque (NM) | 300 |
| Average Life by Cycles | 3,000,000 |
| Maximum cycles per HOUR | 350 |
| Maximum cycles per DAY | 5400 |
| Operating Temperature | -20°C to +50°C |
Operators Overview
Manual Release
Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position.
Aluminum Arm
Operator Dimensions
Weekly Schedule Automatic Gate Timer
The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).
The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.
Key Features
✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Built in Battery to retain schedules, replaced every 2-3 years
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)
