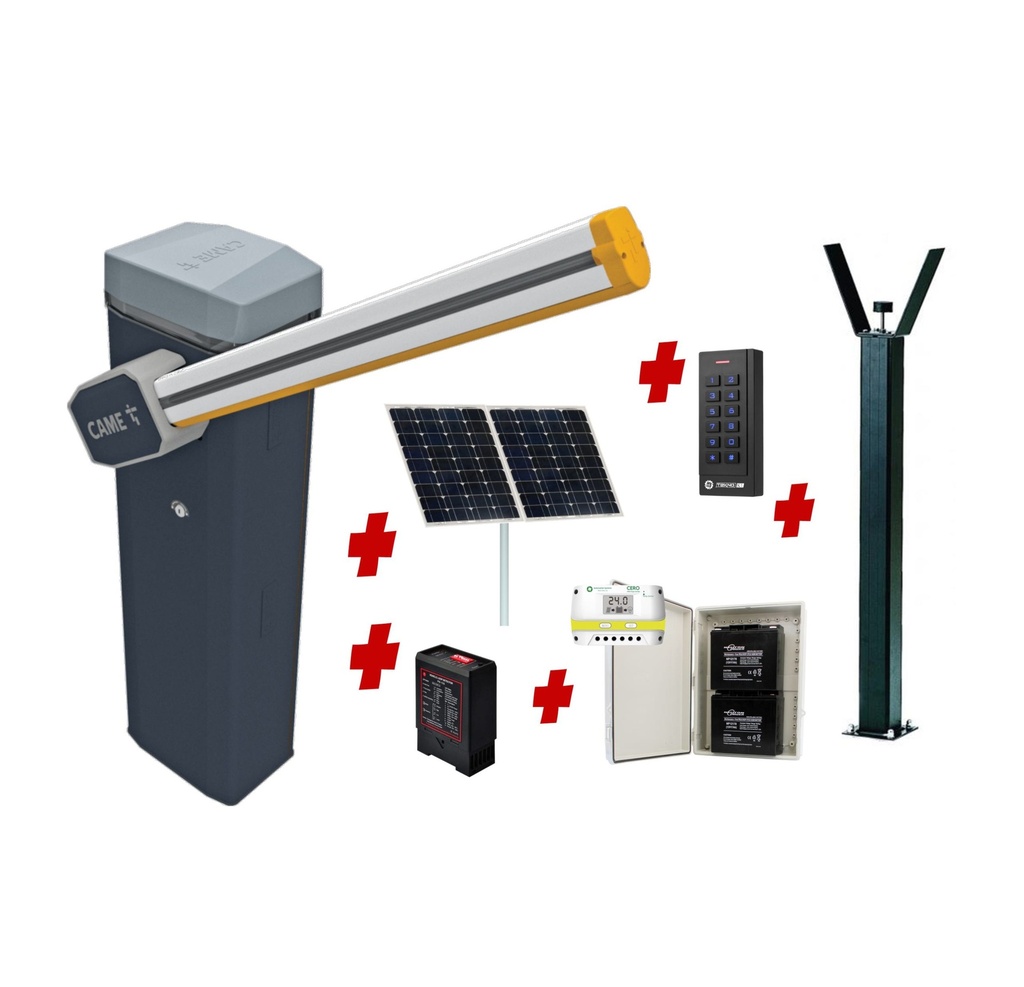

CAME Gard 8m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Cycle Parking Depot Yards Caravan Park offices with Keypad Loop Detector
| Boom Arm Type: Straight Arm |
| Boom Arm Length: Greater then 6M |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Keypad Entry and Exit Sensor/Loop Detector |
High Duty Cycle Italian Boom Gate System
At a Glance
Universal Left OR Right Side Installation 24V DC SOLAR System 190 KM/H Wind Rating Galvanized Steel and Powder coated Tested for 350 Cycles/Hour with over 3 million cycles Ultra Fast Operation within 6 seconds Easy to work on Control Board placement under the TOP cover Rubber Edging on the Bottom Side of the ArmCompatibility and Features
Supports Loop Detectors Supports WIRED and WIRELESS Keypads Supports Egress Press Buttons Supports Opening and Safety Detector Combo Digital Display for easy parameter and settings configuration Supports Skirt System to prevent unauthorized foot traffic Dual Voltage Feed for ultimate precision, control and braking function Supports Opening, closing and Safety Detectors Supports Battery Backup system (all internal)
Adjustable Automatic Close Time Internal Anti Tamper System (can also support a N/C Contact from alternative switch) Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits) Supports status warning, flashing lights and general area lighting systems Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports hold to operate mode Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master | Maximum Arm Length | 8m (Standard) |
| Minimum Arm Length | 6.1m (Cut Down) |
| Operating Time | Within 6S |
| Motor Power (Volts) | 24V DC |
| Torque (NM) | 300 |
| Average Life by Cycles | 3,000,000 |
| Maximum cycles per HOUR | 350 |
| Maximum cycles per DAY | 5400 |
| Operating Temperature | -20°C to +50°C |
Operators Overview
Manual Release
Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position.
Aluminum Arm
Operator Dimensions
Tekno K1 Weatherproof Wired Keypad
The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.
The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.
General Mobile APP users can also be managed in via the app (add/delete) if and when required.
Key Features
✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what's supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.
Induction Loop Detector
The loop detector in conjunction with the in-ground loop is used to automatically signal the system to open upon detecting a vehicle on the primary loop pad.
With the option for an additional Loop detector and its own loop could be used as a "presence" safety device to prevent the closing operation whilst a vehicle is still on the secondary loop pad.
Key Features
✓ Pulse and Presence Modes (5 min MAX. presence/Permanent presence)✓ Four sensitivity settings
✓ Four frequency settings (if installing multiple loops and detectors)
✓ Normally Open and Normally Closed Contacts
✓ Automatic Sensitivity Boost Upon detection (Ideal for large ground to chassis vehicles like trucks)
✓ Filter mode setting for interference prone environments
