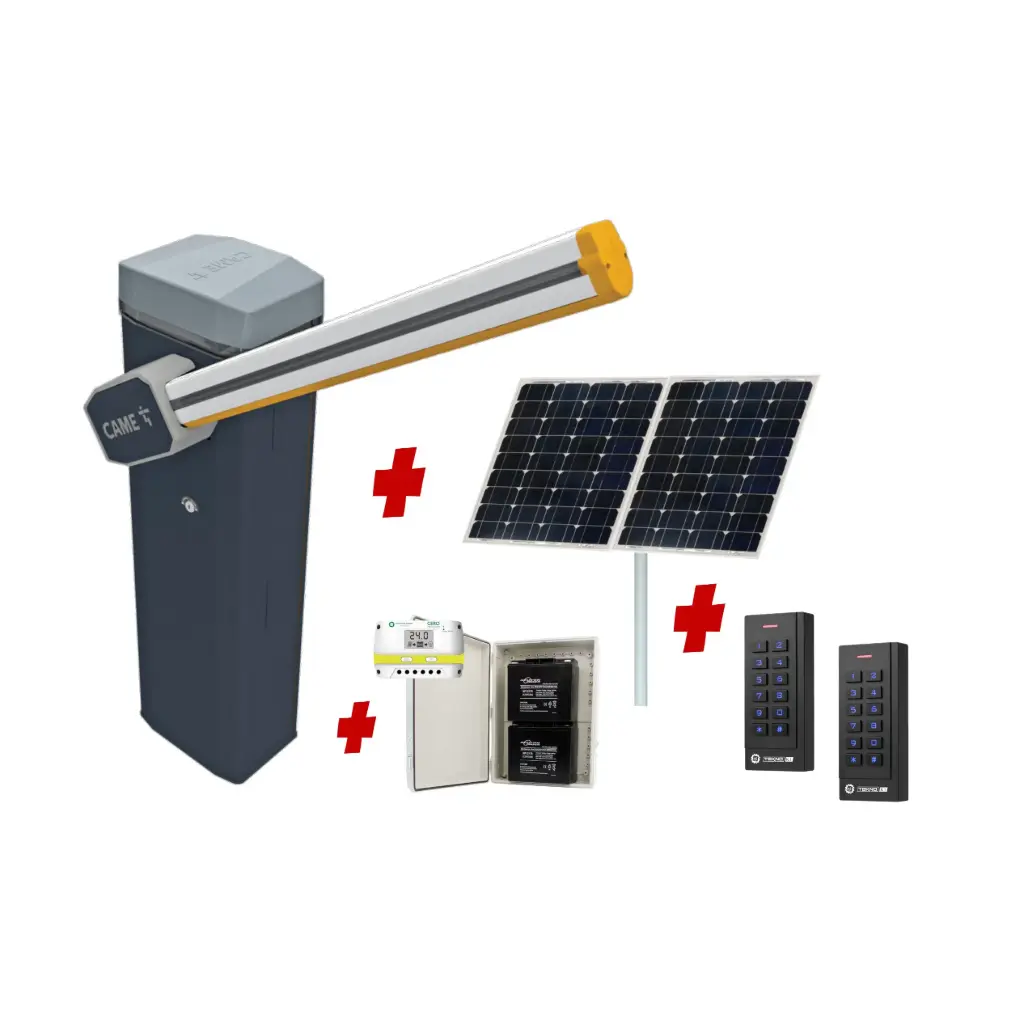

CAME Gard 4m Solar Powered Low Voltage Automatic Boom Barrier Gate High Duty Cycle Depot Yards Caravan Park offices with TWO Keypads Entry Exit
| Boom Arm Type: Straight Arm |
| Boom Arm Length: 6m or Less |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Keypad |
High Duty Cycle Italian Boom Gate System
At a Glance
Universal Left OR Right Side Installation 24V DC SOLAR System 190 KM/H Wind Rating Galvanized Steel and Powder coated Tested for 350 Cycles/Hour with over 3 million cycles Ultra Fast Operation within 6 seconds Easy to work on Control Board placement under the TOP cover Rubber Edging on the Bottom Side of the ArmCompatibility and Features
Supports Loop Detectors Supports WIRED and WIRELESS Keypads Supports Egress Press Buttons Supports Opening and Safety Detector Combo Digital Display for easy parameter and settings configuration Supports Skirt System to prevent unauthorized foot traffic Dual Voltage Feed for ultimate precision, control and braking function Supports Opening, closing and Safety Detectors Supports Battery Backup system (all internal)
Adjustable Automatic Close Time Internal Anti Tamper System (can also support a N/C Contact from alternative switch) Supports Open Only, Close Only, Open/Close and Stop Command inputs (Each are individual circuits) Supports status warning, flashing lights and general area lighting systems Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports hold to operate mode Supports one or MULTIPLE Photocells, reflective sensors or induction loops as safety devices with 8 different logic configurations Supports synchronization module to allow connection of a master and slave unit (RSE Cards) allowing for all accessories connection directly to the master | Maximum Arm Length | 4m (Standard) |
| Minimum Arm Length | 2m (Cut Down) |
| Operating Time | Within 6S |
| Motor Power (Volts) | 24V DC |
| Torque (NM) | 300 |
| Average Life by Cycles | 3,000,000 |
| Maximum cycles per HOUR | 350 |
| Maximum cycles per DAY | 5400 |
| Operating Temperature | -20°C to +50°C |
Operators Overview
Manual Release
Simple to use Manual Release system, simply insert the key and turn to the unlock position. Now you can push the arm up to the open position and turn the key to the lock position.

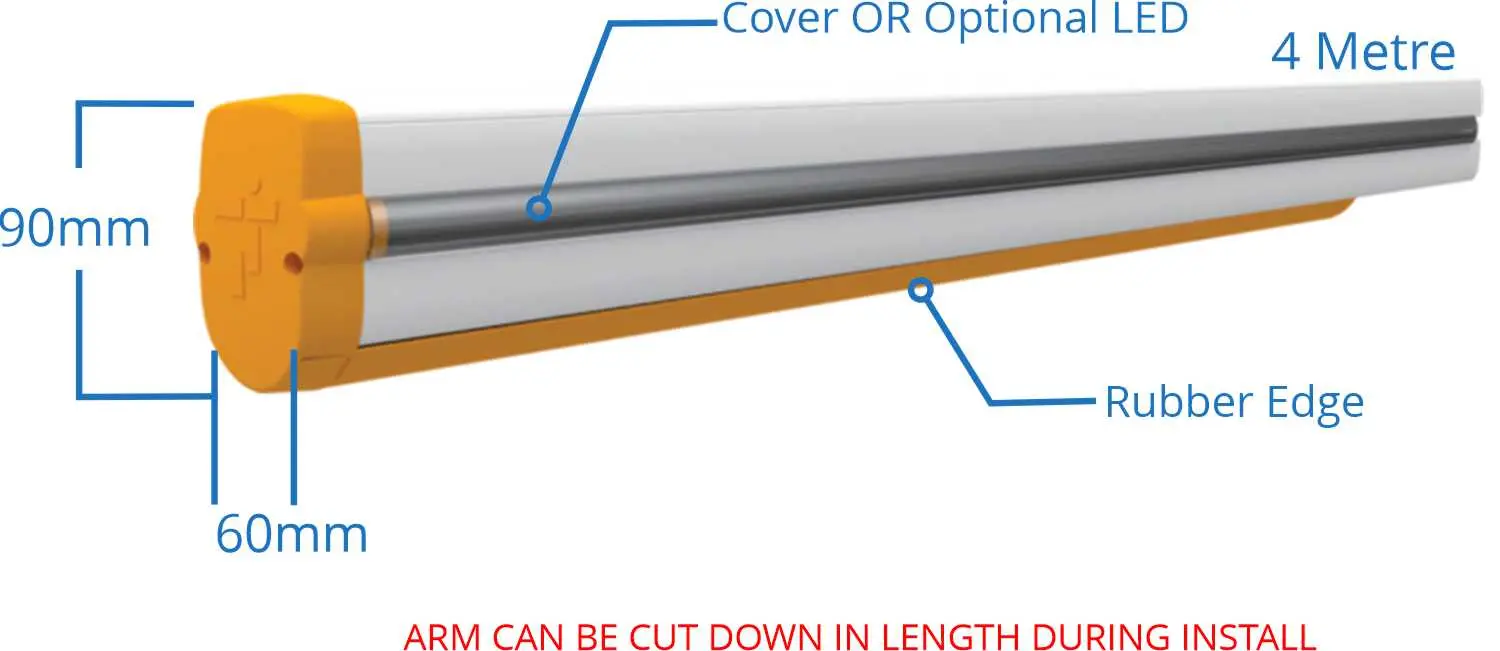

Aluminum Arm

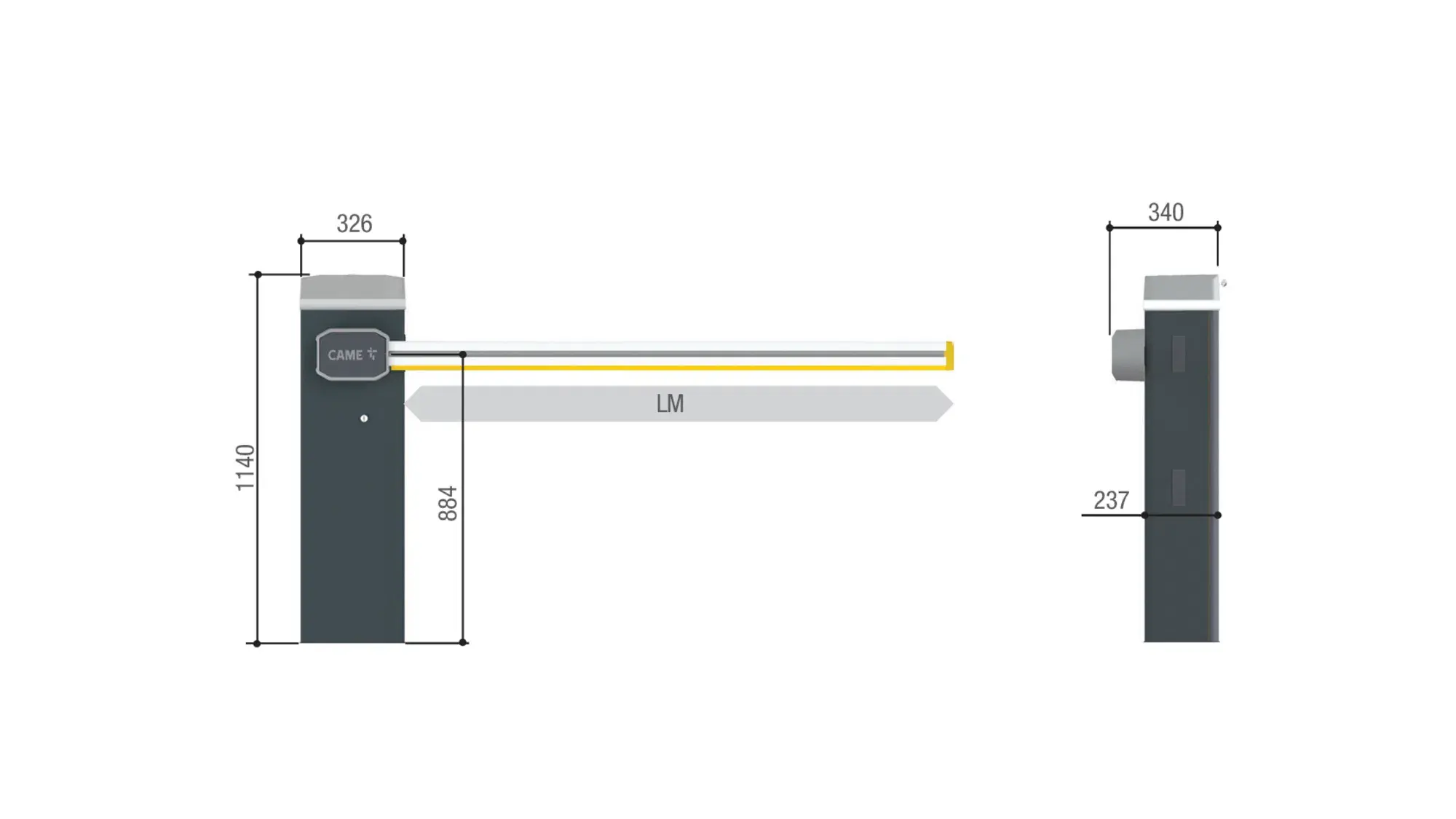

Operator Dimensions

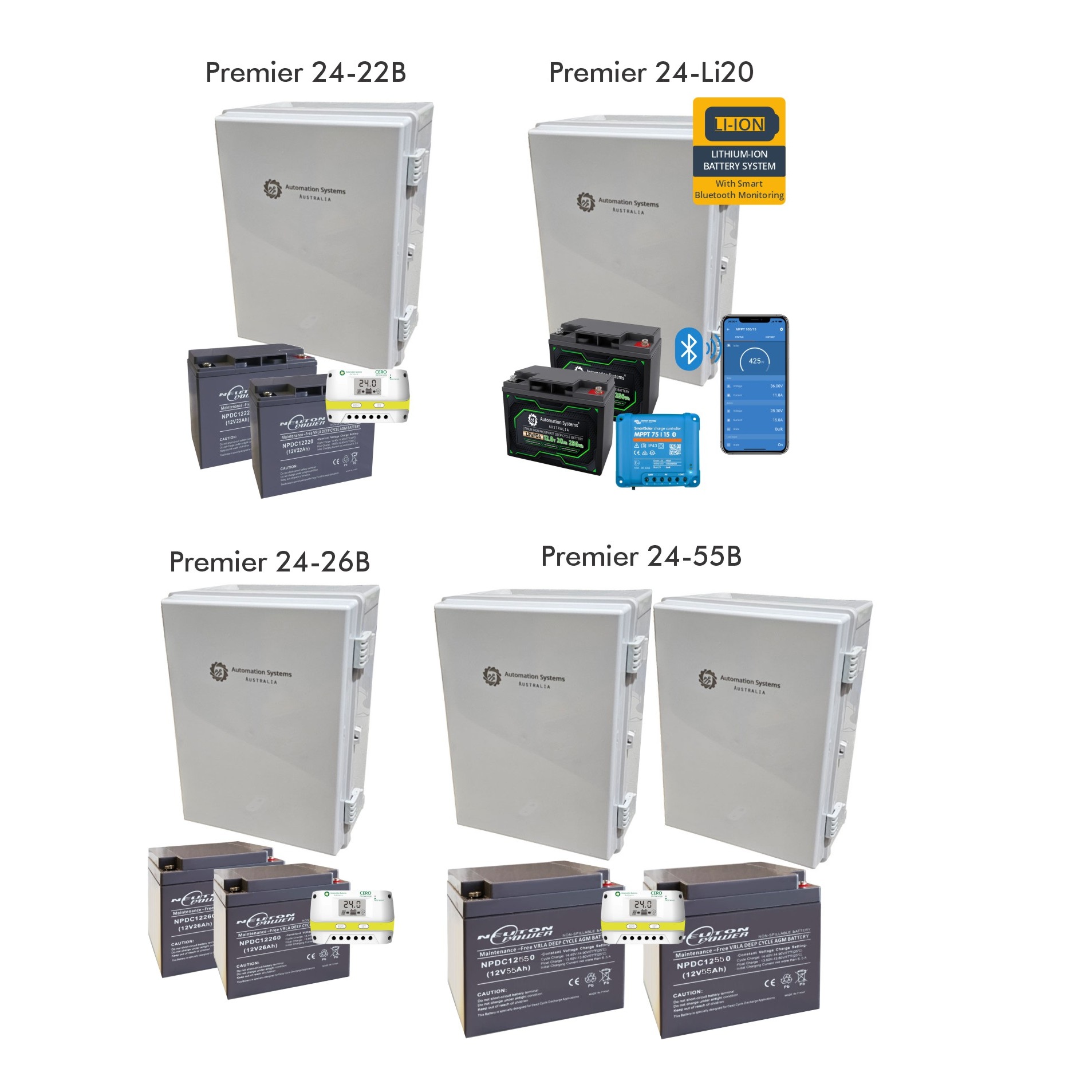

Battery System
Option 2 (Premier 24-22B): The 22aH Deep Cycle setup allows for well over three weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Light commercial usage.
Option 3 (Premier 24-Li20): The 20aH Lithium setup allows for up to three weeks in a typical residential installation of 10 cycles per day without seeing any charge from the solar panel (whilst factoring in standby power). Lithium batteries offer a longer lifetime than Deep Cycle batteries, so you get more years of service from the system. It is also fitted with a Victron Smart Charge Controller (MPPT), which lets you monitor the system from your mobile phone using the app. It can also support Light commercial usage.
Option 4 (Premier 24-26B): The 26aH Deep Cycle setup allows for well over four weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support Medium commercial usage of 10-15 operations per day for a period of approx. 2 weeks.
Option 5 (Premier 24-55B): The 55aH Deep Cycle setup allows for well over eight to nine weeks in a typical residential installation of 10 cycles per days without seeing any charge from the solar panel (whilst factoring in standby power). It can also support higher duty commercial usage of 60 operations per day for a period of approx. 1 weeks. It should be considered in these applications to upgrade the solar panel option to 180 Watts.
The allowances are general in nature and typically factor for a continuous period taking into account overcast and other poor weather conditions along with wet seasons that will contribute to a no charge/minimal charge result from the solar system. These allowances do not take into account shade on the solar panel which will effect the overall charging.
These allowances DO NOT take into account WiFi and Bluetooth Modules, as system consumption will increase using one of these devices Always use the next option up from requirement.
High Wattage PREMIUM Monocrystalline Solar Panel + Adjustable 30mm Fence Mounting Post
Solar Panel can be installed vertically or horizontally.
✓ PREMIUM QUALITY Monocrystalline 24V Solar Panel
✓ True IP67 Rating
✓ 97% or greater power tolerance
✓ Anodized Silver Aluminum Frame
✓ Long 10 Metre Cable (or cut to required size)
✓ Three Solar System Arrangement (1x 60W, 120W (2x60W Panels) or 180W (3x 60W Panels)) Each panel is supplied with its own post
| Maximum Power(Pmax) | 60W/120W/180W |
| Optimum Operating Voltage(Vmp) | 35.5V |
| Optimum Operating Current(Imp) | 1.13A |
| Open Circuit Voltage(Voc) | 43.1V |
| Short Circuit Current(Isc) | 3.4A/6.8A/10.2A |
| Power Tolerance | -1%~+3% |
| Operating Module Temperature | 40 C to +85 C |
Heavy Duty Solar Pole
✓ Powder Coated 30mm Diameter Steel Mounting Pole, Adapter and Plate
✓ Allows for Panel installation in a Vertical or Horizontal Orientation
✓ Pre-Set Fixed Angle best suited for the southern hemisphere
✓ Mounts to Fence, Wall or Post by supplied saddles to suit all installations
CERO PWM Solar Regulator
The Cero Solar Regulator is PWM type suited for Gel, Sealed and Flooded batteries. It operates in a 3 stage charging control to ensure optimal performance to the batteries and provide the greatest longevity. The Cero is has protections in place in case of errors and failures in the solar panel installation or battery installation and will shut down in the case of short circuit and overload, then restart once clear.
The LCD display provides accurate data on the current input voltage from the solar panel, the current stage of charging and also the current battery voltage making it easy to check the status on the fly.
✓ Large copper input terminals (12-28AWG)✓ Ribbed metal heat sink across the entire back side
✓ LCD Display
✓ 3 Stage PWM Management (Bulk, Boost, Float)
✓ Supports Sealed, Gel and Flooded Batteries
✓ Short Circuit, Open Circuit ,Overload Protection along with multiple other protections
✓ Allows for a total of 10 Amps Inputs
✓ High Efficiency
✓ USB Terminal
✓ Temperature Compensation
✓ Low voltage disconnect and reconnect

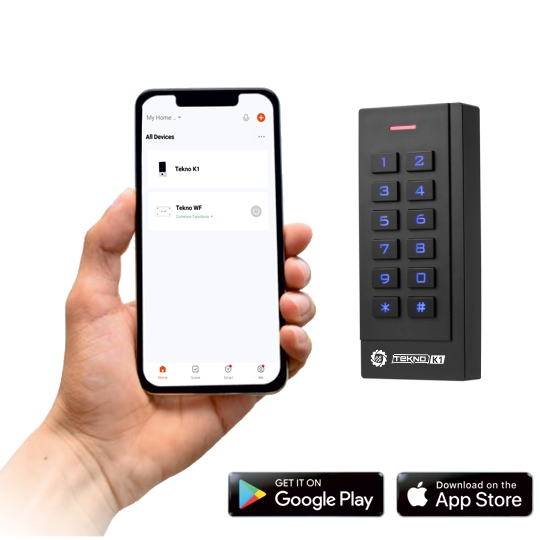

Tekno K1 Weatherproof Wired Keypad
The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.
The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.
General Mobile APP users can also be managed in via the app (add/delete) if and when required.
Key Features
✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what's supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.
