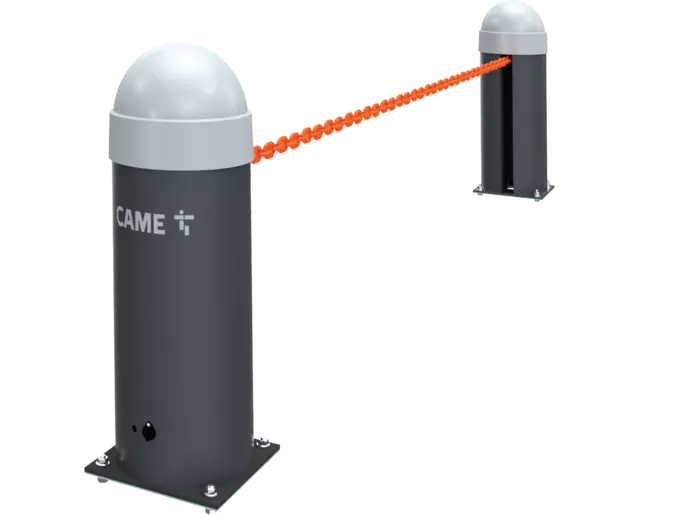

CAME Drop Chain Barrier Bollard Kit with 15m Span Chain **Special Order**

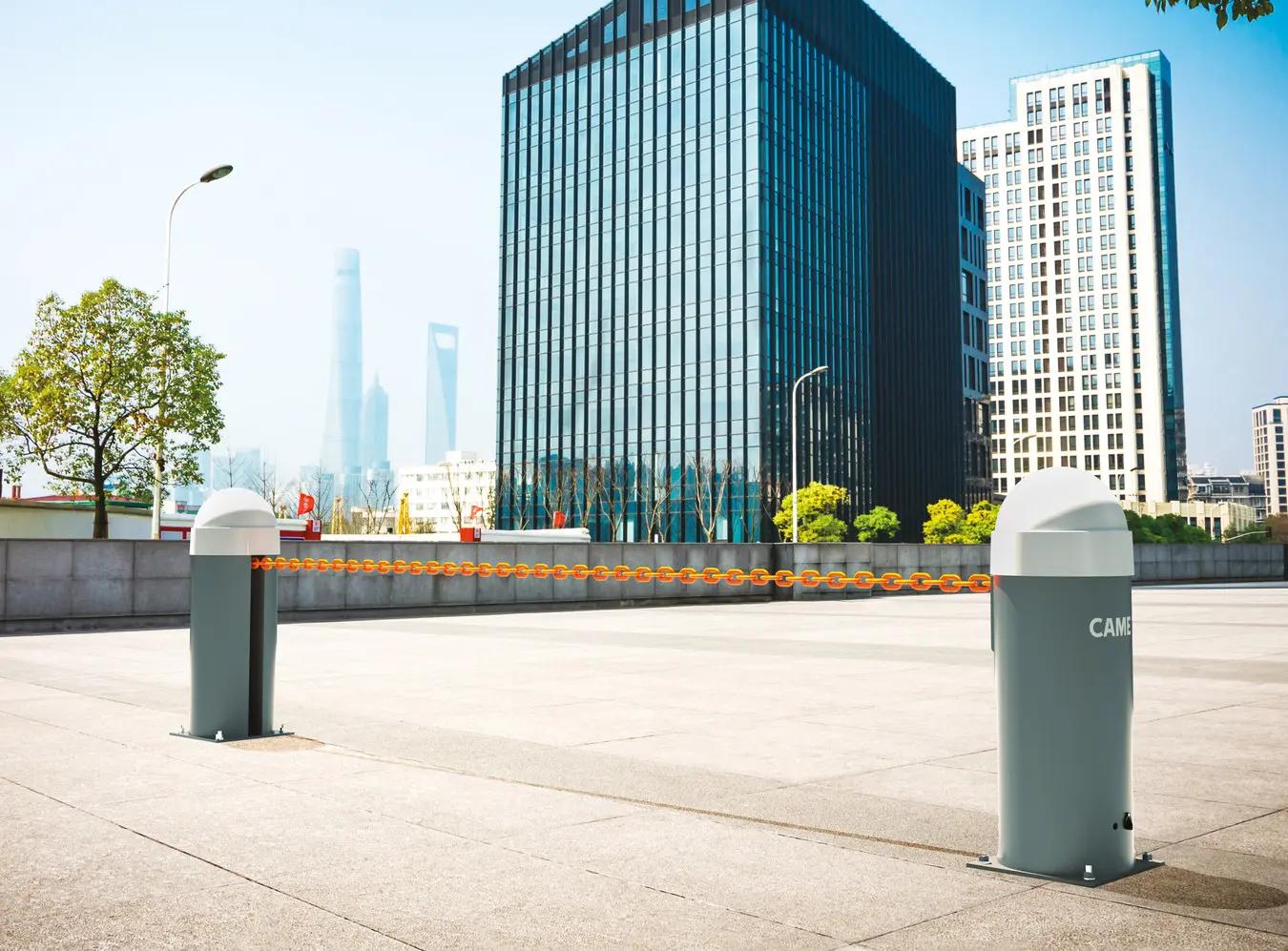

The ideal solution for access control in city centers, for parking areas security and for safeguarding pedestrian areas. Tested for a frequency of use of 45 cycles/hour. High reliability with MCBF of 50,000 cycles. Fast operation with adjustable opening time from 6 to 12 seconds. Possibility of operating even during power outages, through the emergency battery power supply system, which can be installed directly inside the structure (add on).
✓ VERSATILE 24Vdc motor-driven version
✓ ADAPTABLE Capable of controlling passages up to 16 meters, with the possibility of adapting the chain to the desired size.
✓ELEGANT Galvanized and painted steel bollards.
✓ SECURE Equipped with CAME's patented anti-trapping system.
✓ EFFICIENT CAT with 24V operator, guarantees excellent reliability over time and is tested for intensive use.
✓ COMPLETE The system can be completed with the entire range of CAME control and safety accessories, which are essential for installation in compliance with current regulations.
ANTI-TRAPPING SYSTEM
CAT is equipped with a patented CAME system that ensures maximum safety during operation. In fact, should people or animals inadvertently become trapped in the chain, the device detects the obstacle and immediately starts reopening to safely release the obstruction.
ADVANCED ELECTRONICS
CAT in the motor-driven version is equipped with all built-in control devices, with no need to install external elements. The control board is accessible directly under the cover so that quick and safe intervention is always possible. The ZN7-D control board is equipped with advanced features, including the possibility of using CONNECT technology for configuration, maintenance and remote control.
Specifications
| Protection rating (IP) | 24 |
| Power supply (V - 50/60Hz) | 230 AC |
| Motor power supply (V) | 24 DC |
| Intermittence/Duty-cycle (cycles/hour) | 45 |
| Cycle time (s) | 6 to 12 |
| RAL color | Cover 7040 - Post 7024 |
| Working temperature (°C) | -20 to +55 |
