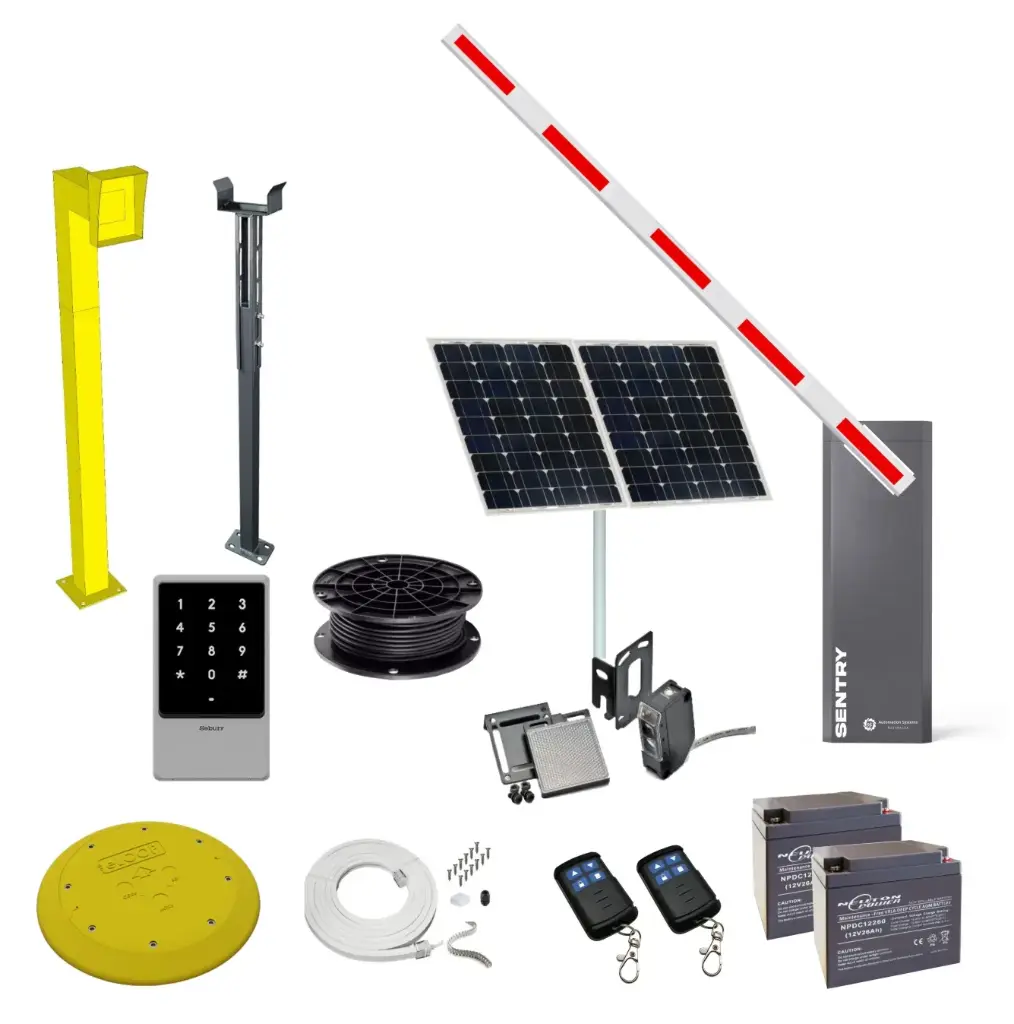

3m 4m 5m 6m Boom Gate (Brushless) ULTIMATE Kit Entry and Exit System Included - Solar Powered
| Boom Arm Type: Straight Arm |
| Boom Arm Length: 6m or Less |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Keypad Entry and Exit Sensor/Loop Detector |
SENTRY SUPER DUTY Brushless 24 Volt DC Boom Gate
The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.
The boom gate kit is supplied with an adjustable aluminum arm, the length is adjustable for a maximum of 6 meters fully expanded to a minimum of 3.5m whilst fully retracted, whilst installing set the arm to the appropriate size and simply install the set screw. Furthermore the arm can actually be cut down to a minimum length of 1 meter if the application so requires. Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.
The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.
The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.
Key Features
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change ✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules
A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System
Unlimited Driveway compatibility
Robust Design Overview
One boom gate can work with either side

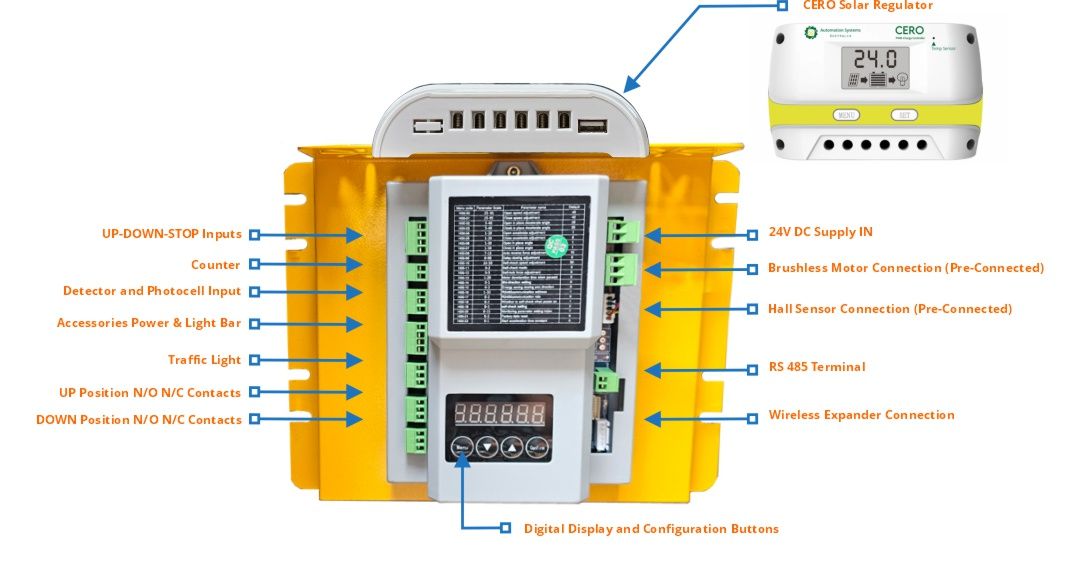

Intelligent Brushless Logic Controller and Solar Regulator
Boom Gate System Specifications
| Operating Voltage | 24V DC |
| Motor Type | BRUSHLESS 24V 150W |
| Duty Cycle | 80% |
| Speed | 2.4-8s Adjustable |
| Accessories Power | 24V DC |
| Safety Inputs | Photocell, Detector, Induction Loop, Stop Button |
| Light Outputs | Light bar and Traffic Light |
| Remotes | Yes, Up to 16 ADMIN remotes with wireless expander |
| Dimensions | 945x335x230mm |

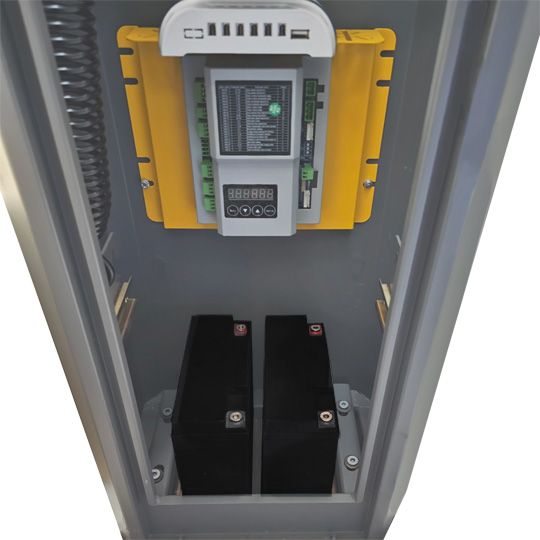

22aH and 26aH Battery Options
22aH (Low Intensity Usage)
| Battery System | 2x 22aH (24v/22ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 14 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 5 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.

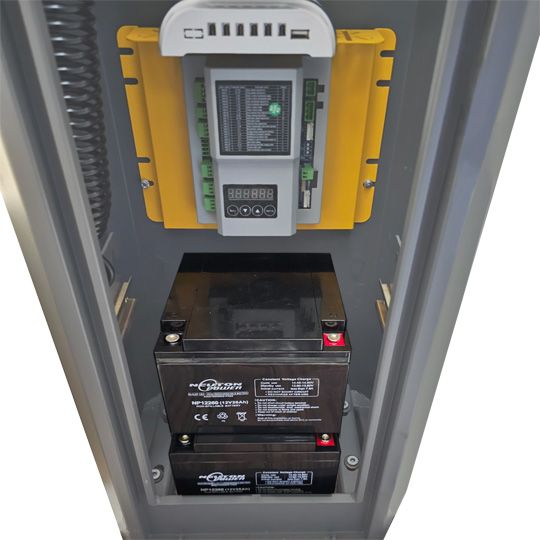

26aH (High Intensity Usage)
| Battery System | 2x 26aH (24v/26ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 22 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 7 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 4 Days WITHOUT solar Input |
| 50% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.
FREE 2.5m Reflective Tape is included with this product if you wish to apply for your application.
Gooseneck Pedestal Bollard for Driveways
Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.
Key Features
✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms
✓ Easy four bolt installation to join the top and bottom sections
✓ Anti deformation with 150x150x5mm thick base plate (pre-punched for dynabolts/masonry anchors)
✓ Rigid and durable
✓ Pre-Galvanized Steel (75x75mm)
✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood)
✓ Safety Yellow Powder Coating
Rain hood internal dimensions 115mm (H) x 160mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.
This product is manufactured as two pieces for freight and transport. The top half slides into the bottom half and they form one complete unit, supplied with Allen fasteners to ensure a secure fit.
FREE 2.5m Reflective Tape is included with this product if you wish to apply for your application.
Gooseneck Pedestal Bollard for Driveways
Suitable for all applications requiring a keypad or intercom post the gooseneck pedestal is designed for residential use whilst retaining an extremely strong from factor. Built from pre-galvanized 75x75mm SHS tube welded to a 150x150mm base plate it allows for a simple bolt down installation to a concrete footing, curb or traffic island.
Key Features
✓ Spacious rain hood to suit most access controllers/intercoms ALSO REVERSABLE and can be used as a backing plate for very large and very small access controllers/intercoms
✓ Easy four bolt installation to join the top and bottom sections
✓ Anti deformation with 150x150x5mm thick base plate (pre-punched for dynabolts/masonry anchors)
✓ Rigid and durable
✓ Pre-Galvanized Steel (75x75mm)
✓ Minimized risk with the perfect amount of extension (220mm from back of post to back of rain hood)
✓ Safety Yellow Powder Coating
Rain hood internal dimensions 115mm (H) x 160mm (W), Top Depth 65mm/Bottom Depth 40mm, The rain hood can also be installed in reverse to be used as a backing plate for your own rain hood.
This product is manufactured as two pieces for freight and transport. The top half slides into the bottom half and they form one complete unit, supplied with Allen fasteners to ensure a secure fit.
sTouch2 Keypad with Card Reader
1.Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad
2.125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards
3.The backlight can be set to normal ON, normal OFF or automatic mode
4.Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected
5.Reader mode: wiegand output, LED and Buzzer control input
6.Fully potted process, IP68
Specification
Material: Zinc Alloy+ Reinforced Glass
Input Voltage:DC12~24V
Idle Current:≤50mA
Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance:125KHz: ≤5cm 13.56MHz: ≤2cm
Output Format:Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.) Keypad: 4 bit, 8 bit, virtual card number
Working Temperature:-20~60° C
Working Humidity:0~95% (no condensation)
Product Dimension:145 * 83 * 26mm
Dukie XR Retro-Reflective Sensor
The Dukie XR series retro-reflective sensor kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Only the sensor requires wiring back to the gate controller as the sensor bounces its own beam back via the reflector installed on the far side of the driveway.
Added benefits of the XR series photocell is its Anti Interference Infrared characteristics making it best suited for ultra high capacity electric motors.
Key Features
✓ No wiring needed across the driveway (reflector)
✓ Narrow Sensor only 20mm width
✓ Flexible with multiple different mounting methods
✓ NO and NC Relay Options
✓ Excellent range characteristics of up to 11 meter distance in clear conditions (-40% in adverse conditions)
WIRELESS Automatic Vehicle Detection Sensor - for Automatic Opening of gate
An easy to install WIRELESS AUTOMATIC OPENING driveway vehicle detection system
Multiple hours saved, materials saved and frustrations gone Long gone are the days of cutting concrete, chasing wires and configuring induction loop detectors (ground loop). Finally, a simple WIRELESS solution to streamline the installation process. The WIRELESS loop detector SIMPLY BOLT DOWN to a concrete driveway (or concrete pad in gravel driveways) and wirelessly communicate back with the gate system using the supplied high security (128 Bit) transceiver for two way communication between the New Generation wireless loops. The wireless exit “loop” is maintenance free and installed with Replaceable Lithium batteries for up to TEN YEAR use period before a battery replacement is required, to replace the batteries simply remove the top cover and fit the new Lithium batteries. * 10 year battery lifetime based on 50 activations per day, 8 years at 100 activations per days, 4 years at 300 activations per day.How does it work and what happens if I accidently drive over it? The wireless loop is designed for a vehicle to drive over and will detect the undercarriage of the vehicle, if its accidently driven over it presents no issue whatsoever as its casing carries a static load capacity of 10,000kg (10 Tonnes).
How far can i have it from the gate? Thanks to its high transmission range capabilities it has a maximum wireless operating distance of 50 meters.
How big is it? Its compact form factor allows for a discreet installation measuring only 220x220mm Length and Width and only 26mm in height.
Will it work with my system? Typically, YES, it will work with any gate system that has an open command input and an accessories voltage output of 12-24V DC
Which installations does this suit? Any domestic or commercial installations which fit the following criteria:
✓A concrete pad or driveway is available for the device to be installed on to
✓When a vehicle is parked it does not sit within 3 meters of the device
✓The device does not sit in a recess and pool water, snow or any debris
✓Not nearby to high voltage cables
Please note forklifts and other heavy machinery physical touching the detector may cause breakage, use the flush mount version instead. How is it installed?
1. Connect the transceiver to the gates control board, this must be installed within the gate controller or any enclosure
2. Power on the transceiver and have the loop touching the antenna of the transceiver.
3. Once the transceiver flashes its blue led and the loop flashes its yellow led they are now paired together.
4. Remove backing plate from the loop and install to concrete using the supplied concrete screw bolts, ensure the arrow faces the direction of travel for exit (faces towards the gate).
5. Install the wireless loop to the backing plate and allow 3 minutes for calibration Test to confirm operation, job done!
Supplied With
✓1x Commercial Wireless Loop (with Lithium Batteries Installed)✓1x Transceiver
✓1x Allen Key
✓2x Concrete Screw Bolts
Detection Area
Replaceable Battery Life
