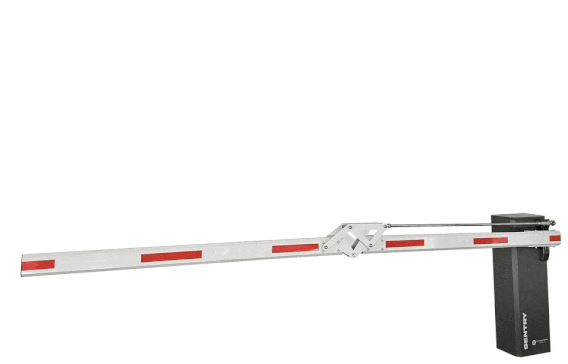

SENTRY Solar Powered BRUSHLESS Low Voltage Automatic Folding 180 Degree Boom Barrier Gate underground garage offices low clearance with Keypad Pin Code
Kit Part No:
SENTRY-A180-SOLAR-SE
Bulky Item
| Boom Arm Type: 180 Degree Folding Arm |
| Boom Arm Length: 4.5m (Articulating) |
| Boom System Powered By: Solar Powered |
| Boom Gate Operation: Keypad |
SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate
The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.

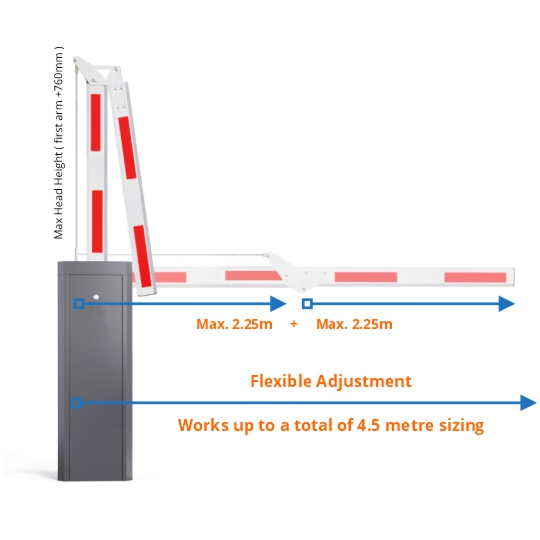

The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.
The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.
The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.
The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.
The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.
The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.
Key Features
✓ Tested for OVER 5 Million individual cycles brushless motor
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible
✓ Light bar Compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules
A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System
Unlimited Driveway compatibility
Robust Design Overview
One boom gate can work with either side
Intelligent Brushless Logic Controller and Solar Regulator
Boom Gate System Specifications
| Operating Voltage | 24V DC |
| Motor Type | BRUSHLESS 24V 150W |
| Duty Cycle | 80% |
| Speed | 2.4-8s Adjustable |
| Accessories Power | 24V DC |
| Safety Inputs | Photocell, Detector, Induction Loop, Stop Button |
| Light Outputs | Light bar and Traffic Light |
| Remotes | Yes, Up to 16 ADMIN remotes with wireless expander |
| Dimensions | 945x335x230mm |
22aH and 26aH Battery Options
22aH (Low Intensity Usage)
| Battery System | 2x 22aH (24v/22ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 14 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 5 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.
26aH (High Intensity Usage)
| Battery System | 2x 26aH (24v/26ah) |
| Standby Time/Occasional Usage 50mA (Without consumption accessories such as press button) | Up to 22 Days WITHOUT Solar Input |
| Standby Time/Occasional Usage 150mA (With TWO consumption accessories such as Keypad/Loop or Intercom) | up to 7 Days WITHOUT solar Input |
| 25% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 4 Days WITHOUT solar Input |
| 50% Duty Cycle 1100mA (With TWO consumption accessories such as Keypad/Loop or Intercom | MAX. 2 Days WITHOUT solar Input |
Note: Solar input is typically near to continuous by average however the above example provides an example/insight when continuous poor weather may prevent charge from the solar panel.
Tekno K1 Weatherproof Wired Keypad
The Tekno K1 is a versatile and feature packed standalone keypad unit with APP Control by mobile phone allowing for the ability to operate from anywhere in the world along with local operations by PIN code or EM card/Tag. Its intuitive design allows for adding administering users directly into the keypad or by the APP.
The free mobile APP allows for adding temporary PIN codes with expiry dates (or one time use) making it ideal for deliveries, Airbnb and other applications requiring temporary user access with out the need to add the users on-site.
General Mobile APP users can also be managed in via the app (add/delete) if and when required.
Key Features
✓ FREE APP Control available in Apple App Store and Google Play Store (Highly rated and reliable with over 5 million users worldwide)
✓ Control your gate ANYWHERE in the world
✓ Voice control and scene control compatible with Google assistant, Alexa and Siri
✓ Up to 10,000 Users by PIN code, EM Card and EM Tags
✓ Unlimited APP Users
✓ Add in expiring PIN codes by APP
✓ Add in normal users by APP
✓ Wires directly into the system
✓ Simple connection and simple setup
✓ Up to 10 meter Wi-Fi range with basic entry level routers (typically what's supplied by the internet provider), Substantially boosted using good quality routers or mesh networks.
