SENTRY BRUSHLESS Electric Folding 180 Degree Boom Barrier Gate High Duty Cycle parking underground garage offices low clearance with Keypad Pin Code
| Boom Arm Type: 180 Degree Folding Arm |
| Boom Arm Length: 4.5m (Articulating) |
| Boom System Powered By: Mains |
| Boom Gate Operation: Scheduled Timer |
SENTRY 180 Degree Articulate Brushless 24 Volt DC Boom Gate
The Sentry low voltage 24 Volts Boom Arm Barrier Gate is the latest in cutting edge technology. Within the boom gates powder coated steel casing lies the heart of the system the brushless 24V 150 Watts motor, tested for over 5 million total cycles the dynamic brushless motor can run at 80% duty cycle suiting almost every application from large scale parking structures, commercial environments, down to small scale entry management such as caravan parks.
The boom gate kit is supplied with an Articulating aluminum arm set ready to cut to the required size, the length is adjustable from the supplied 4.5 metres maximum to a minimum of 2.0 metres Please note to choose the intended arm length correctly as each kit is supplied with the balancing spring pack to suit.
The system is equipped with a multi-speed adjustment allowing for total tuning of speed of operation from 2.4 seconds with short arms to 4 seconds at fastest on long arms. If required the system can be slowed to an 8 second operation speed.
The versatile brushless logic controller (control board) will control the accessories inputs and there power supply, lights output, up and down position relays and a number of setting changes for speed, arm positions and much more. The brushless motors hall effect sensor is also connected to the controller proving the best possible arm accuracy as there is no dependence on limit switches or alike.
Key Features
✓ Hall effect sensor for the best accuracy
✓ Incredible 80% Duty Cycle
✓ Universal LEFT or RIGHT side installation, easy switch over in-case of installation change
✓ Robust powder coated steel casing
✓ Automatic closing timer
✓ Traffic light compatible
✓ Weekly scheduled timer compatible
✓ Induction Loop Compatible
✓ Keypad (Standalone and Wiegand) compatible
✓ Parking, booking system and ticket machine compatible
✓ Din rail mounting system for modules
A quick look at the Sentry BRUSHLESS Super Duty Boom Gate System
Unlimited Driveway compatibility
Robust Design Overview
One boom gate can work with either side
Intelligent Brushless Logic Controller
Built In Switch Mode Power Transformer (240V to 24V)
Supplied with an efficient switch mode power supply rated up to 10A the power supply steps down and converts the voltage to 24V DC to suit both the brushless low voltage motor, controller and accessories.
Boom Gate System Specifications
| Operating Voltage | 24V DC |
| Motor Type | BRUSHLESS 24V 150W |
| Duty Cycle | 80% |
| Speed | 2.4-8s Adjustable |
| Accessories Power | 24V DC |
| Safety Inputs | Photocell, Detector, Induction Loop, Stop Button |
| Light Outputs | Light bar and Traffic Light |
| Remotes | Yes, Up to 16 ADMIN remotes with wireless expander |
| Dimensions | 945x335x230mm |

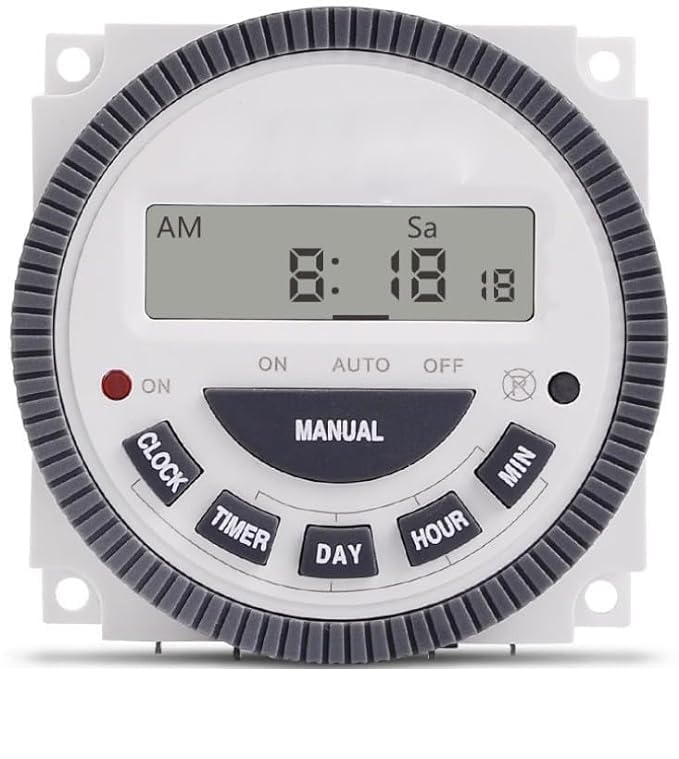

Weekly Schedule Automatic Gate Timer
The weekly timer allows for scheduling open time cycles to operate the gate, simple set the open time and once lapsed the gate would automatically close (automatic close timer must be enabled).
The timer allows for independent 5 day business week, INDEPENDENT days configurations OR a full 7 day week configuration along with other modes. Up to 8 different On/Off schedules can be set.
Key Features
✓ Automatic Opening and Closing at the Set times
✓ LCD Display
✓ Built in Battery to retain schedules, replaced every 2-3 years
✓ Simple setting by: independent days schedule, Common time 5 day working week (MON-FRI), Weekends Combined (SAT+SUN) or Common time 7 day week (MON-SUN)
