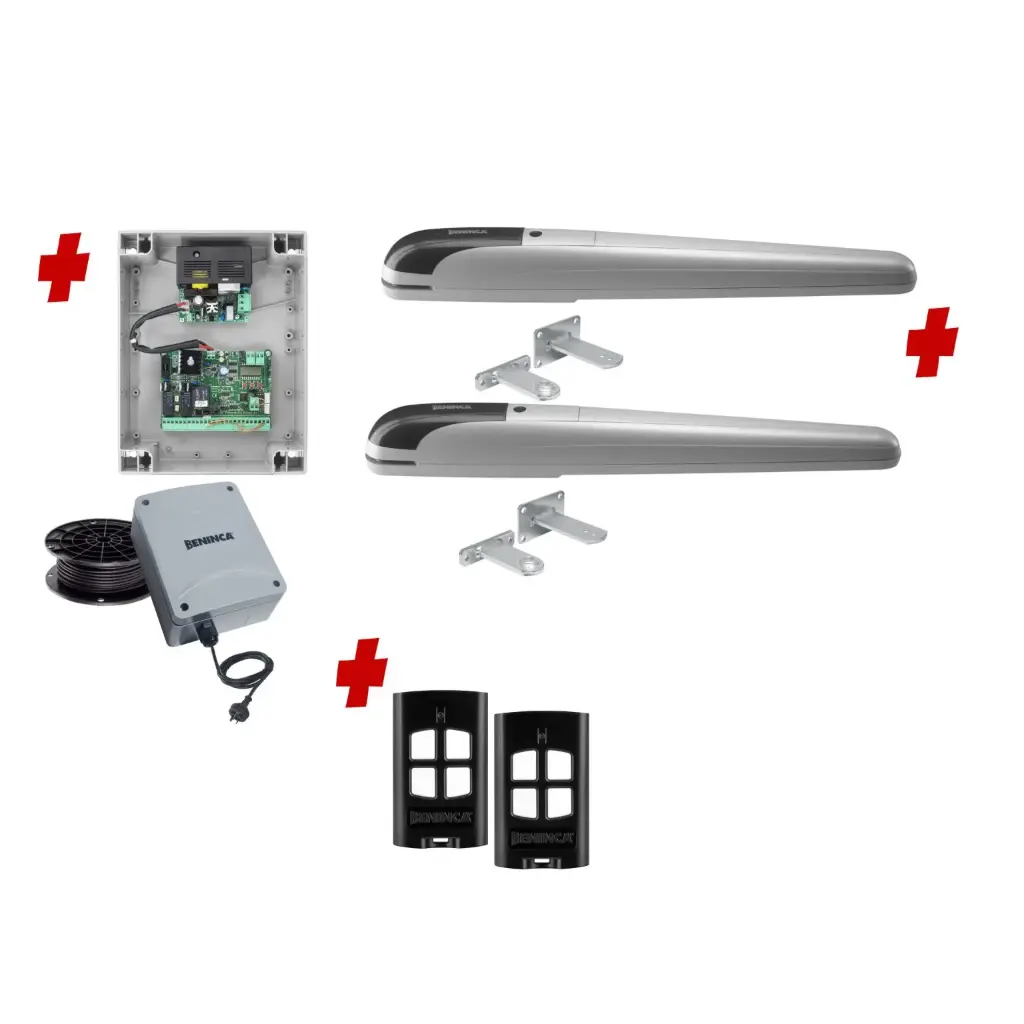

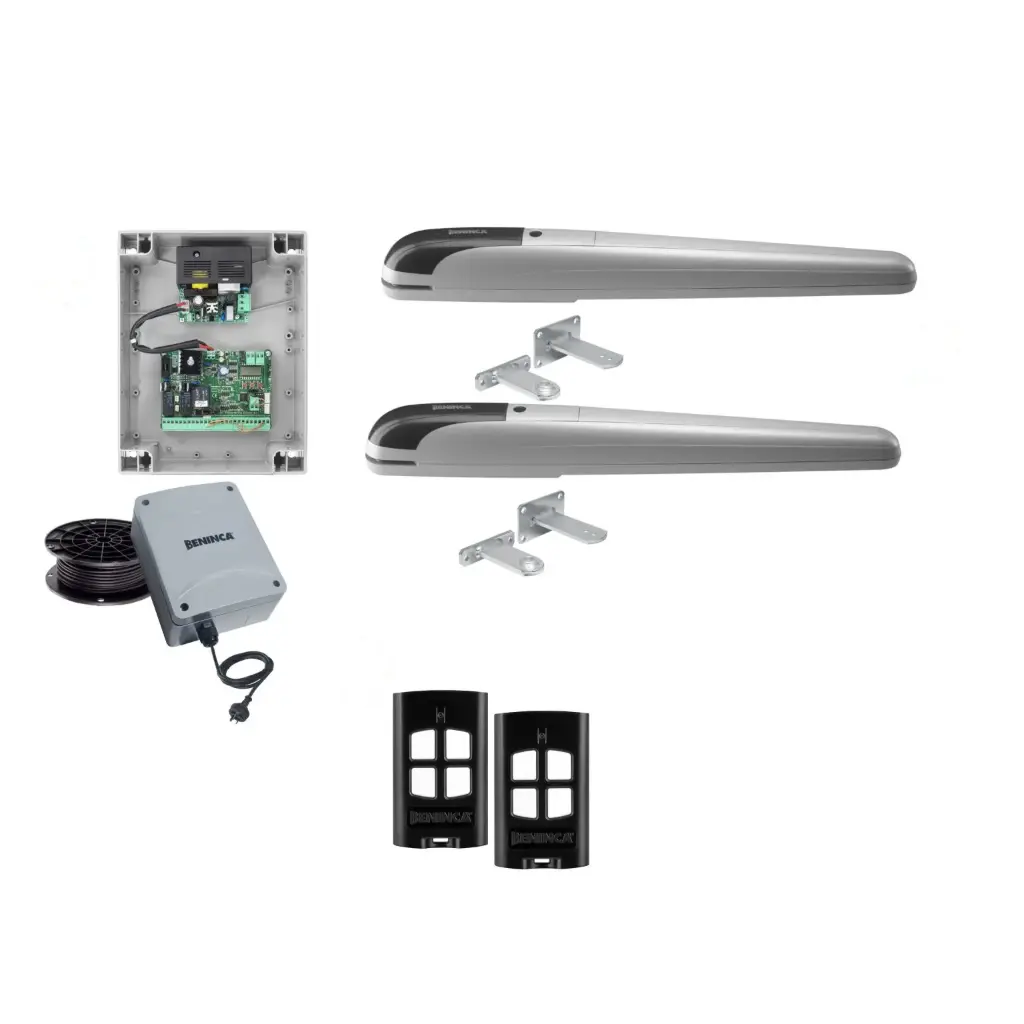

BOB 5 High Thrust Long Stroke ITALIAN Low Voltage 24V Automatic Double Swing Driveway Gate Opener 24 Volt Kit ROBUST Heavy Duty Design BASE KIT
Kit Part No:
BOB5-2D-E-BK
Long Stroke
🏆 3 Year Warranty!
High Thrust
| Operating Method: Remote Controls Only |
| Gate Opener Brand: Beninca |
| Swing Gate Thrust/Torque: 2200N |
| Model: BOB 5 |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 5m |
Beninca BOB5024 High Thrust Operator
The BOB5024 Is a Italian Made Operator built to a high standard using a heavy duty lead screw, quality high strength die casting and an all metal gearbox.
The BOB uses an exposed worm screw with adjustable mechanical stops for both the open and closed positions.
BOB operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable required in the add ons).
The BOB uses an exposed worm screw with adjustable mechanical stops for both the open and closed positions.
BOB operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable required in the add ons).
Key Features
✓ Strong and Reliable
✓ Sleek and Stylish
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing
✓ Mechanical Stops
✓ Sleek and Stylish
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing
✓ Mechanical Stops
✓ Compact 100mm Width
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
Overview of the Orion Actuator
Secure Manual Release
Simply Unlock the cover and use the hidden tool key to unlock the operator.
Lead Screw
Smooth and strong operations transferred via the 20mm diameter ball screw
Adjustable Limit Stops
Set and forget, easy to adjust open and closed positions by the adjustable limit stops.
All Metal Gears
A Robust ALL metal gearbox
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty | Intensive Use |
| Thrust | 2200N |
| Maximum Stroke Length | 455/485/520mm Two Stops/One Stop/No Mechanical Stops |
| Limit Stops | Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast and Extruded Aluminum |
| Maximum Gate Width | 5 Meters See specifications graph |
| Maximum Gate Weight | 500KG (See Pivot Table Below- Right Column) |

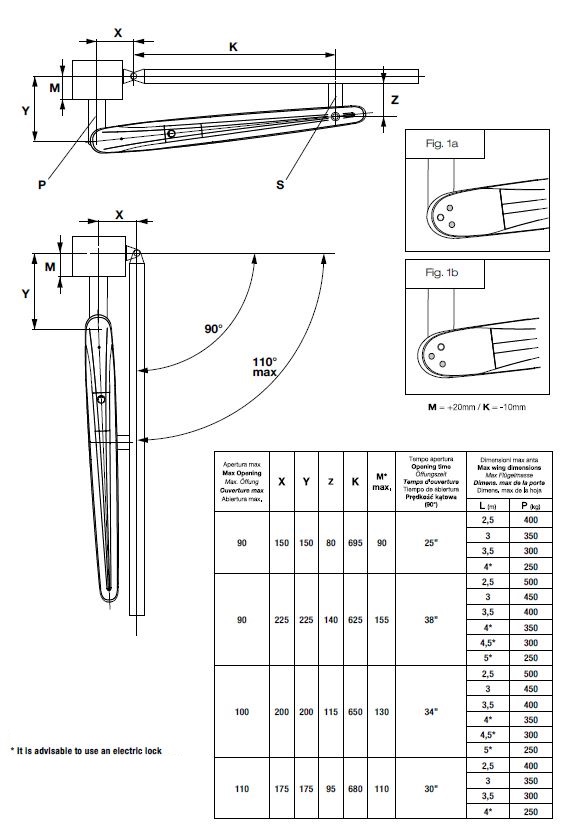

Pivot Geometry
Technical Drawing
Beninca TO.GO4A
Sleek, Modern, Stylish and Easy to Use the TO.GO4A Remote Control allows for utilization of Pedestrian Function and Normal Gate Operation with the Allowance for control of another Gate/Garage Door with the Unused buttons.
Brainy PLUS Top End Digital Automatic Gate Controller
The Brainy PLUS is the latest 24V Swing Gate Control Box from Beninca. Brainy Plus controller carries new and improved motor management settings and suits Residential and Commercial applications with an Intensive Use allowance.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Automatic Gate System Features
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | Intensive Use |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC (Mains Systems Only) |
| Automatic Gate Lock Support | Yes, 12-24V DC |
| Light Support | Yes, Aux. Output |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 64 |
SA.24 and SAR.24 Low Voltage External Transformer
The External 24V Transformer is designed to be installed outdoors or in a garage/carport. The transformer will plug into an ordinary power point and output a safe LOW VOLTAGE supply to the gate system.
Two Options are available for the transformer
SA.24 for distances up to 25m and SAR.24 for distances up to 45m (See the Kit Contents tab)
✓ Two Options based on distance
✓ Multiple cable roll options or use your own cable
Two Options are available for the transformer
SA.24 for distances up to 25m and SAR.24 for distances up to 45m (See the Kit Contents tab)
Key Features
✓ IP Rated Outdoor Rated Design✓ Two Options based on distance
✓ Multiple cable roll options or use your own cable
