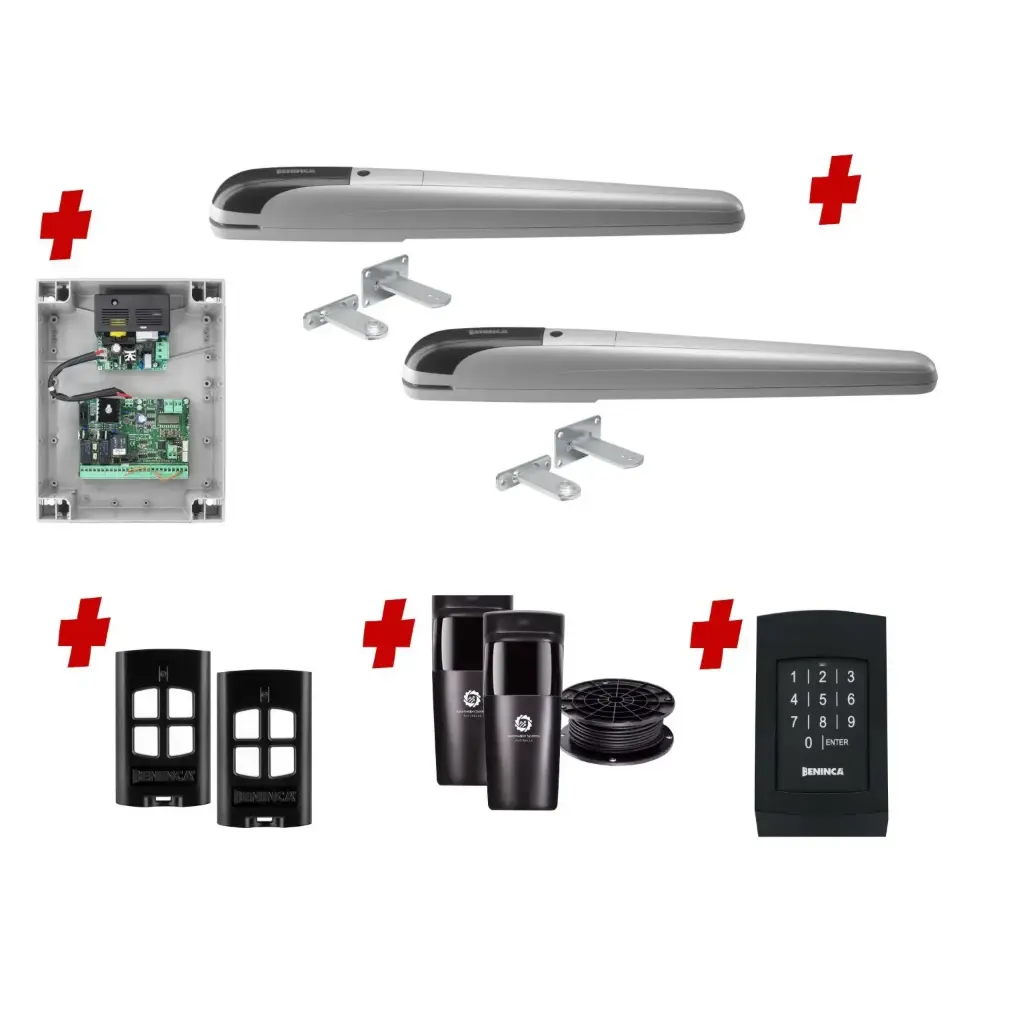

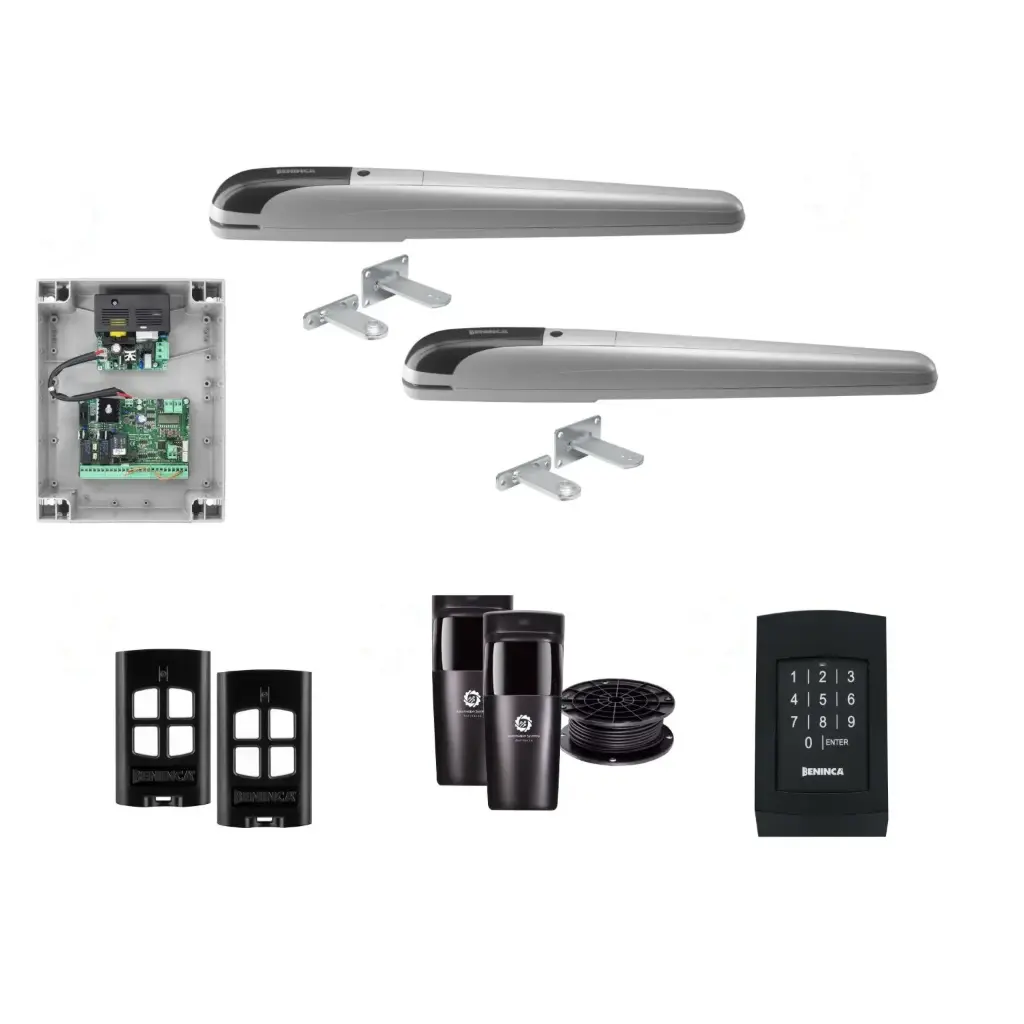

BOB 5 High Thrust Long Stroke ITALIAN Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design with Keypad Pin Code
Kit Part No:
BOB5-2D-P-AS
Long Stroke
🏆 3 Year Warranty!
High Thrust
| Operating Method: Remotes & Pin Code Keypad |
| Gate Opener Brand: Beninca |
| Swing Gate Thrust/Torque: 2200N |
| Model: BOB 5 |
| Warranty: 3 Year |
| Maximum Swing Gate Size (each): 5m |
Beninca BOB5024 High Thrust Operator
The BOB5024 Is a Italian Made Operator built to a high standard using a heavy duty lead screw, quality high strength die casting and an all metal gearbox.
The BOB uses an exposed worm screw with adjustable mechanical stops for both the open and closed positions.
BOB operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable required in the add ons).
The BOB uses an exposed worm screw with adjustable mechanical stops for both the open and closed positions.
BOB operators are universal Left and Right side compatible and can be wired as 2 Wire operators (not using encoder) and 5 wires (when using encoder, additional cable required in the add ons).
Key Features
✓ Strong and Reliable
✓ Sleek and Stylish
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing
✓ Mechanical Stops
✓ Sleek and Stylish
✓ Open and Closed Limit Stops
✓ Large Stroke as standard
✓ Die-Cast Housing
✓ Mechanical Stops
✓ Compact 100mm Width
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
✓ Can be used as a 2 Wire System
✓ Encoder Built In and can be utilized using a 5 wire Cable
✓ Flexible and vast installation geometries
Overview of the Orion Actuator
Secure Manual Release
Simply Unlock the cover and use the hidden tool key to unlock the operator.
Lead Screw
Smooth and strong operations transferred via the 20mm diameter ball screw
Adjustable Limit Stops
Set and forget, easy to adjust open and closed positions by the adjustable limit stops.
All Metal Gears
A Robust ALL metal gearbox
Driveway Gate Motor Specifications
| Operating Voltage | 24V DC |
| Duty | Intensive Use |
| Thrust | 2200N |
| Maximum Stroke Length | 455/485/520mm Two Stops/One Stop/No Mechanical Stops |
| Limit Stops | Yes for both Open and Closed (individually removable) Ideally a gate stop is used in the closed position if possible |
| Gearing Structure | Gearbox |
| Case Material | Die-Cast and Extruded Aluminum |
| Maximum Gate Width | 5 Meters See specifications graph |
| Maximum Gate Weight | 500KG (See Pivot Table Below- Right Column) |
Pivot Geometry
Technical Drawing
Beninca TO.GO4A
Sleek, Modern, Stylish and Easy to Use the TO.GO4A Remote Control allows for utilization of Pedestrian Function and Normal Gate Operation with the Allowance for control of another Gate/Garage Door with the Unused buttons.
Brainy PLUS Top End Digital Automatic Gate Controller
The Brainy PLUS is the latest 24V Swing Gate Control Box from Beninca. Brainy Plus controller carries new and improved motor management settings and suits Residential and Commercial applications with an Intensive Use allowance.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
The LCD Display (not Switches) allows for adjustment of most working settings changes if desired and is easily visible in the outdoors being the advantage of LED displays. With multiple Inputs and outputs just about any accessory is compatible (see the complete list below).
Multiple safety inputs allowing for best safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.
Automatic Gate System Features
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | Intensive Use |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC (Mains Systems Only) |
| Automatic Gate Lock Support | Yes, 12-24V DC |
| Light Support | Yes, Aux. Output |
| Accessories Voltage | Yes, 24V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -20°-50°C |
| Maximum Remotes | 64 |
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Dukie X 32KHZ Anti-Interference Professional Photocell Kit
The Dukie X series photocell kit will provide an invisible to the eye infrared beam across the driveway to prevent the gate closing from obstacles in the beams path. Both the photocells are wired back to the control box with low voltage.
Added benefits of the X series photocell is its Anti Interference Infrared frequency (32KHZ) making it best suited for ultra high capacity electric motors.
Key Features
✓ Ultra modern and neat appearance
✓ Compact design fits almost anywhere at 81(L)x65(W)x29(D)mm
✓ NO and NC Relay Settings
✓ Excellent range characteristics of up to 10 meter distance between each photocell
✓ Multiple sets can be installed on each system for added protective layers (with Synchronization setting)
OPTIONAL Dukie XR reflective sensor upgrade for wiring on one side only
Beninca BE.CODE Wireless Keypad
Slimline and Wireless using replaceable CR123A Lithium Batteries allows a remarkable battery life of 7 years with a use case of 190 Users per day.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
Maximum distance of 100m in clear line of sight is achievable with the BE.CODE and with an allowance of up to 254 stored codes in the Keypad.
