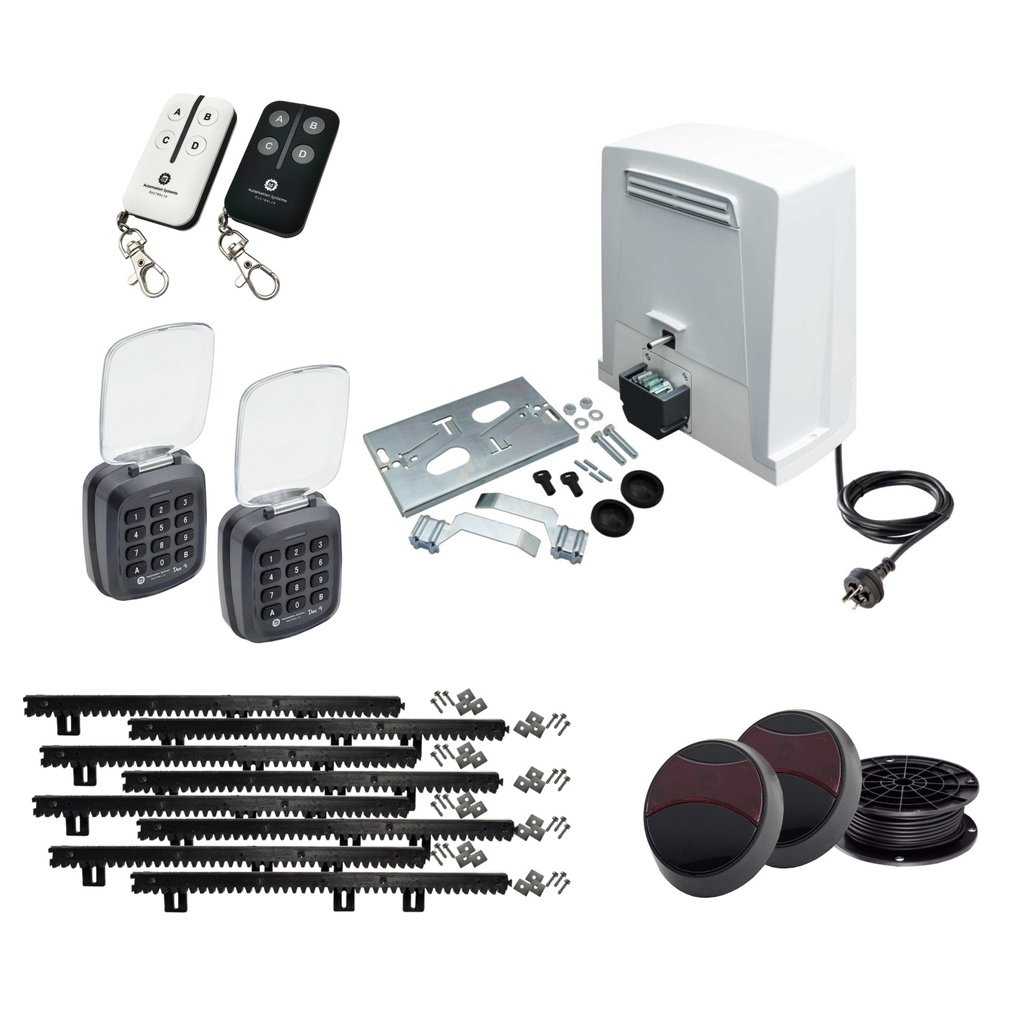

BKV 1500 Super Duty 36V Sliding Gate Opener 1500KG (with Dual Keypads) Limit Switches and Encoder Made in Italy
| Operating Method: Remotes & Pin Code Keypad |
| Warranty: 2 Year |
| Sliding Gate Max. Width: 20m |
| Sliding Gate Max. Weight Capacity: 1500KG |
| Gate Opener Brand: CAME |
| Model: BKV 1500 |
Super Duty 36V Sliding Gate Motor with Encoder and Limit Switches
The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.
Suitable for commercial, industrial and Residential Installation of all weights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.
Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface.
Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.
All-in-One and Feature Packed
For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.
Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.
The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).
Four point adjustment
As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.
Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit
Manual Release
Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.
Specifications
| Maximum Gate Width | 20M |
| Maximum Gate Weight | 1500KG Each |
| Speed (M/Min) | 12M/Min |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 200W |
| IP Rating | 54 |
| Operating Temperature | -20° to +55° C |
| Thrust (Nm) | 1200N |
| Duty Cycle | 100% |
Dimensions
Digital Control Board
By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) typically you would start an automatic calibration, set the automatic close time and connect any accessories to the system to complete the installation.
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
36V Power Input24V Power Output For AccessoriesAutomatic Weekly Timer
Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).
Selective choice of the 7 Days of the week settings, or the entire week 12/24 Hour FormatEACH timer event can be configured to Open the gate, Partial Opening or B1-2 Output Activated* Plug in clock Module Required from the add on's
Configurable Methods Of Operation
Along with the on board weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.
ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen *Plug In Clock Module Required from add on's requiredFull Gate Operation by remotePartial by remote (Opens the gate partially)Open Only by remoteClose Only by remoteOpen/Close Input by Wired AccessoriesOpen only Input by Wired Accessories (loop Detector)Close only Input by Wired Accessories (loop Detector)Wired Emergency STOP ButtonRemote Operation
The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)Partial OperationRELAY OUTPUT/STAY OPEN Feature (Pause automatic close)Motor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
Adaptive TorqueENCODER ControlAutomatic Calibration Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown Position (Two Stages)
Safety Devices
Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Light Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During OpeningOperational Control
Infinite support for accessories and methods of operation
Remote ControlsWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom SystemsRelay Output B
Default Can be set to work on a remote button and/or by the weekly timer
Set to a latching ON/OFF CircuitCan be used to trigger an alarm, garage door or another gateCan be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.
Control Board Security
A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the menu.
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
DIR10 Photoelectric Sensor
The DIR10 Photocell is an easy to install high grade unit with excellent build characteristics as the front covers are of polycarbonate material for added strength and durability.
It is versatile in its operating voltage of 12-24V AC OR DC and is wired in a daisy chain configuration from system to the first cell and from the first cell to the second cell. It can be used for up to a 10 meter distance between the photocells.
Cable can be brought into the photocells from either the backside OR externally through the bottom of each photocell meaning one type of photocell caters for all methods of install.
Dex 4 Wireless Keypad
The Dex 4 Wireless Keypad can communicate directly to the gate system using the same Keeloq secure rolling code signal as the remotes allowing for an easy installation process without the need for wiring.
Due to its high quality chipset the open air signal strength can exceed an astounding 80 meters. This makes the Dex 4 not only suited to controlling the gate but could actually be used to control the garage door, another gate etc. providing they have the compatible receiver installed, Up to FOUR devices/features could be used with individual pin codes for each due to its four independent output channel designs.
Key Features
✓ Three colour options are available: Classic White, Subtle Grey and Deep black
✓ Compact design fits almost anywhere at 90(L)x77(W)x35(D)mm
✓ Control Up to four systems or four features on different pin codes
✓ Astounding open air distance of 80 metres
✓ Works on 2x AAA batteries (supplied)
✓ Audible and LED indicators
✓ Totally wireless (wire free) easy installation
