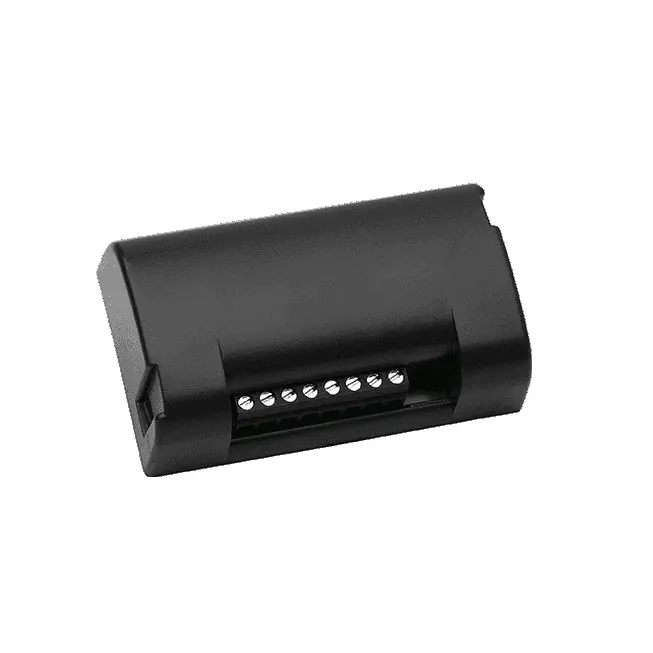

ONE.2WB-MS 2 CHANNEL SECURE RECIEVER
- The ONE.2WB-MS 2 Channel Secure Reciever is a 433.92 MHz receiver with power supply 12÷28 Vdc / 21÷28 Vac
- 2 channels with triple coding: Advanced Rolling Code, Rolling Code and Fixed Code. This makes it possible to create “master” transmitters to protect the receiver from tampering.
- The receiver allows enhancing the security level of the installations through the creation of “master” transmitters. These block the access to the receiver and prevent tampering from unauthorised third parties.
Security
- Two levels of security can be applied to the installations. There is highest security, which implies the exclusive use of any transmitters with ARC encoding system as master transmitter. There is basic security that also allows using transmitters of the TO.GO4-MS series as master. In this second case, by using this special model of transmitters, it is possible to create copies of the master and associate a different master transmitter to each channel, handling in this way 4 masters with a single transmitter.
Product Description
- The procedure to turn a transmitter into a master transmitter is simple and quick. It is possible to associate the role of master to a transmitter with ARC coding but only after memorising it in the receiver. During the memorisation process, it is also necessary to associate the channels of the receiver. Slave transmitters, enabled by the master to open the installation, will operate the same channels originally commanded by the master transmitter.
- It is possible to associate the role of “master” to maximum three transmitters already memorised in the receiver, in both levels of security.
- Compatible with the programming device Advantouch, upon sending the code of a master transmitter, it is possible to read or write the list of transmitters, manage the memory of the receiver and enable other transmitters as “master” transmitters by copying the related code. This function turns out to be particularly useful in installations set up with the highest security level. In case of loss of the master transmitter, the backup of the receiver allows recovering the data and programming a new transmitter with the same code of the master transmitter that was lost.
- The memorisation of slave transmitters to command the automation can be carried out in two ways: either through the remote enabling procedure by using the “master” transmitter and a transmitter of the AK series, or by going in the installation and using the master transmitter to open the memory of the receiver. This procedure is valid both with master transmitters of the A, VA and AK series and TO.GO4-MS models.
