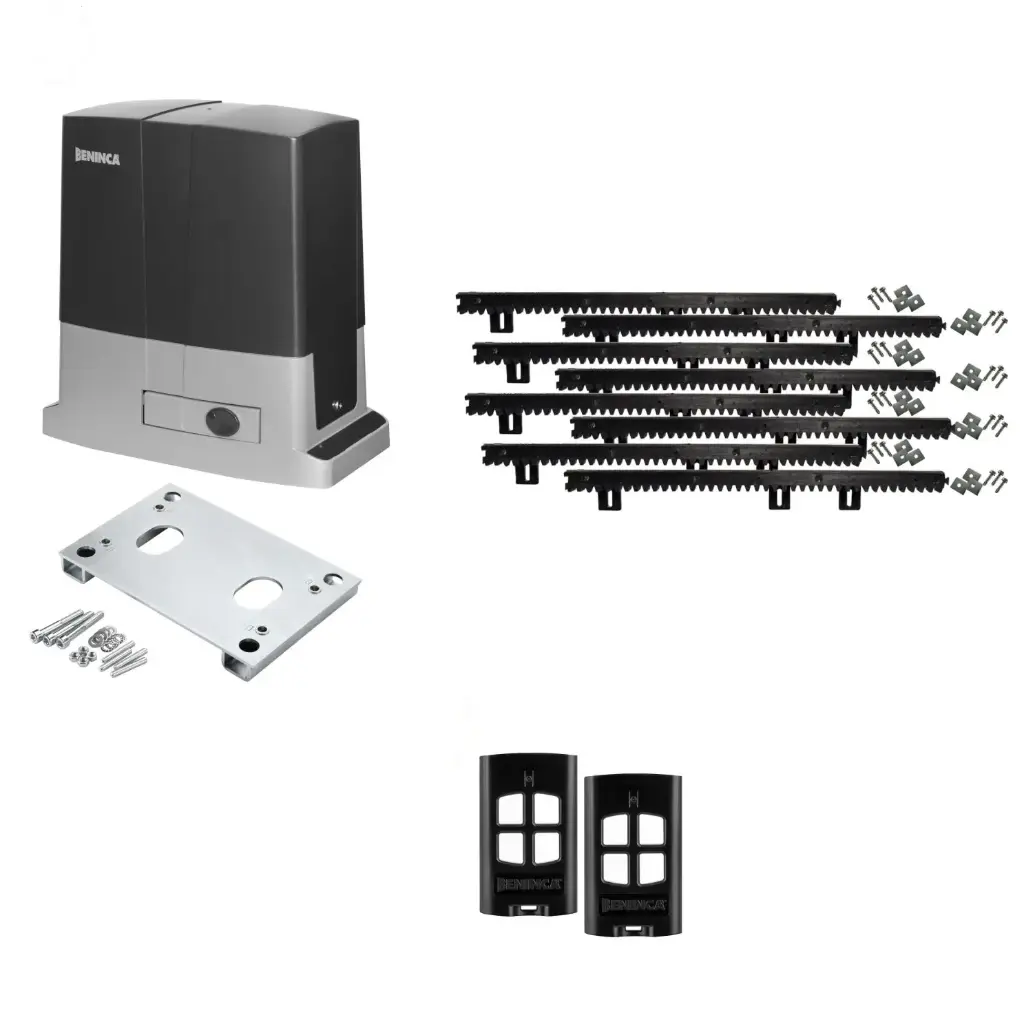

  3. Beninca BULL 624 Electric 24V Low Voltage Automatic Sliding Driveway Gate Opener Kit Heavy Duty POWERFUL Design BASE KIT

Beninca BULL 624 Electric 24V Low Voltage Automatic Sliding Driveway Gate Opener Kit Heavy Duty POWERFUL Design BASE KIT

Kit Part No: BULL624-P-BK
🏆 3 Year Warranty!

$ 915.00
$ 823.50 -10%
$ 915.00
when eligible
915.0 AUD $ 915.00 Tax Included

or 4 payments of $228.75 with Afterpay
or 4 payments of $228.75 with Zip Pay

Not Available For Sale

  • Operating Method
  • Warranty
  • Model
  • Sliding Gate Max. Width
  • Sliding Gate Max. Weight Capacity

This combination does not exist.

Delivery
In-store
Click & Collect
Freight from Loading...

3 Year Warranty

Contact Us
Operating Method: Remote Controls Only
Warranty: 3 Year
Model: Bull 624
Sliding Gate Max. Width: 8m
Sliding Gate Max. Weight Capacity: 600KG

Terms and Conditions

Share

⚠️ This product is a Base Kit and is not supplied with Photocells (Safety Beam), it is available in the "Add ons" Tab.




Beninca Bull 624 SE (Advanced Version)

The Beninca Bull 624SE Sliding Gate System is a 600KG capable Operator (Level Ground) and works on 24V.

It uses the latest and most advanced Beninca Controller (ARC). With an LCD On-Screen Display (no DIP switches),  automatic learning, Multiple Safety Inputs


Multiple safety inputs allowing for best  safety practices with control over the overload settings, Standard Closing photocell input, Photocell input also for opening and closing along with safety edges and E Stop buttons.

Key Features


✓ Strong 24 Volt Operation
✓ Die-Cast Alloy Housing

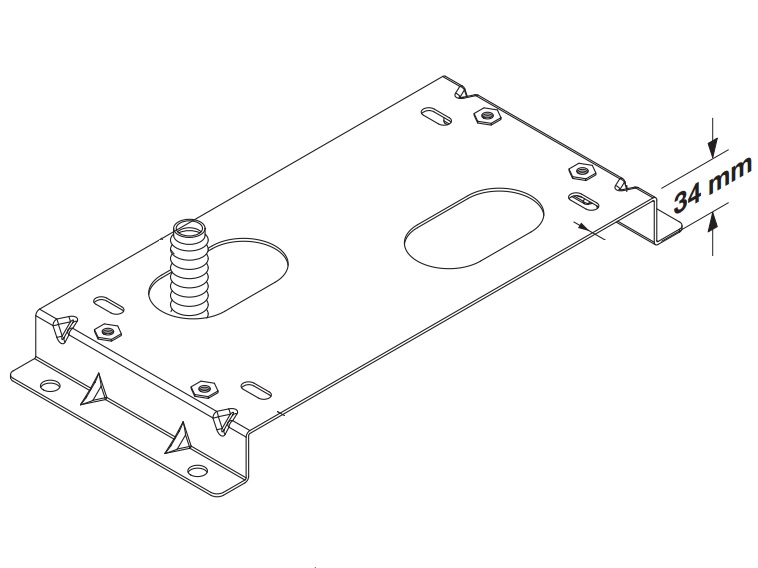

✓ Adjustable Embedded Plate & Fixed Base Supplied
​
✓ Steel Pinion Gear
✓ Open and Closed Position Easy Micro-Switch Limits
✓ Advanced Controller

Product Overview

Advanced "ARC" Digital Logic Controller

Steel Pinion and Easy Limit Switches

Key Locked Manual Release


Automatic Gate System Logic Controller Features

Features as Standard

✓ Easy to use Single Button Mode of Opening-Stop-Closing
✓ Partial Opening of Gate (Pedestrian Mode Feature)
✓ Automatic Closing Timer Adjustable in one second increments up to 4 minutes
✓ Automatic learning of the gate
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System (Mains & External Power Supply System ONLY)
✓ 24V Low Voltage Power for all accessories directly through the gate controller
✓ Auxiliary Outputs

Multiple Configurable Safety Inputs

✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.
✓ Photocell for Closing Input
✓ Photocell for Opening and Closing
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.

Wired and Wireless Access Control Support

✓ Keypads Wired or Wireless Secure PIN Number access (BE.CODE)
✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times

Working Modes and I/O

✓ Normal Remote Operation (Open-Stop-Close)
✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer (240 Seconds Max.)
✓ Configurable Inputs for OPEN/CLOSE and Shared Input of Start Command of OPEN and CLOSE
✓ AUXILLARY Outputs (x2) For preset functions such as logic based courtesy light control or Control by an additional button on the remote.

Dimensions

Automatic Sliding Gate System Specifications


Operating Voltage 24V
Maximum Gate Size 8 Meters (package is supplied with 4 Metres of gear rack which is adjustable in the kit contents tab)
Maximum Gate Weight 600KG
(Slope is a multiplier of weight)
Duty Cycle 20°C (Intensive Use) - 50°C (40 Cycles/H)
Speed (23CM/S) 14 M/MIN
Standby Consumption 30mA
Supports Battery Backup Yes, 24V DC (With Energy Saving)
Light Support Yes, Warning Light + AUX Outputs (Logic Based)
Accessories Voltage Yes, 24V DC
Safety Inputs Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button
Operating Temperature -20°-50°C
Maximum Remotes 2048




Beninca TO.GO4A

Sleek, Modern, Stylish and Easy to Use the TO.GO4A Remote Control allows for utilization of Pedestrian Function and Normal Gate Operation with the Allowance for control of another Gate/Garage Door with the Unused buttons.
