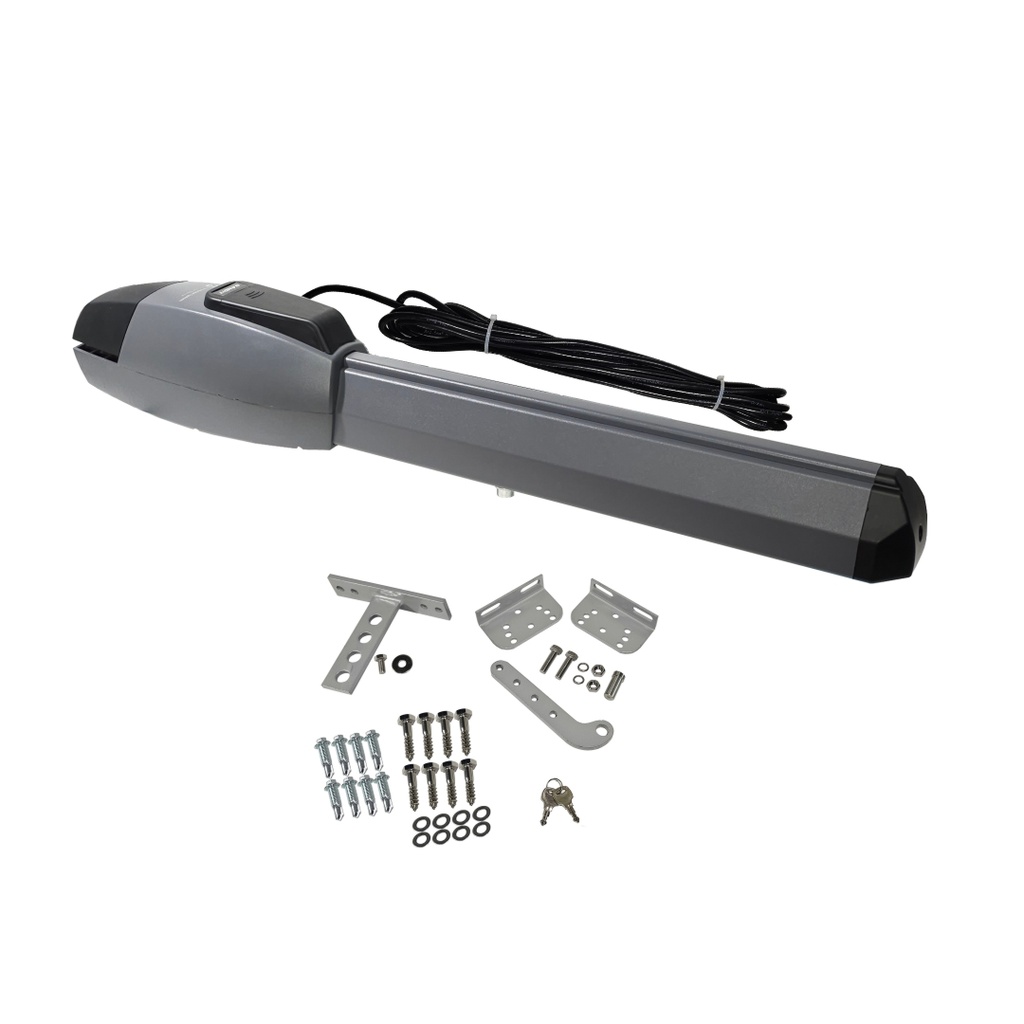

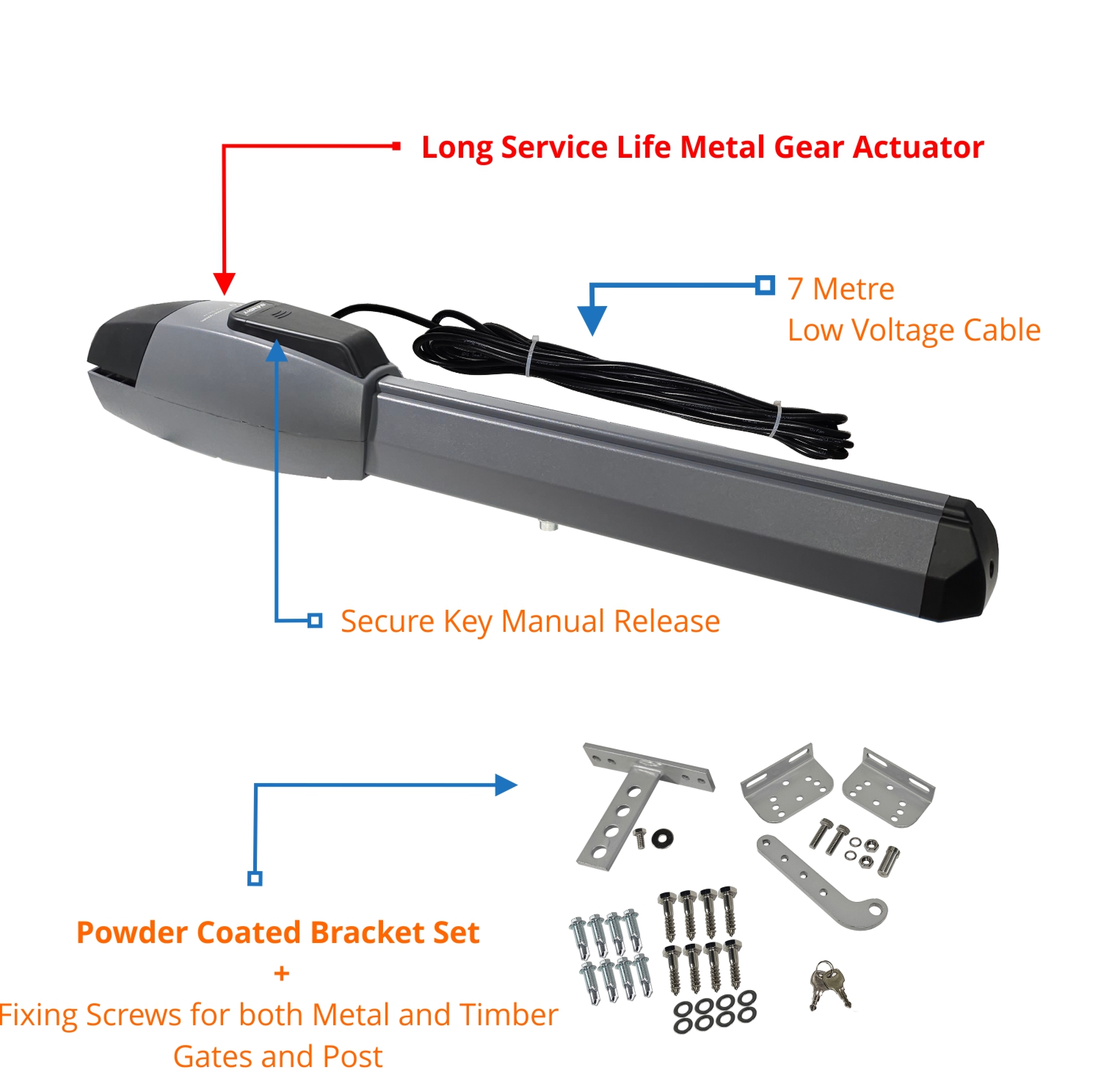

Bandit 24V Automatic Driveway Electric Gate Linear Actuator with 7 Metre Cable

The Bandit Linear Actuator kit is a robust yet compact length heavy duty automatic driveway gate motor with TWO unique features. Firstly designed to step down to the gate rail this allows for a characteristic which many other gate motors cannot provide in a case where there may be a retaining wall (or other obstacle) in the path of an inline linear actuator the bandit allows for the operator to sit higher up on the post side and steps down by 50mm to suit the gate rail.

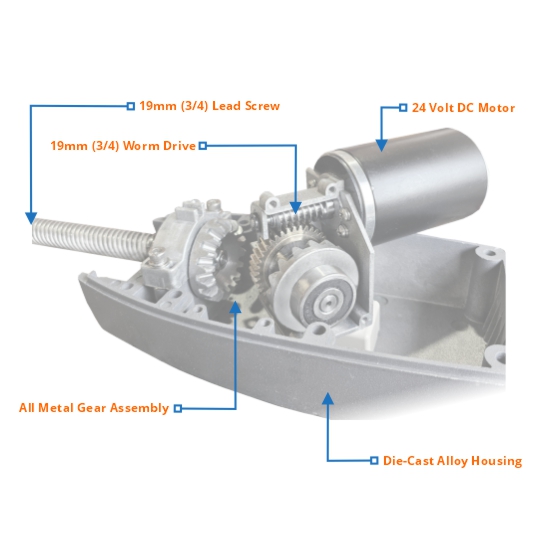

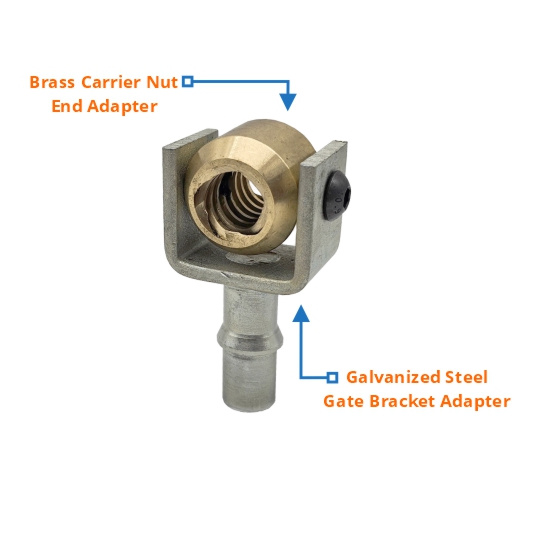

Secondly The driven carrier nut (brass) is attached to a galvanized steel gate adapter which allows a swivel motion to occur suiting gates that have out of line hinges causing a minor rise or tilt of the gate in operation. Constructed from a solid Die-Cast Alloy housing along with a solid die-cast and brass inner spider gear design. It operates Quickly and Quietly thanks to the low noise and 90% duty cycle 24 Volt DC motor system. End positions are set by easy to adjust limit micro switches for both the open and closed positions.

Absolutely no compromises or shortcuts are taken with the Bandit with a a 35mm brass driven carrier nut, a 19mm (3/4") worm drive on the DC motor and then a 19mm (3/4") lead screw for the carrier to travel on. This gate actuator is built for a lifetime of use.

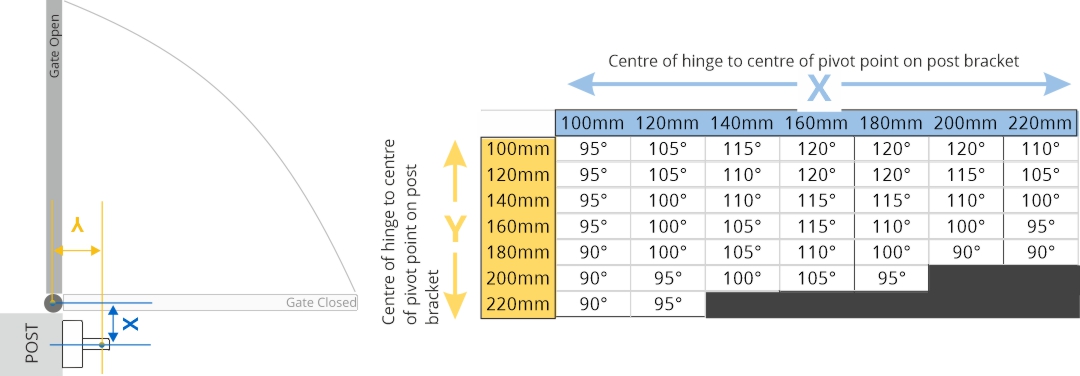

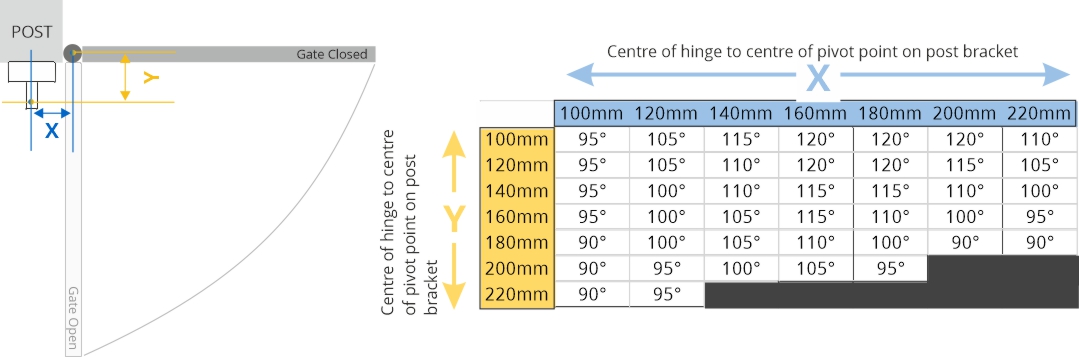

The laser cut steel brackets for the gate and post cater for all installations allowing for up to 16 different mounting configurations to achieve the desired pivot geometry for either pulling inwards to open and also pushing outwards to open installations. The post bracket assembly consists to three parts, the top and bottom plates are 4mm thick each whilst the curved tongue is 8mm thick. The total thickness of the post bracket assembly when assembled is an outstanding 16mm.

 The Bandit has the ability to work with gates from as short as 800mm and as wide as 3m (10ft) with a maximum weight of 450kg, if a wider gate is installed please see the Commando series gate actuators.

✓ Fast and Quiet Operation
✓ 100% Die-Cast Alloy Outer Construction
✓ Die-Cast and Brass Inner Spider Gears
✓ 19mm (3/4") DC motor Worm Screw and Actuator Lead Screw
✓ Swivel Connection for the gate bracket
✓ Step down installation method

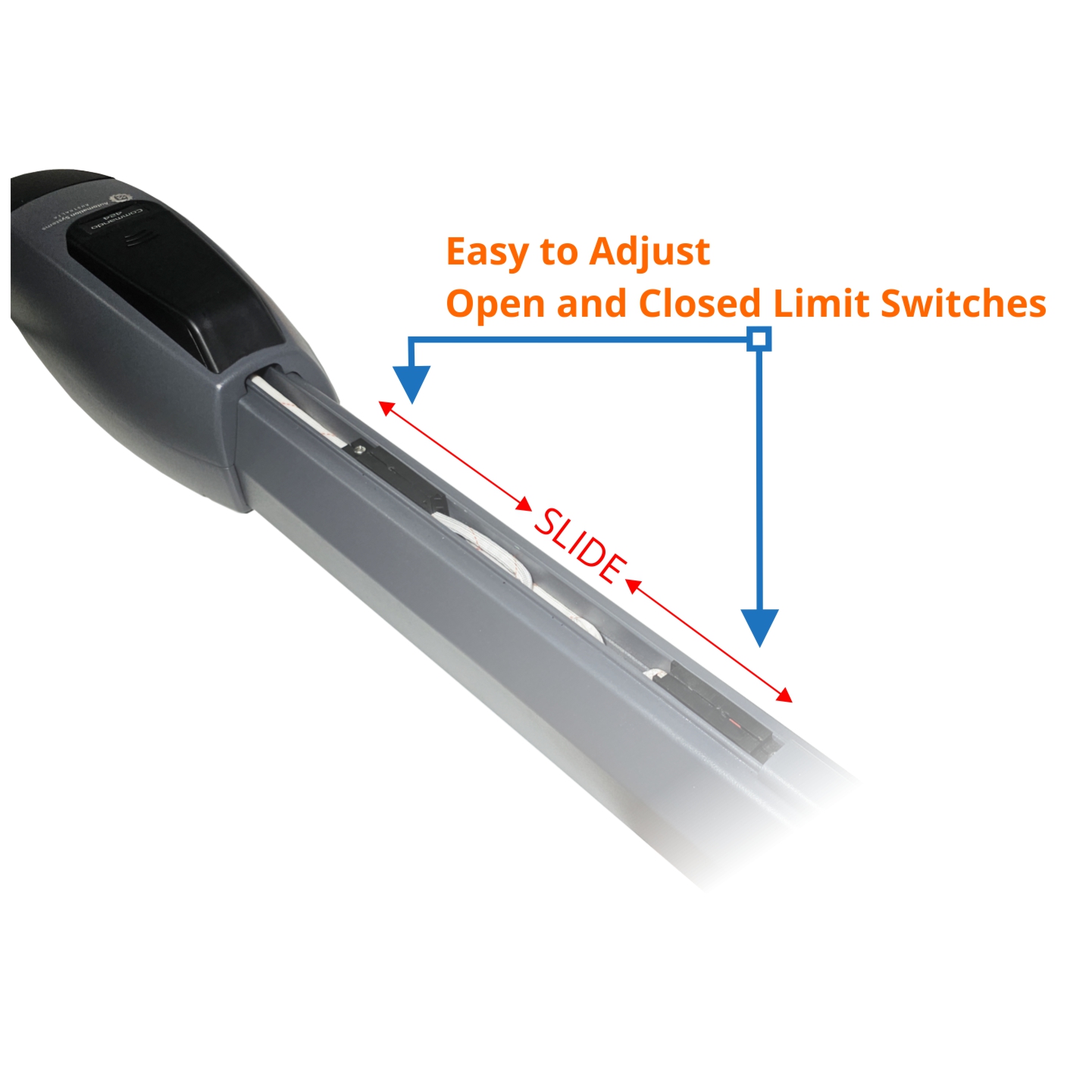

✓ Open and Closed Position ADJUSTABLE micro switches with In-Built controller-Only Two Wires Back to Gate Control Box

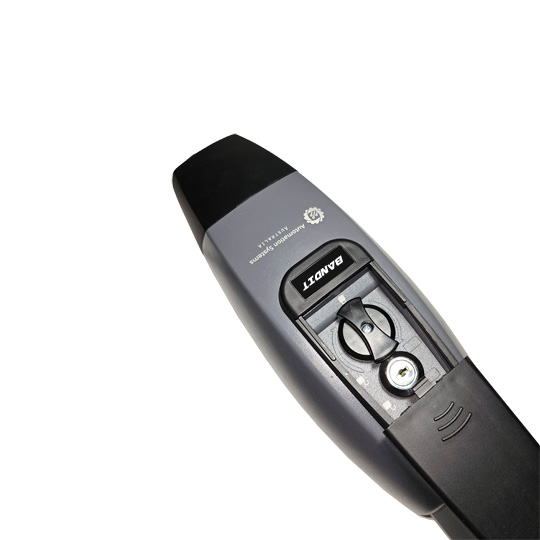

✓ Secure Key Unlock Manual Release System
✓ Flexible and vast installation geometries
✓ 1.5mm Double Insulated PVC Cable
