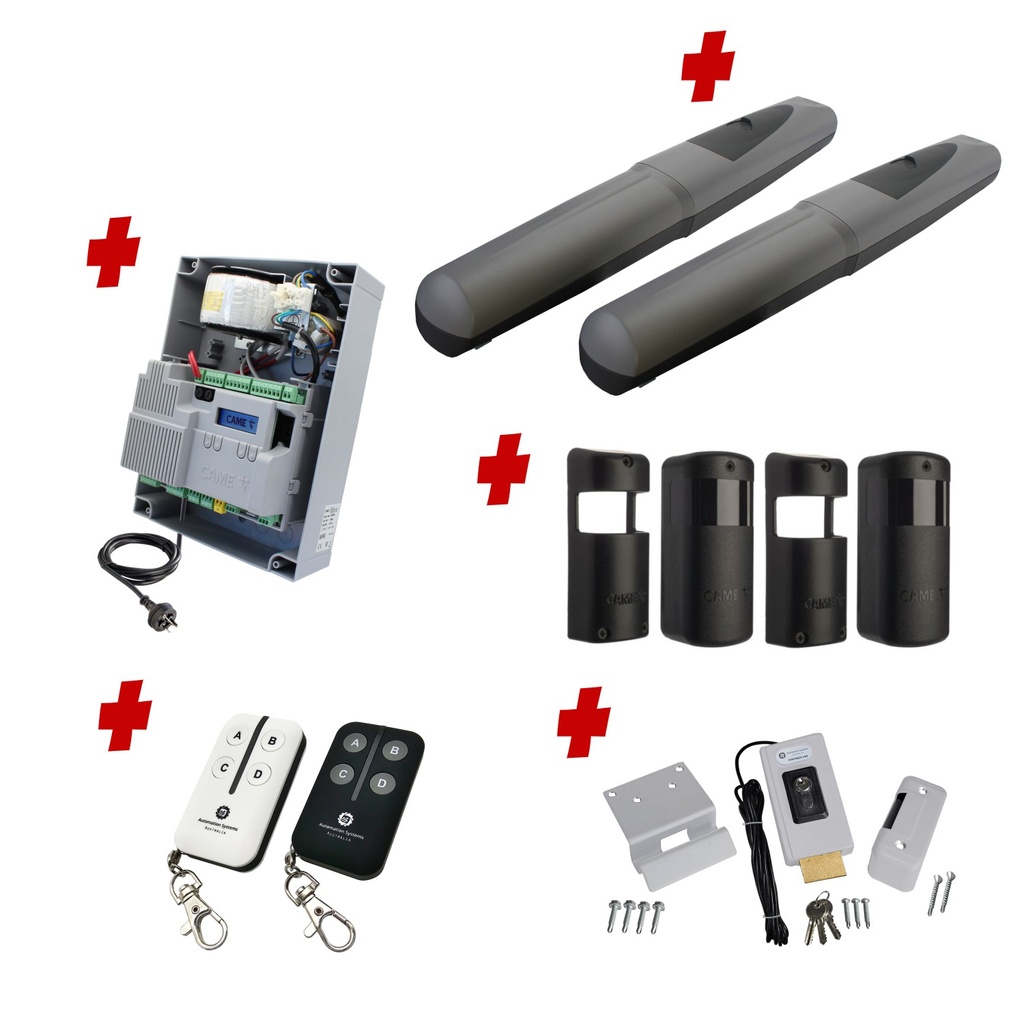

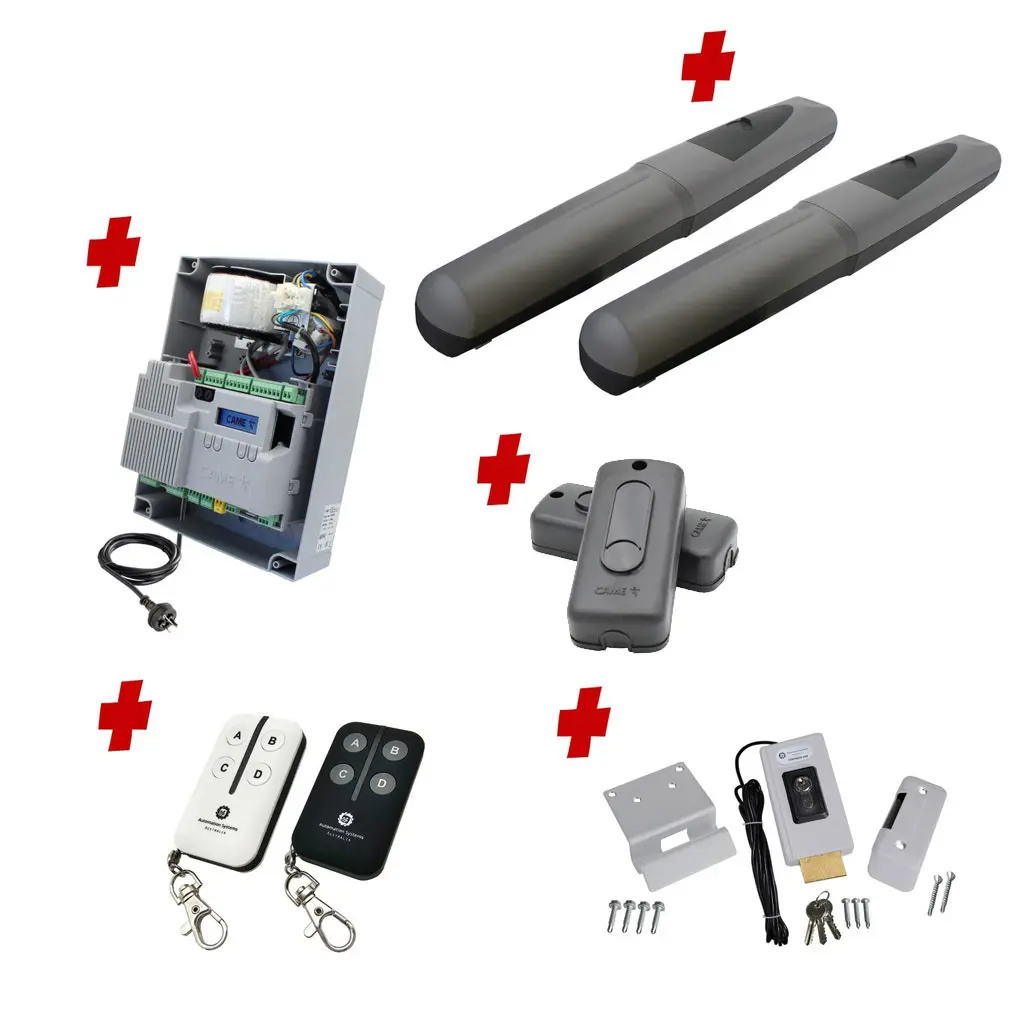

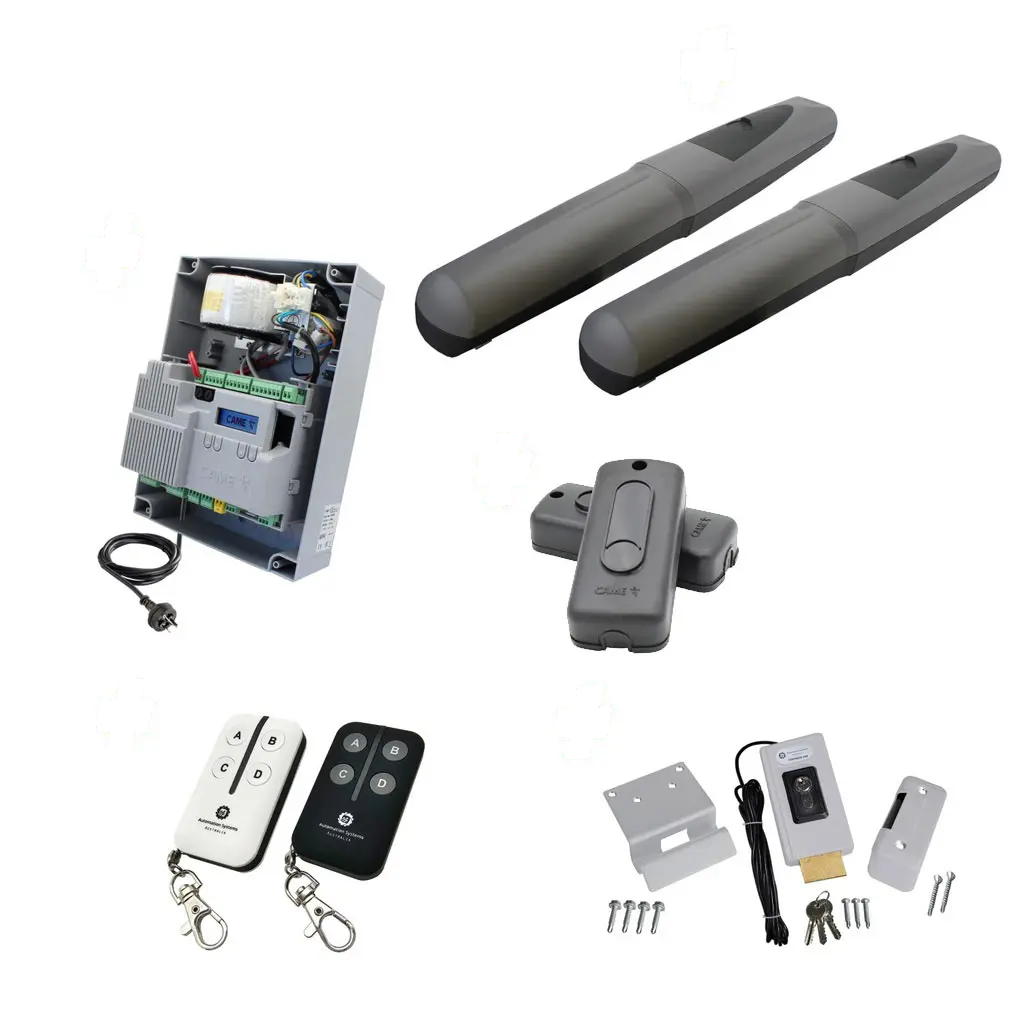

AXO 3 Super Duty Commercial Electric 24V Low Voltage Automatic Double Swing Driveway Gate Opener Kit ROBUST Heavy Duty Design for Trade Installers
| Gate Opener Brand: CAME |
| Warranty: 2 Year |
| Swing Gate Thrust/Torque: 4500N |
| Model: AXO 3 |
| Maximum Swing Gate Size (each): 3m |
Super Duty High Torque Linear Actuator with Encoder and Limit Stops
The Axo series Linear Actuator is a high torque, high duty cycle encoder controlled motor. Extremely strong it can be used from short gate installations as well as a complete driveway gate opening up to 6m (2x 3m) or 800KG in weight per gate. A long stroke version is available if required for up to a 10m opening. With the Axo's wind tolerance and higher torque it can even be used with clad/covered gates in conjunction with an electric lock.
Furthermore the AXO 3024 is a compact design of only 100mm in width, 123mm in height and an overall length of 880mm keeping it discreet.
The versatile swivel tail system allows for flexible mobility in the gates travel which is seldom seen in the design of the actuator and the bracketing system is supplied at full size ready to cut down and weld to suit most installation geometries.
Adjustable Limit Stops
With the built in and adjustable open and close position stops allow for the simplest and easiest setting of the open and close swing angles, completely adjustable they allow for forward/back slide movement and are tightened with a spanner to lock against the cast in bite points.
Complete Alloy bodied with a stainless steel lead screw allows for its superior high torque delivery.

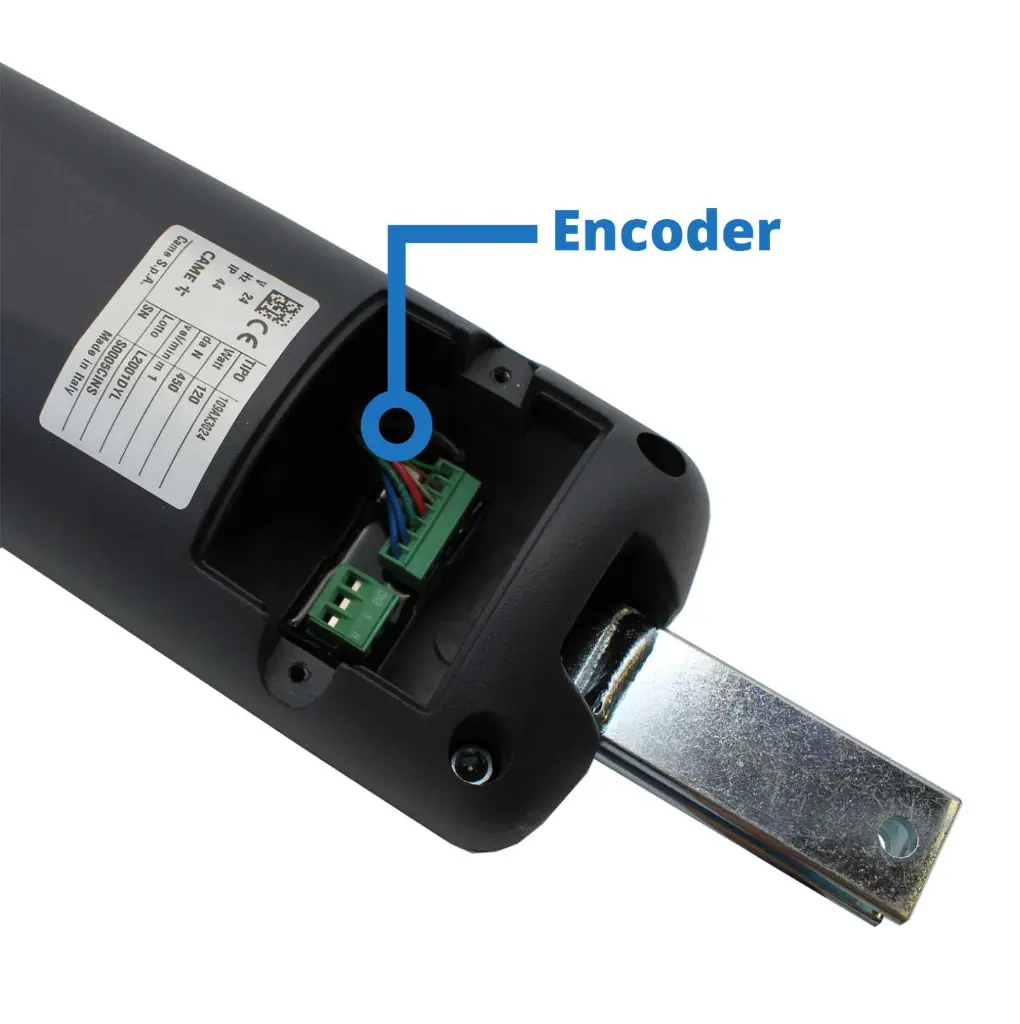

Built In Encoder
Undisputedly the best technology the encoder motor is standard and will feedback to the system where the gate motor and effectively the gate is in its travel through the entire cycle.
Allowing for reliable operation regardless of any changes in operation be it due to temperature, wind or other factors. This is the technology you can rely on for constancy and peace of mind.
Swivel System
Typically a linear actuator is a rigid unit and has very little tolerance for up-down movement in the gate however with the swivel system there is now some allowance, typical scenarios that would utilize the swivel would be gates with a support wheel, gates with a slight sag or gates with misaligned hinges. Note that this will not support rising gates.
Conduit Feed
Supplied with a 20mm corrugate conduit gland this allows for the best protection of the actuators cable without any modifications required to the structure. If required it could be replaced with a typical cable gland.

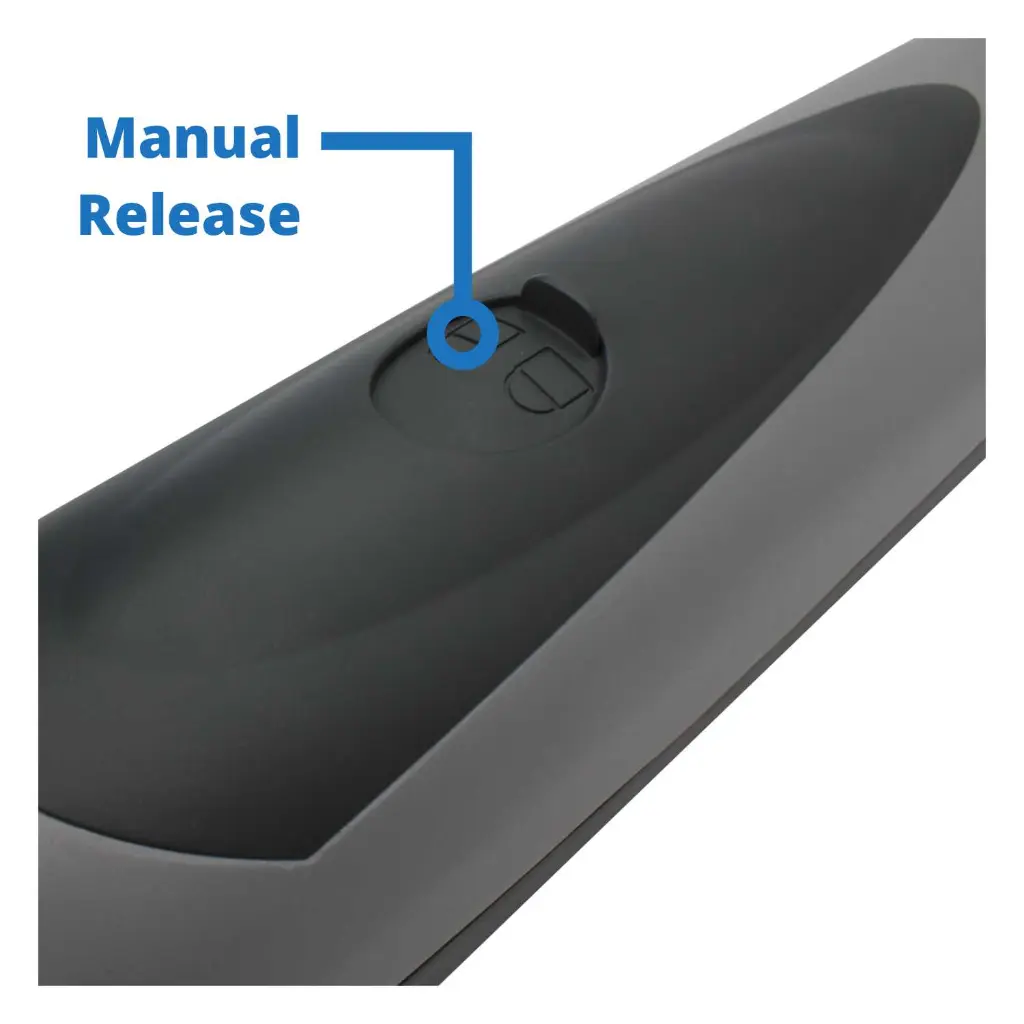

Manual Release System
In the case of a power outage, simply slide open the cover and using the supplied key you can release the actuator. Once release you can open and close the gate by hand until ready to re-lock.
If required there is an optional battery backup system available which will fit directly into the systems control box allowing for uninterrupted operation.
Installation Geometry
Actuator Dimensions
Specifications
| Maximum Gate Length | 3m each |
| Maximum Gate Weight | 800KG each |
| Maximum Opening Angle | 110° |
| Encoder | Yes |
| Motor Power (Volts) | 24V DC |
| Power (Watts) | 120W |
| Operating Temperature | -20° to +55° C |
| Stroke | 300mm |
| Thrust (N) | 4500N Max |
| Duty Cycle | 100% |

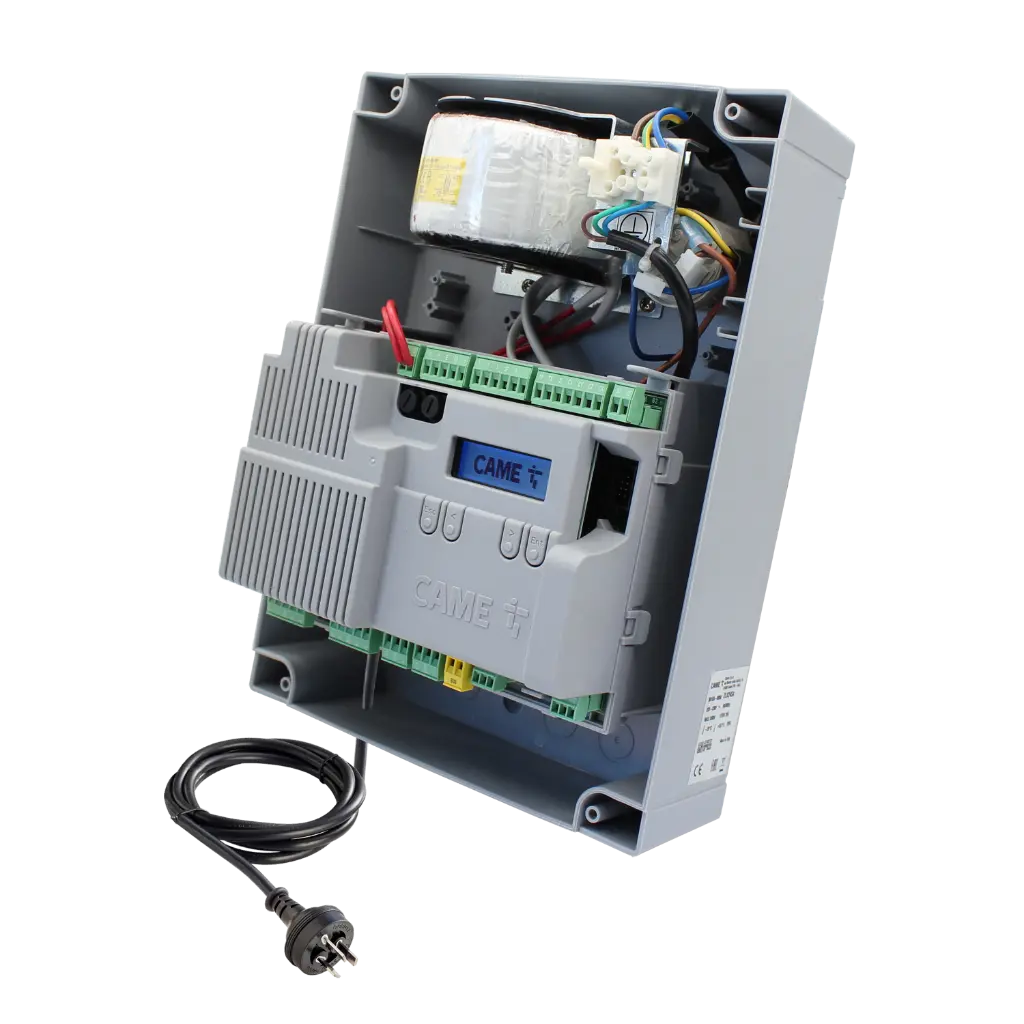

Top of the Line ADVANCED Digital Control Box
The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.
Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.
The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.
Overview of the Features
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input24V Power Output For AccessoriesAutomatic Weekly Timer
Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).
Selective choice of the 7 Days of the week settings, or the entire week 12/24 Hour FormatEACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated
Configurable Methods Of Operation
Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.
ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screenFull Gate Operation by remotePartial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)Open Only by remoteClose Only by remoteOpen/Close Input by Wired AccessoriesOpen only Input by Wired Accessories (loop Detector)Close only Input by Wired Accessories (loop Detector)Wired Emergency STOP ButtonRemote Operation
The remote buttons can individually be programmed to work in any of the below settings for each button.
OPEN-CLOSE (Reverting action if pressed part way through a cycle)OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)Partial-Pedestrian OperationRELAY OUTPUT/STAY OPEN Feature (Pause automatic close)Motor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER ControlAutomatic Calibration (with Adjustable Calibration Speed)Motor Test (used for checking your directions prior to calibration)Adjustable ThrustAdjustable Travel SpeedAdjustable SensitivityAdjustable Slowdown SpeedAdjustable Slowdown Position (Two Stages)Delay Time Between Motors for OpeningDelay Time Between Motors for ClosingSafety Devices
Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.
Supports Photocell SensorsSupports Reflective SensorsSupports Safety EdgeSupports Induction Loops for SafetySupports STOP ButtonSupports Maintained Action (Hold to OPEN/CLOSE)Added Electric Lock Security
Added protection for the gates and gate system if wind is a factor or in a high risk setting
Automatic Electric Lock (Adjustable Time) with Reverse Thrust FeatureTWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).
Control Board Security
A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.
Light Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSEDAdditional Output for Flashing During OpeningOperational Control
Infinite support for accessories and methods of operation
Remote ControlsWireless KeypadsWired KeypadsWired ButtonInduction LoopsIntercom SystemsRelay Output B
Default Can be set to work on a remote button and/or by the weekly timer
Set to a latching ON/OFF CircuitCan be used to trigger an alarm, garage door or another gateCan be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.
Dimensions
STX4K Keyring High Range Remote
The Four buttons allow for usage of multiple features available from the gate system controller as well as the use on other gates and garage doors through the use of an external receiver (available separately).
Key Features
✓ Up to 100 metres distance in open air✓ Keeloq rolling code security
✓ Easy to Use yet SLIGHTLY set in buttons to prevent accidental operation
✓ Clear visibility red LED indicator which will illuminate upon a button press
✓ Hard plastic buttons to prevent stuck in buttons and splits from finger nails
✓ Slimline and modern ergonomic design
✓ Can work with garage doors, other brand gates, alarms etc. through the use of a remote receiver module
Premier SW24 Advanced Digital Automatic Gate Controller
Also boasting multiple safety inputs along with its precise on-board detection it allows safety to remain prioritized for any application. with the optional plug and play battery back-up system you will be sure not to ever be locked out of your property. The installation process is always kept in mind allowing up to 7 cable inputs into the outdoor weatherproof gate control box using IP68 cable glands, you will never run out of space or provisions for more. The genius automatic learning system, hold one key to enable and begin the automatic learning of the gate system and automatic definition of the ramp up and slow down points, its as easy as it gets suiting all skill levels from DIY once off installs to professional installers. Ready to plug into an ordinary power point there is NO high voltage wiring required, All connections are Low Voltage and safe for all installers regardless of the skill level without the concern of electrical shock.
Automatic Gate System Features
Features as Standard
✓ Easy to use Single Button Mode of Opening-Stop-Closing including the "Stay open" feature✓ Open one gate Pedestrian Mode Feature
✓ Automatic Closing Timer Adjustable in one second increments up to 5 minutes
✓ Automatic learning of the gate + Fine tunable operating Times
✓ Soft Start (Ramp UP) and Soft Stop/Slowdown (Ramp DOWN)
✓ Adjustable Slow Down Speed and Time
✓ Optional Plug and Play Battery Backup System
✓ Fortress Series Electric and Magnetic Lock Support
✓ Low Voltage Power for all accessories directly through the gate controller
✓ Warning Light Output
Multiple Configurable Safety Inputs
✓ Obstacle Detection by load This feature is always running and detecting if the gate is stalled under load by an obstacle during its travel.✓ Typical Photocell Input Terminal to prevent gate from closing on vehicle, reverts gate if a vehicle passes through during closing, restarts the Automatic closing timer after each interruption.
✓ Photostop Input, Same as the typical photocell input with an added feature of preventing the gate from opening if the photocell is blocked. Handy for short driveways and also opening outwards installations.
✓ Special Detector Input to tell the gate to close two seconds after the vehicle passes, perfect for higher security applications (and also escaping dogs).
✓ Safety Edge Input Installed on to the gate, safety edges allow for a return to open if the edge of gate is to touch an obstacle.
✓ Emergency Stop Button This feature allows for a manned button to immediately stop the system open pressing.
Wired and Wireless Access Control Support
✓ Keypads Wired or Wireless Secure PIN Number access (Tekno K1/Dex4)✓ Press Button Simple button operation
✓ Mobile APP Control Cloud based and operatable anywhere in the world (Tekno WF)
✓ Doorbell Intercom Systems
✓ Exit Wands and Induction Loops To automatically operate the gate upon vehicle presence
✓ GSM 4G Technology Operate the gate by phone call (or intercom phone call) (Tekno 4/Tekno S1)
✓ Weekly Schedule Timer To automatically operate the gate based on a programmed daily/weekly operating times
Residential, Commercial and Complex Working Modes Options
✓ Normal Remote Operation (Open-Stop-Close)✓ Normal Remote Operation (Open-Stop-Close) with Automatic Closing Timer and "Stay Open" feature (299 Seconds/5 Minutes)
✓ Typical Complex - Individual Open and Close Command Inputs
✓ Typical Complex - Individual Open and Close Command Inputs with Automatic Closing Timer "Stay Open" feature by wired input (299 Seconds/5 Minutes)
✓ Secure Complex - Open Only Command Inputs with Automatic Closing Timer (299 Seconds/5 Minutes) "Stay Open" feature by wired input
OPTIONAL Uninterrupted Battery Backup System
Automatic Gate System Controller Specifications
| Operating Voltage | 24V |
| Duty Cycle | 70% |
| Standby Consumption | 20mA |
| Supports Battery Backup | Yes, 24V DC |
| Automatic Gate Lock Support | Yes, 24V DC |
| Light Support | Yes, 24V DC |
| Accessories Voltage | Yes, 12V DC |
| Safety Inputs | Photocells, Safety edges, Induction Loops, Edge Sensors, Emergency Stop Button |
| Operating Temperature | -10°-60°C |
| Maximum Remotes | 192 |
Control Box Dimensions
Automatic Electric Lock and Magnetic Lock Options

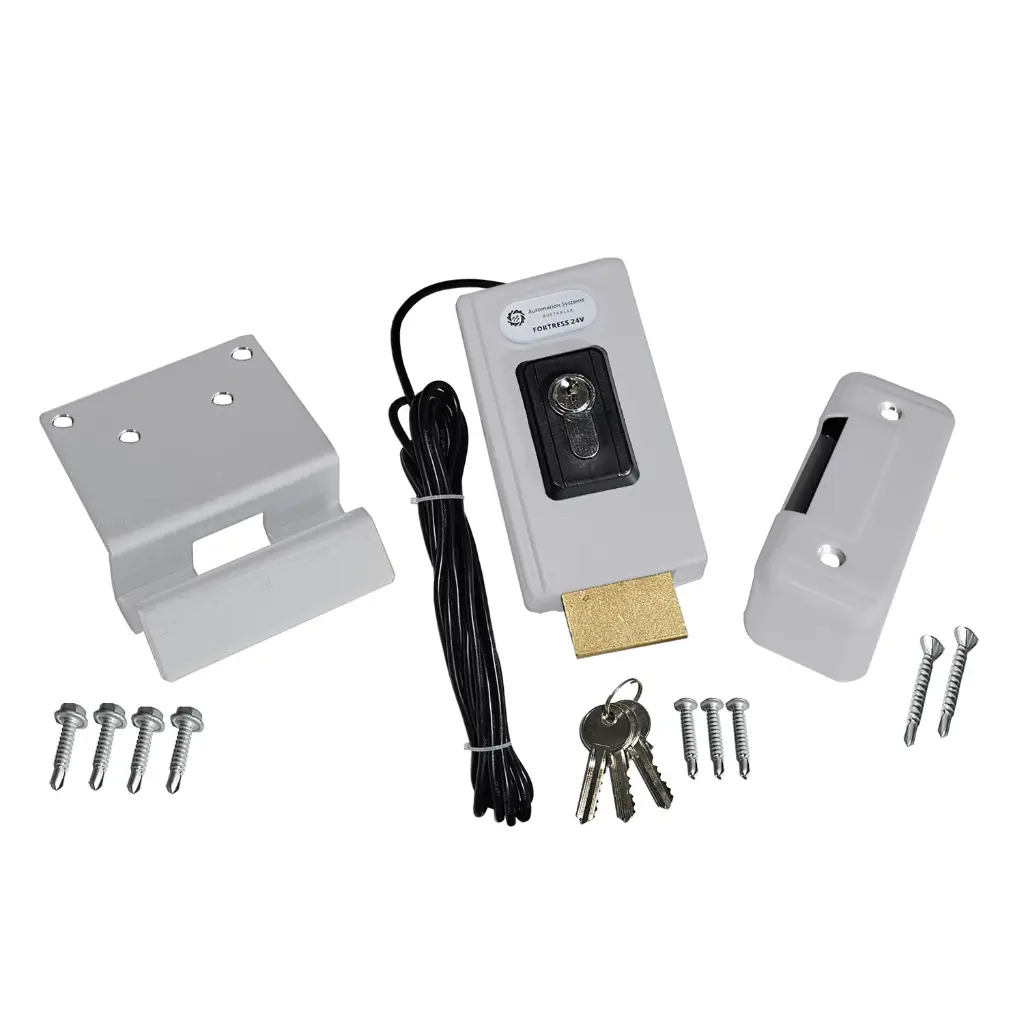

Fortress EL Automatic Gate Lock
The Fortress EL totally AUTOMATIC electric gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security.Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.
The Fortress EL is supplied with both a gate to post latching plate (for single gates) and also a gate to ground latching plate (for double gates to be used with a metal gate stop).
For double gates a rebate/lip should be installed on the front of the trailing gate to prevent it being pushed past the locked gate (essentially both gates are locked this way).
Key Features
✓ Zero power consumption when locked in standby
✓ All metal construction
✓ Works with the gate controllers battery system
✓ Release keys supplied in-case of total power loss
✓ Easy 2 Wire connection
✓ flexible installation
Fortress ML Automatic Magnetic Gate Lock
The Fortress ML totally AUTOMATIC Magnetic gate lock system allows for a secure hold over the gate particularly handy when the gate is wide, prone to wind resistance or in an application requiring an additional layer of security. Prior to beginning the gate operation the electric lock first unlatches then begins to move the gates to the open position, during the closing the lock will automatically latched closed when reaching the end of cycle.The Fortress ML is designed to work with both gate to post (for single gates) and also a gate to gate (for double gates to be used with a metal gate stop).
The benefit in using a ML series Magnetic lock over an EL series Electric lock is that ML magnetic lock allows for an automatic release from the system as per normal in a circumstance where the lock is loaded by wind resistance whereas the electric lock cannot release whilst loaded by wind resistance.
Key Features
✓ Waterproof Stainless Steel Case with resin filled core
✓ 280KG Holding Force
✓ Works with the gate controllers backup-battery system
✓ Can still unlock under load when commanded
✓ Easy 2 Wire connection
✓ flexible installation

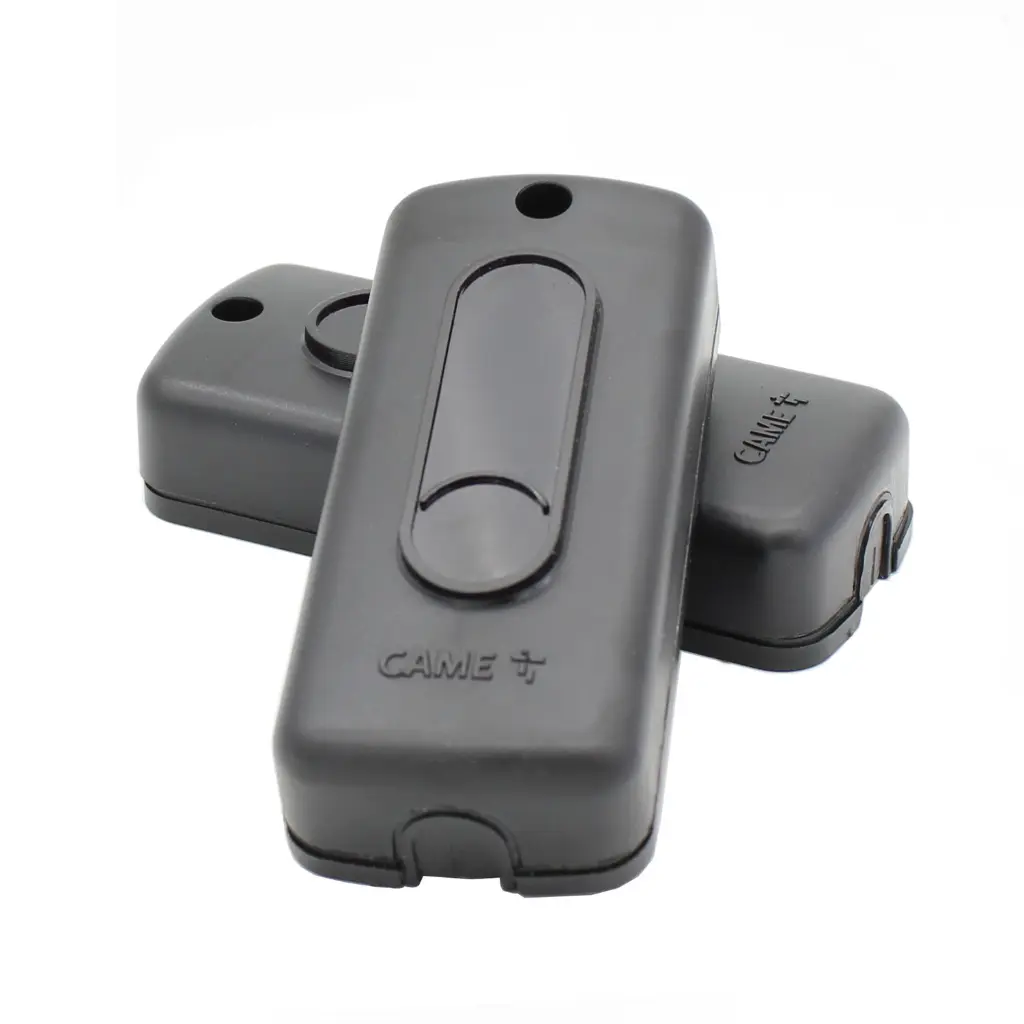

DIR10 Photoelectric Sensor
The DIR10 Photocell is an easy to install high grade unit with excellent build characteristics as the front covers are of polycarbonate material for added strength and durability.
It is versatile in its operating voltage of 12-24V AC OR DC and is wired in a daisy chain configuration from system to the first cell and from the first cell to the second cell. It can be used for up to a 10 meter distance between the photocells.
Cable can be brought into the photocells from either the backside OR externally through the bottom of each photocell meaning one type of photocell caters for all methods of install.
