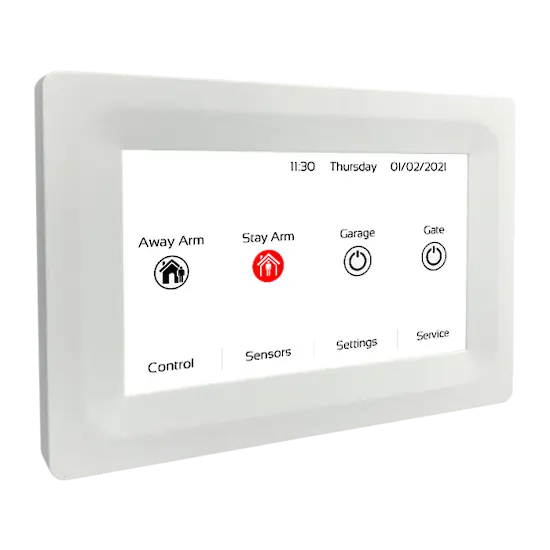

EC Touch 5" Main Panel (White) with Status Monitoring, Arm/Disarm Etc.
Part No:
EC-TOUCH W
Intuitive user interface for smooth alarm
operations, custom programming & review
without the use of a manual. Select your own
themes, screen savers & background images
to suit your home or business
Up to 10 quick access buttons can be added
to the EC-TOUCH home screen for security,
control or a combination of your choice
Features
Intuitive graphic user interface
5 year warranty
5" touch display
Sharp 800 x 480 pixels
Simple surface mount installation
Built in SD port for custom images
Includes 500MB micro SD card
Setup wizard (V9 systems only) for simple installation
New Zealand designed & manufactured
Available in white or charcoal
Setup Wizard (note V9 systems only)
Setup Wizard can be used for
basic installer programming of
ESL-2, ESL, Elite S & Elite S Lite
V9 control panels
Wizard includes: User names/codes,
sensor names, entry delays, exit delay.
wireless remotes, app/3rd party
monitoring configuration
& time/date
Specifications
Resistive touch
Voltage - 10 to 15VDC
Current - Constant 250mA, Max 500mA
Max Cable Run - 30m/0.22mm & 80m/0.44mm
Recommended mounting height - 1500mm
Bus Connection to ESL-2 or ESX control panels
Covers horizontal flush boxes
