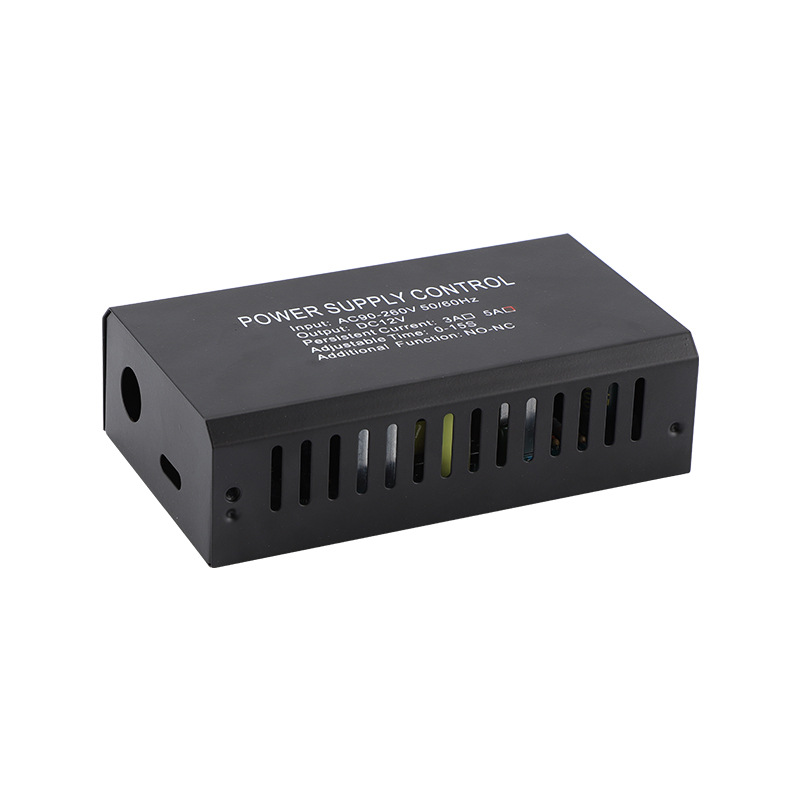

Access Control Power Supply For Electric Lock, Electric Striker Plates and Magnetic Locks
Lock Control Power Supply
This lock control power supply is not suitable for outdoor use UNLESS installed in a plastic enclosure (PREMIER-BBOX-L), it should not be installed in ceiling spaces to prevent overheating.
Automatic lock control power supply suitable for electric locks, magnetic locks, electric bolts, access control keypads, em card readers and alike.
The lock control power supply can power devices continuously for a maximum of 3 Amps and with an allowance for a spike up to 5A (electric bolts and fail secure solenoid locks).
Suitable for integration with intercom systems, access control systems, exit buttons and other devices with a voltage free relay contact into the exit button input OR devices with a momentary voltage output of 5-30V DC into the control input.
Supplied with a short battery harness (extendable) the power supply can utilize a 12V battery (typically a 7aH) for continued operation in a case of power outage.
Access Control Power Supply Specifications
| Input Voltage | 90-260V AC |
| Output Voltage | 12V DC |
| Accessories Constant Voltage Terminal | 12V DC |
| Max Current | 5A Momentary, 3A Continuous TOTAL |
| Supports Battery Backup | Yes, 12V DC (F1 Terminal Harness - Short Length) |
| Lock Types | Fail Secure(NO)/Fail Safe (NC) |
| Exit Button Suport | Yes, Voltage Free N/O Momentary Contact |
| Exit Button Timing | Adjustable, 1-15 Seconds |
| Control Input | Yes, 5-30V DC Polarized |
| Operating Temperature | -10°-60°C |
