880mm x 1250-1300mm High-Low Spear Design Steel Pedestrian Gate (Satin Black Powder Coat)
Part No:
HLSPEAR13-880
Bulky Item

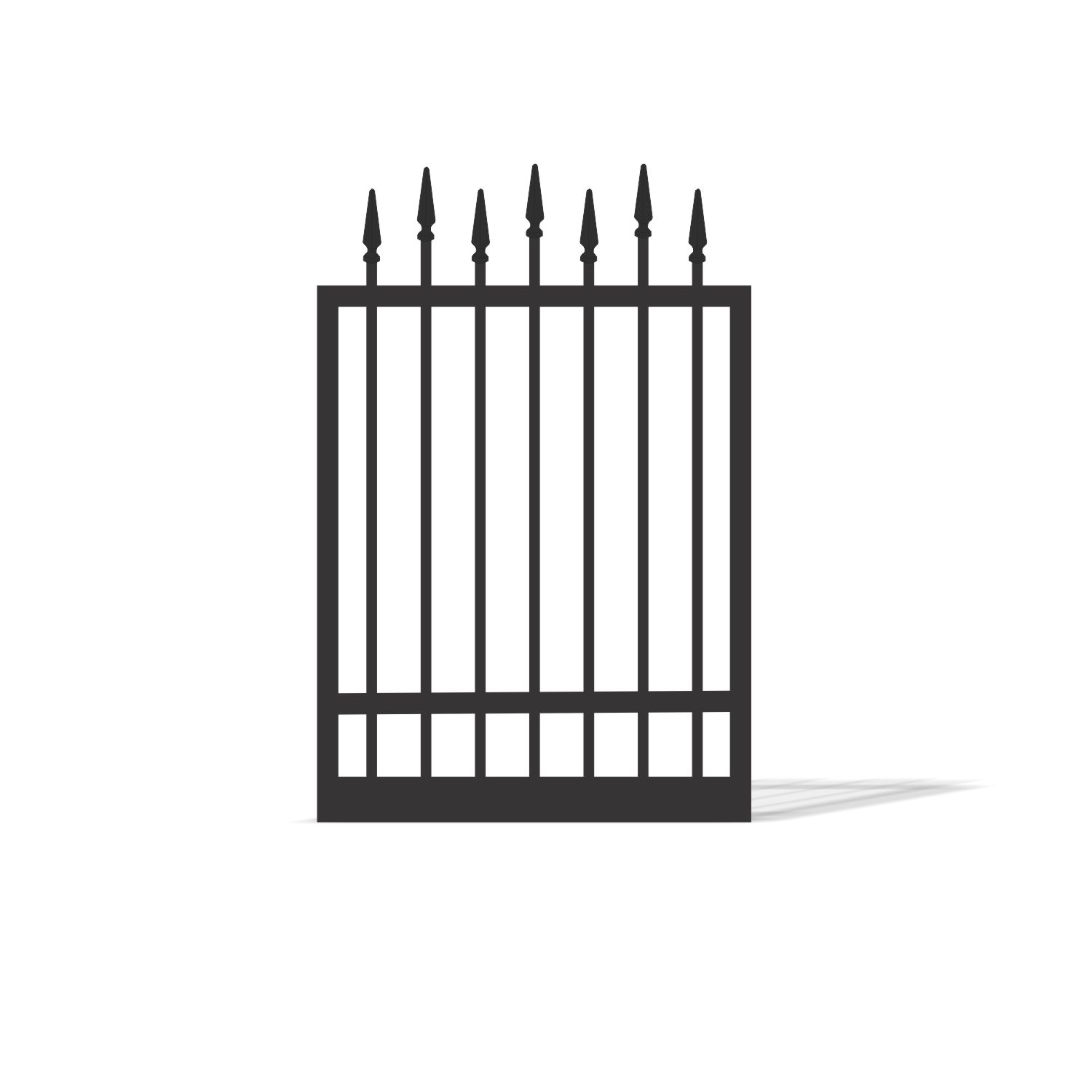

Driveway Pedestrian Gate with High Low Spears
The High Low spear design gate provides great security whilst retaining a homely appearance. Every second spear rising above the top rail of the gate alternates between the lower height and higher height providing a peak height of 1.3m on the highest spears and 1.25mm on the shorter spears.
The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top, Sides and Horizontal Rails) and steel pickets (19mm), every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top, Sides and Additional Rails
✓ 19mm Pickets Welded at 4 TOP Points Per Intersecting Rail
✓ High-Low Spear Design

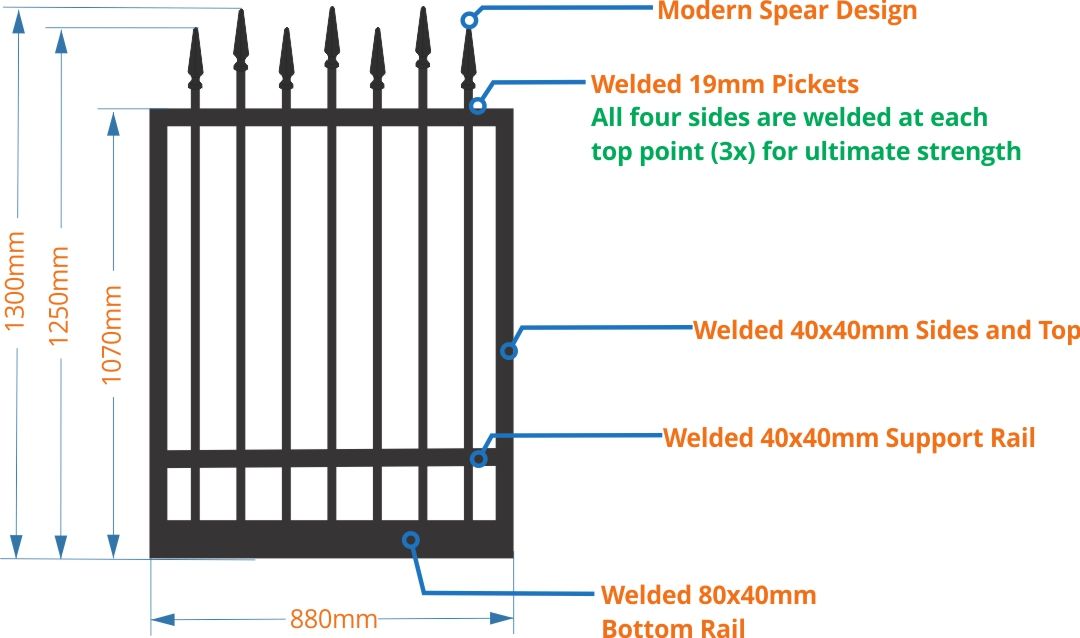

Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 880mm EACH |
| Height of Gate Panel | 1250mm to 1300mm |
| Additional Space Requirements | 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate) |
