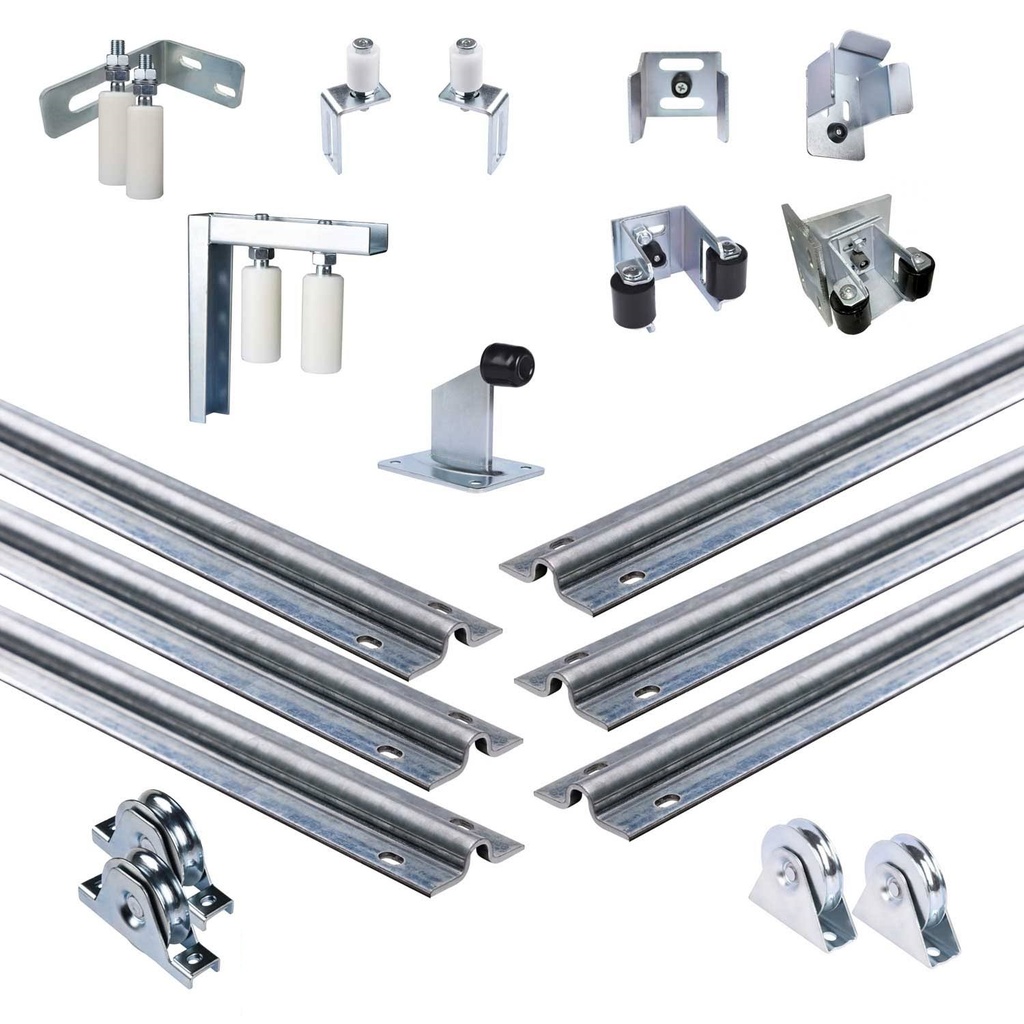

(5.8m – 6.2m) Complete Residential Sliding Gate Hardware Package Kit suitable for Steel, Aluminum and Horizontally Cladded Gates (5.8m, 5.9m, 6m, 6.1m, 6.2m meter gates)

100mm White rollers with 175mm Bracket
The 175mm overhead bracket allows for an adjustment up to maximum total gate thickness of 75mm. This is the standard option typically used with 40/50mm thick gates without external cladding and allows for minor adjustment.

100mm Black rollers with 210mm HD Bracket
The 210mm Longer overhead bracket is typically the go to in most cases when flexibility and best adjustment is key. Allowing for a large adjustment area up to maximum total gate thickness of 115mm. Using an overhead bracket and roller arrangement as it allows for all standard gate thickness and also surface mounted horizontally clad gates or gates that need a larger set back away from the post. It is constructed of DUAL C channels providing the best rigidity and with no flex under load.

100mm Black rollers with 210mm HD Bracket
The 210mm Longer overhead bracket is typically the go to in most cases when flexibility and best adjustment is key. Allowing for a large adjustment area up to maximum total gate thickness of 115mm. Using an overhead bracket and roller arrangement as it allows for all standard gate thickness and also surface mounted horizontally clad gates or gates that need a larger set back away from the post. It is constructed of DUAL C channels providing the best rigidity and with no flex under load.

Independent roller system (White)
Typically (but not exclusively) used with spear design gates, a guide roller on each side (inside support post also required) WITHOUT the need of an overhead bracket allows for any protrusion above the gate frame to run through without an issue as the rollers contact each side of the gate frame, it does however require the gate to operate on a level grade, if not see the C channel section option with Nylon Block.

Independent roller system (Black)
Typically (but not exclusively) used with spear design gates, a guide roller on each side (inside support post also required) WITHOUT the need of an overhead bracket allows for any protrusion above the gate frame to run through without an issue as the rollers contact each side of the gate frame, it does however require the gate to operate on a level grade, if not see the C channel section option with Nylon Block.
