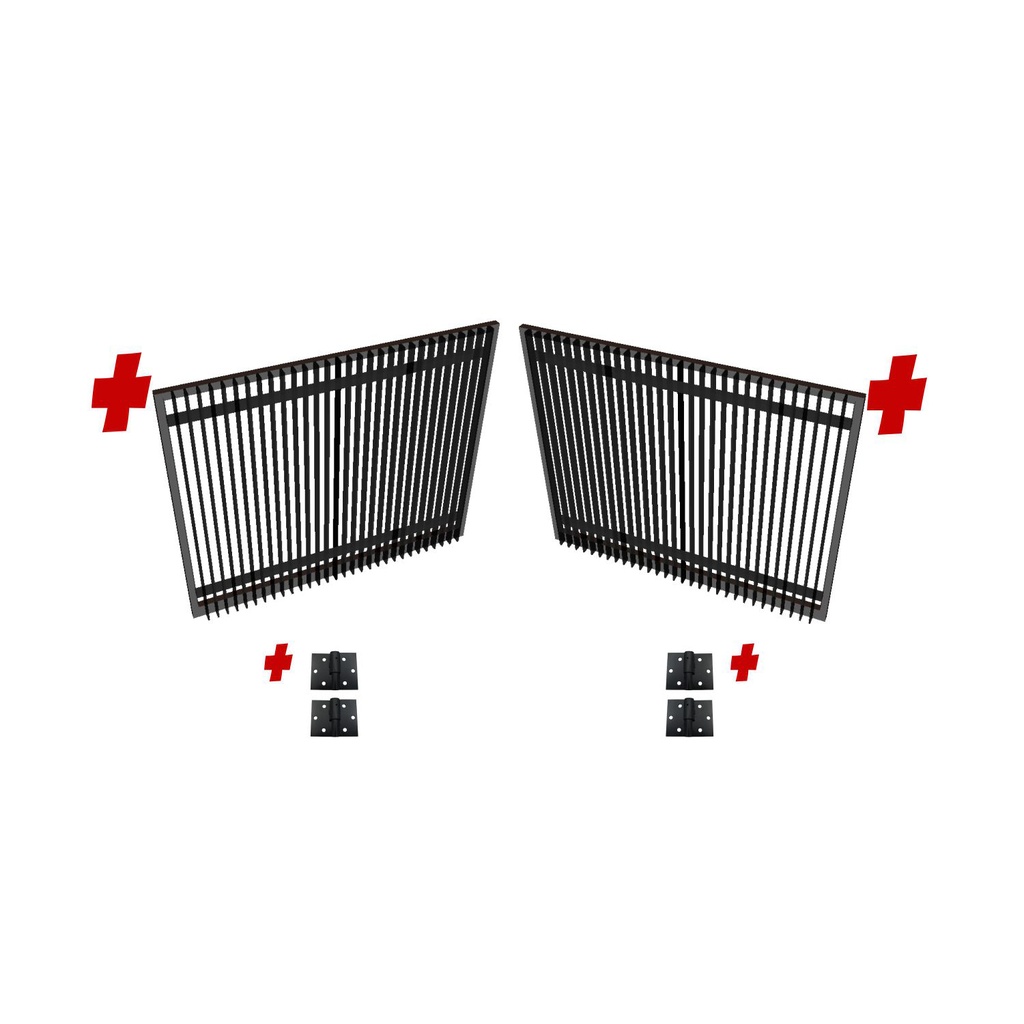

4800mm Double Swing Driveway Gates Opening (1800mm H) 4.8×1.8m Blade Gate + Hinges (Satin Black Powder Coat)
Kit Part No:
FRAME18-2385-BLADE x2+HINGES
Bulky Item
| Gate Frame Colour: Black |
| Design: Vertical Blade Gate |
| Driveway Opening Size (Swing Gate): 4.8m (2385mm Per Gate) |
| Gate Height: 1800mm (1.8M) |
| Includes Automation: No |
Versatile Driveway Swing Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness.
The gate features an open center which does not interfere with internal cladding. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm) and SHS tubing (40x40mm Top and Sides). Every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rail
✓ SHS 40x40 Top and Sides
The gate features an open center which does not interfere with internal cladding. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm) and SHS tubing (40x40mm Top and Sides). Every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rail
✓ SHS 40x40 Top and Sides
Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 2385mm EACH |
| Height of Gate Panel | 1800mm |
| Combined Width | 2385mm+2385mm= 4770mm |
| Additional Space Requirements | 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre |
| Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT | MIN. 4815mm to Max. 4830mm + POSTS |
Blade Fin Sliding Gate System
Simple, Elegant and Cost Effective The Aluminium Blade (Fin) system provides maintenance free and a cost effective solution for modern gate and fencing system. Key benefits over others are:

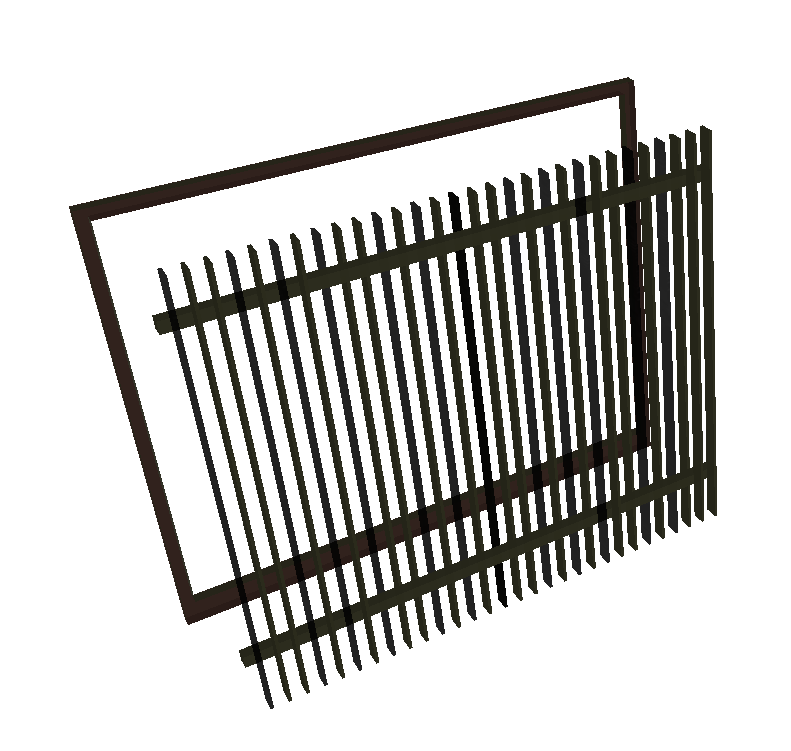

✓ Gate Frame and Sub Structure (Blade System) are separate meaning double the vertical rails (total 4x)
✓ Easy to handle and install
✓ Aluminium caps (NOT plastic)
✓ 40x40 Vertical Rail
✓ 50x10 Vertical Slats (Blade)
✓ Welded to vertical rails
✓ Gate Frame and Sub Structure (Blade System) are separate meaning double the vertical rails (total 4x)
✓ Easy to handle and install
✓ Aluminium caps (NOT plastic)
✓ 40x40 Vertical Rail
✓ 50x10 Vertical Slats (Blade)
✓ Welded to vertical rails
Please note that the blade panels will need to be cut to width during installation and are supplied with the special adapter sockets that allow a direct fixing to the gate frame. Cutting is easy and they will not rust both due to being aluminum material.
Gate Hinge Options
Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.
