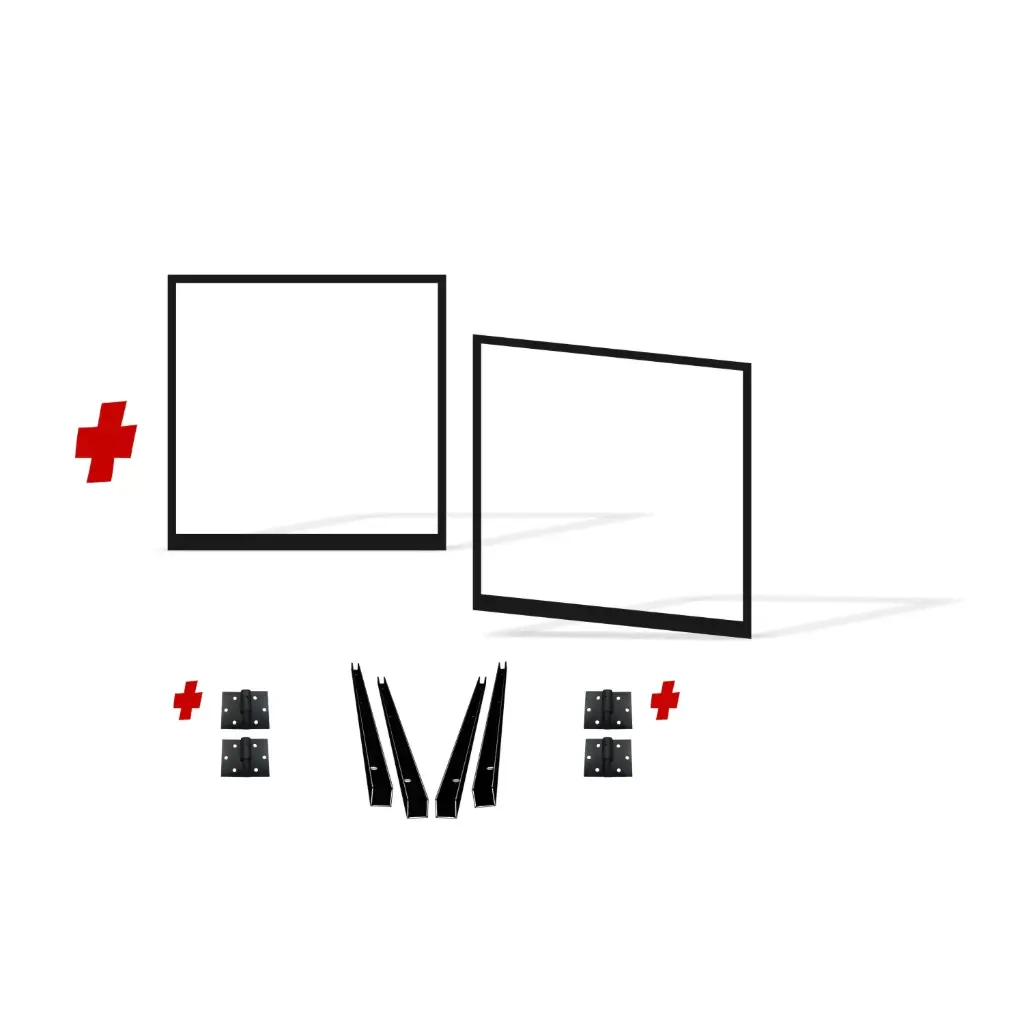

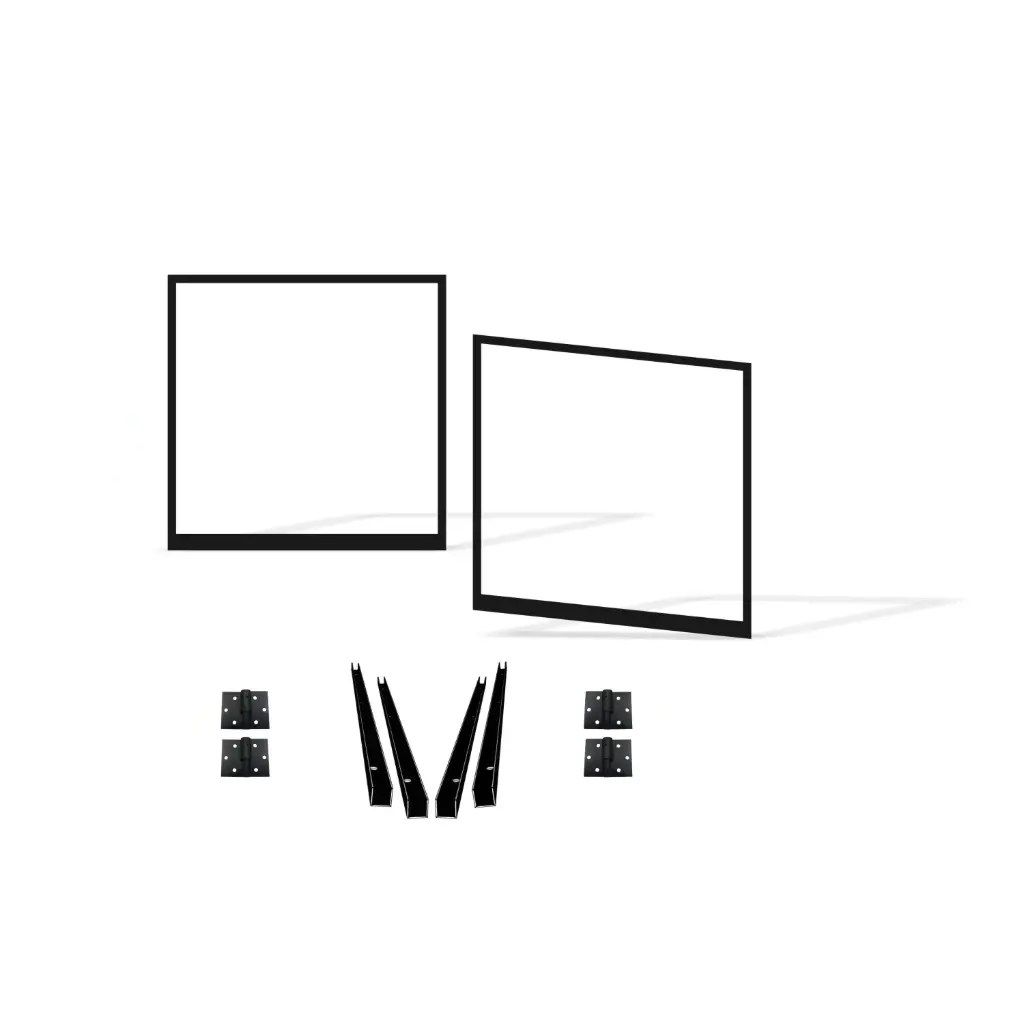

  3. 4800mm Double Swing Driveway Gates Opening (1200mm H) 4.8×1.2m Internal Cladding Gate Frames + Hinges (Satin Black Powder Coat)
4800mm Double Swing Driveway Gates Opening (1200mm H) 4.8×1.2m Internal Cladding Gate Frames + Hinges (Satin Black Powder Coat)

4800mm Double Swing Driveway Gates Opening (1200mm H) 4.8×1.2m Internal Cladding Gate Frames + Hinges (Satin Black Powder Coat)

Kit Part No: FRAME12-2385-INTCLAD x2+HINGES
Bulky Item https://www.alphaautomation.com.au/web/image/product.template/5066/image_1920?unique=4d89025

$ 656.00 656.0 AUD $ 656.00 Tax Included

Not Available For Sale

  • Gate Frame Colour
  • Design
  • Driveway Opening Size (Swing Gate)
  • Gate Height
  • Includes Automation

This combination does not exist.

Delivery
In-store
Click & Collect
Freight from Loading...

1 Year Warranty

Brand: Alpha Automation

Contact Us
Gate Frame Colour: Black
Design: Frame for Internal Cladding
Driveway Opening Size (Swing Gate): 4.8m (2385mm Per Gate)
Gate Height: 1200mm (1.2M)
Includes Automation: No

Terms and Conditions

Share

Versatile Driveway Swing Gate Frame for cladding

Versatile driveway gate frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness.

The gate features an open center which does not interfere with internal cladding. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm) and SHS tubing (40x40mm Top and Sides). Every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.

Key Features

✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rail
✓ SHS 40x40 Top and Sides


Internal Cladding Example

Internal cladding gate

The kit is provided ready for internal cladding within the gate frame (cladding set into the gate) This is achieved by the provided channels. If required an external cladding version is also available.



Dimensions

Important Information - Measurement details and Requirements

Width of Gate Panel 2385mm EACH
Height of Gate Panel 1200mm
Combined Width 2385mm+2385mm= 4770mm
Additional Space Requirements 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre
Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT MIN. 4815mm to Max. 4830mm + POSTS


Gate Hinge Options

Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.

Standard Ball Bearing Hinges Double Gate Strap Hinge 200mm V40 Hinge Silver Zinc Coated 300mm Strap Hinge Silver Zinc Coated

The standard ball bearing hinge is used with light weight gates only and is fixed without adjustability, it is a simple lift off type hinge. This hinge works with 100mm Posts

Strap hinge (non-adjustable) is used with gates not exceeding 150kg, it is a simple lift off type hinge. With gate frames it should be considered the minimum post size with this option should be 150mm.

The V40 Hinge (Silver Zinc Dacromet Coated) Can be installed anywhere on the gates Vertical rail allowing for Automation on the gates bottom rail without conflict from the hinge. This hinge works with 100mm Posts

The 300mm Strap Hinge (Silver Zinc Dacromet Coated) is used for weightier gates such as cladded gates requiring adjustment back to/away from post to achieve alignment, by far the most adjustable hinge option. With gate frames it should be considered the minimum post size with this option should be 150mm.
