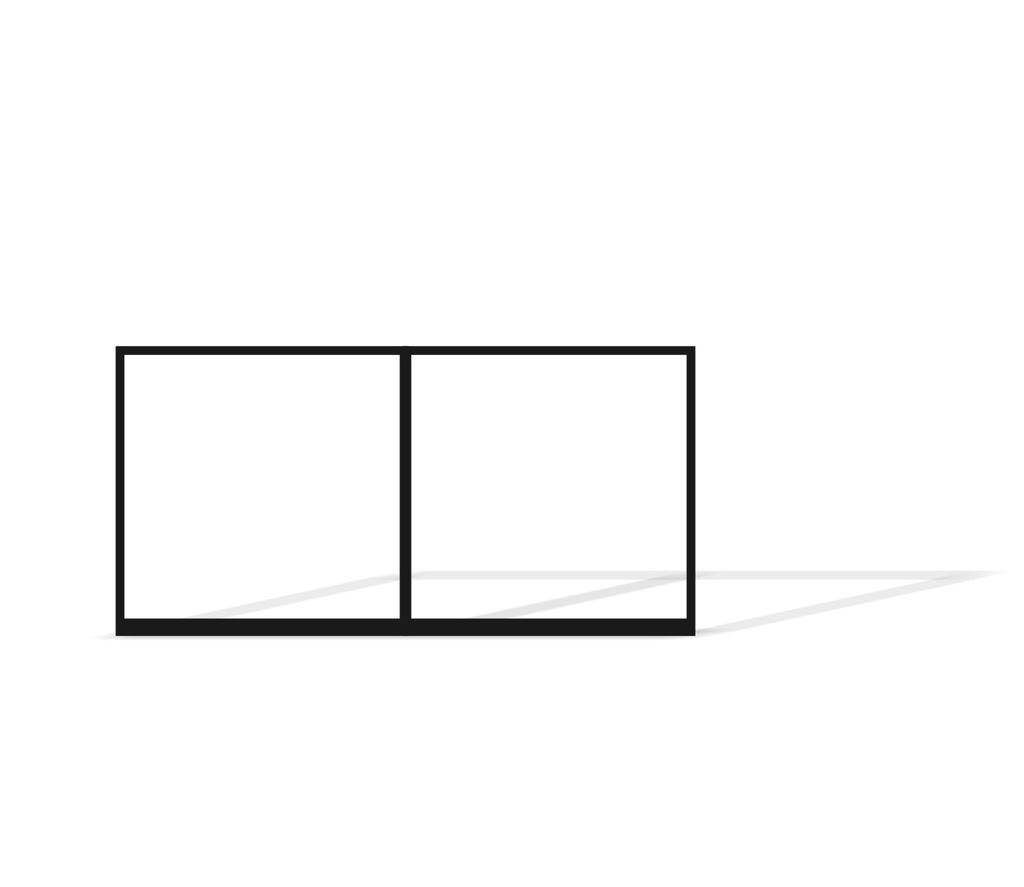

4600mm x 1200mm Cladding Driveway Gate Frame (Internal/External Cladding) (Satin Black Powder Coat)
Part No:
FRAME12-4600
Bulky Item
Versatile Driveway Sliding Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.
The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center
Cladding Methods
Internal Cladding Channel System is provided separately as an additional item (See our store), Gate is supplied ready for external Cladding
Internal Cladding Using Channel System
External Cladding Directly to Gate Face

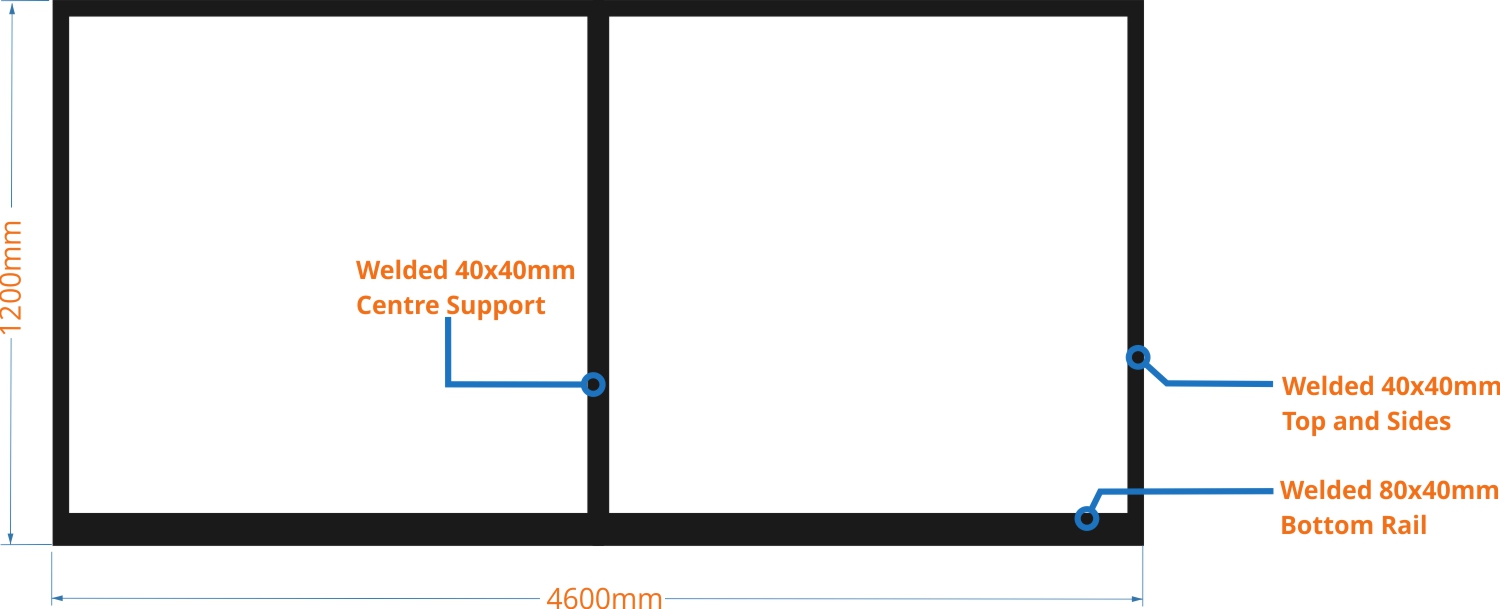

Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 4600mm EACH |
| Height of Gate Panel | 1200mm |
| Max Sliding Gate Opening Size | (Manual Operation: 4400mm factors in an internal support post)(Automated/Motorised: 4270mm) |
| Additional Space Requirements SWING GATE | 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre (Double Gates)/End of gate (Single Gate) |
