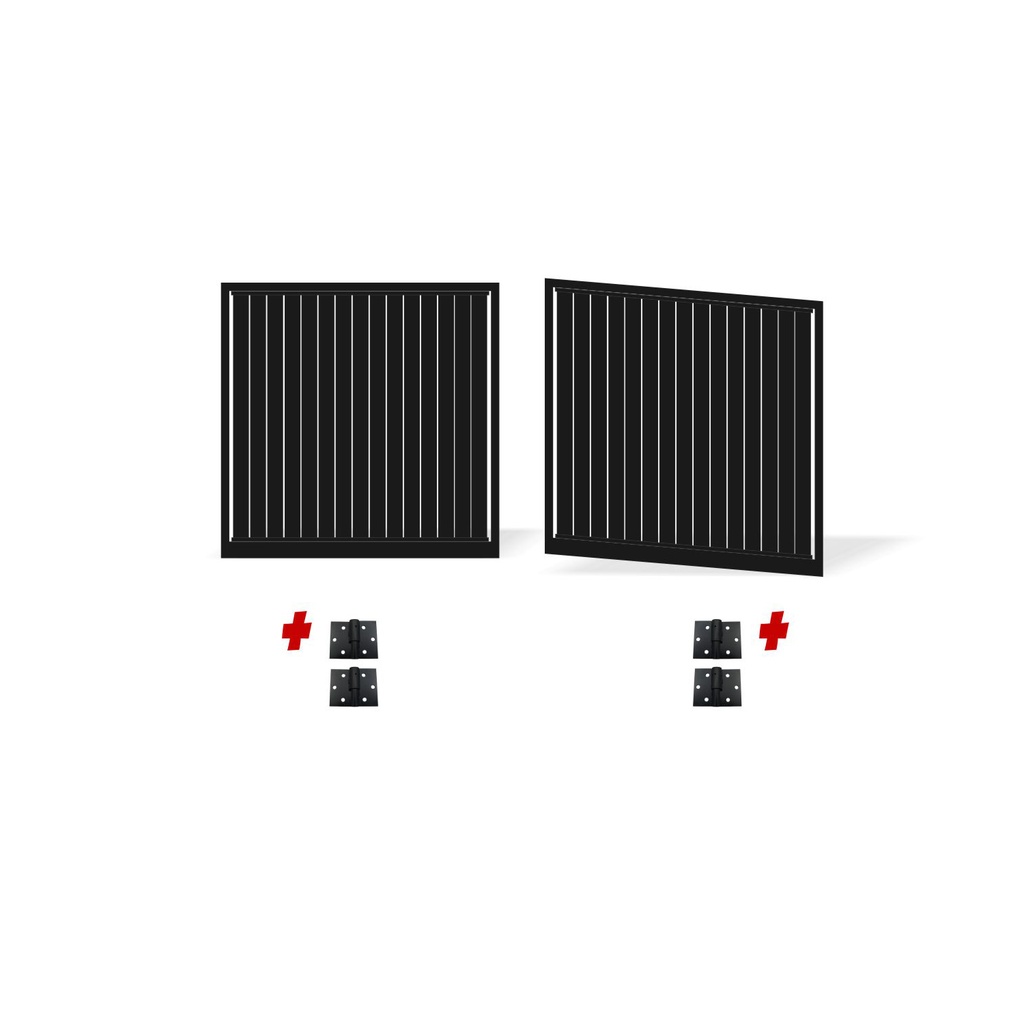

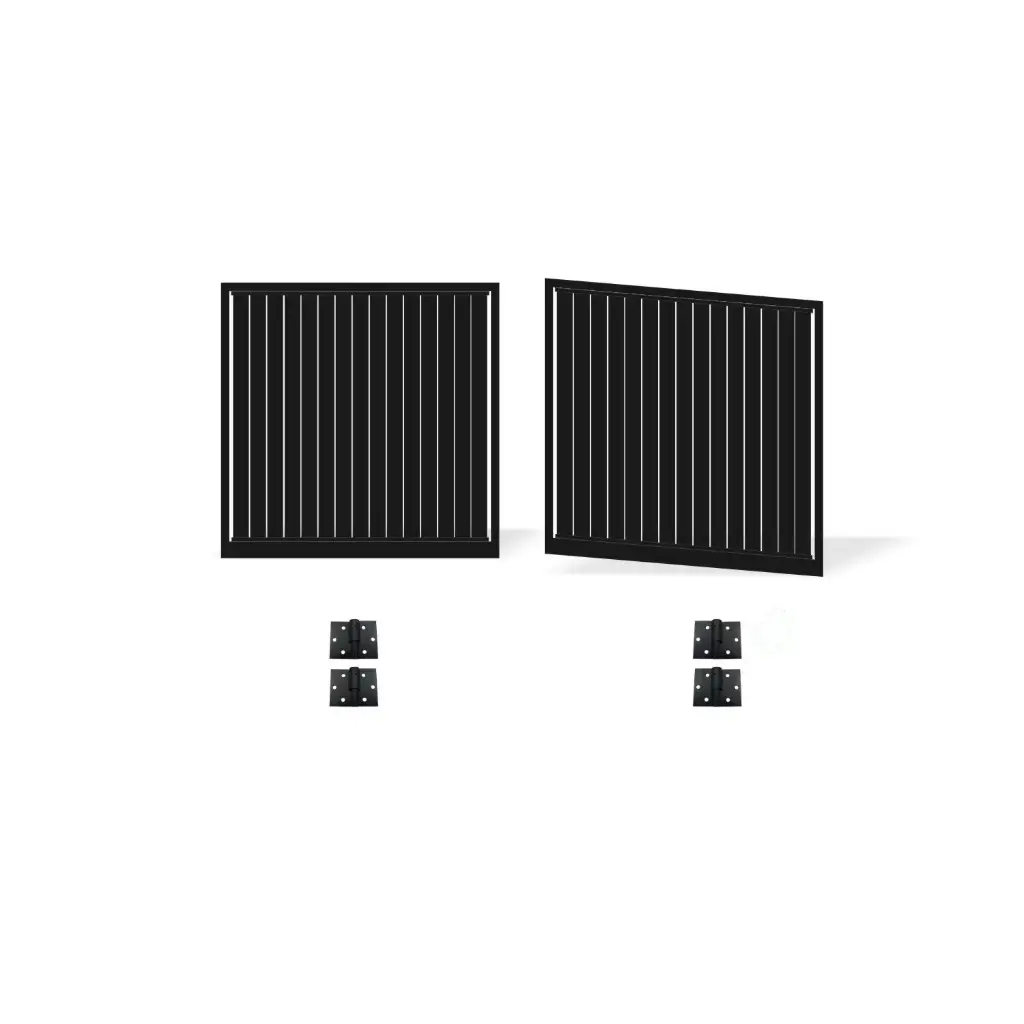

4200mm Double Swing Driveway Gates Opening (1800mm H) 4.2×1.8m Vertical Slat Gate + Hinges (Satin Black Powder Coat)
Kit Part No:
FRAME18-2085-VERT-ALUCLAD x2+HINGES
Bulky Item
| Gate Frame Colour: Black |
| Design: Vertical Slat Gate |
| Driveway Opening Size (Swing Gate): 4.2m (2085mm Per Gate) |
| Gate Height: 1800mm (1.8M) |
| Includes Automation: No |

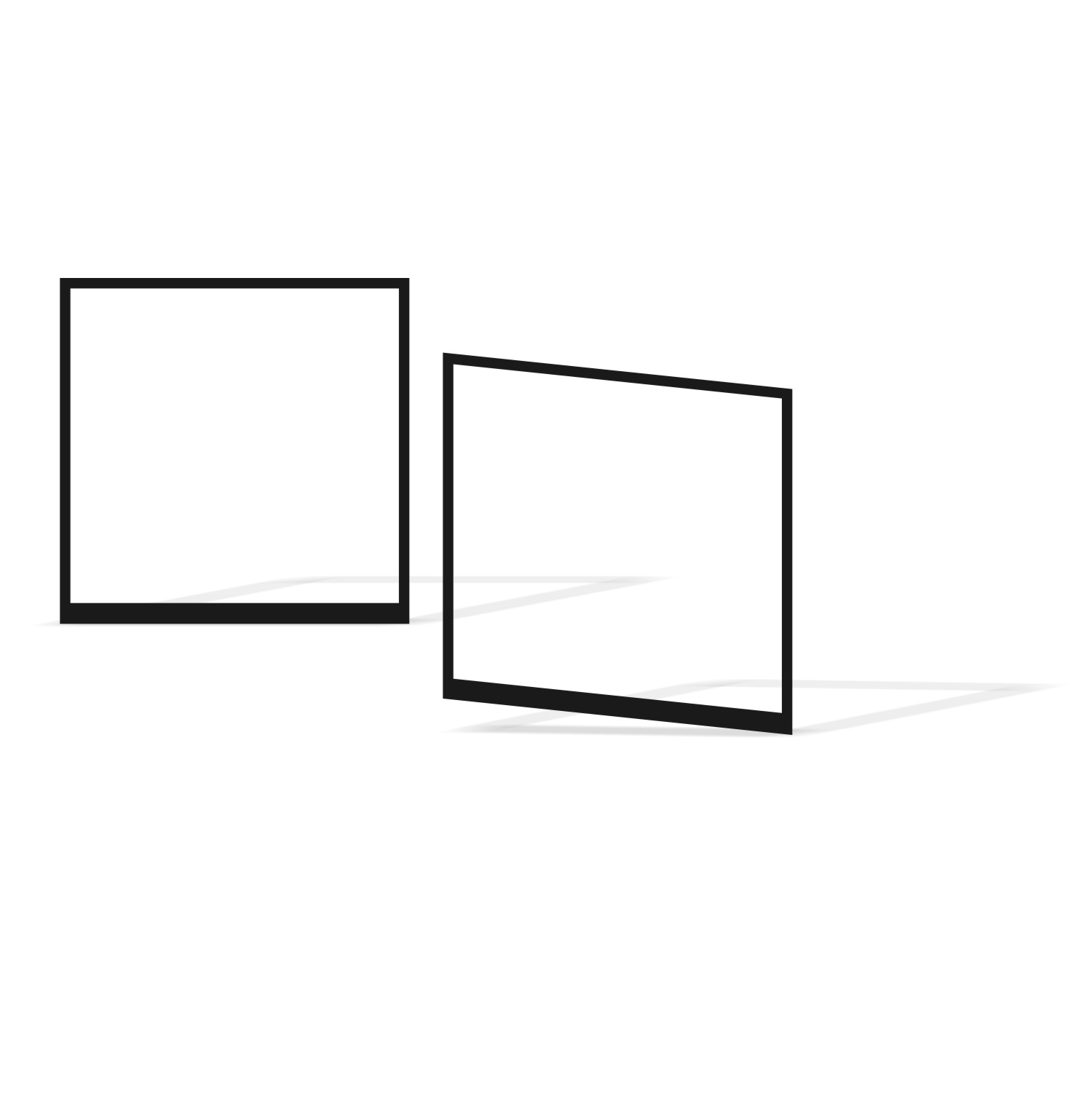

Versatile Driveway Swing Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness.
The gate features an open center which does not interfere with internal cladding. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm) and SHS tubing (40x40mm Top and Sides). Every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rail
✓ SHS 40x40 Top and Sides
The gate features an open center which does not interfere with internal cladding. The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm) and SHS tubing (40x40mm Top and Sides). Every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Satin Black Powder Coating (NIGHT SKY COLOUR)
✓ RHS 80x40 Bottom Rail
✓ SHS 40x40 Top and Sides
Vertical Aluminium Slat System
The Aluminium slat system provides maintenance free and a cost effective solution for a privacy conscience and modern gate and fencing system. Key benefits over this slat system compared to others are:

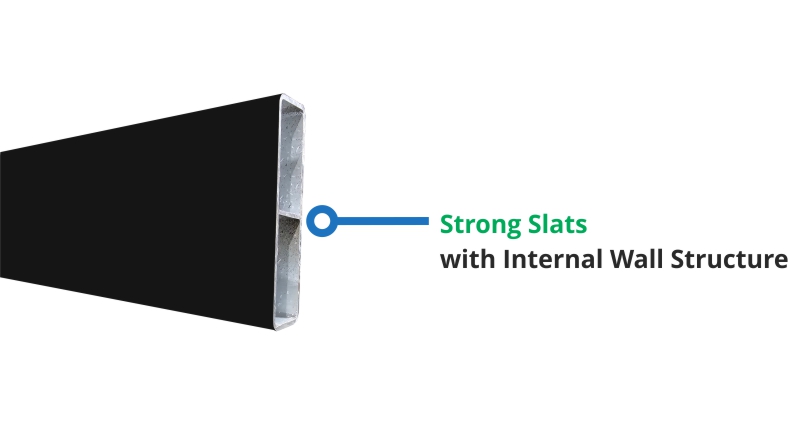

✓ Additional support structure within each slat

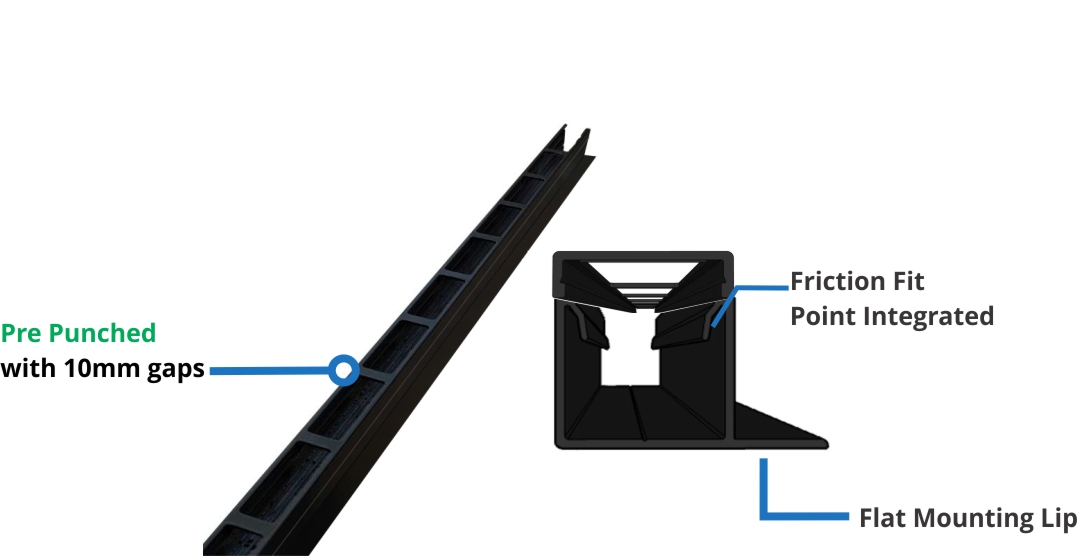

✓ Pre-Punched Channels with fixed 10mm gaps makes alignment simple
✓ No finicky spacers
✓ Finned channel extrusion allows for two friction fit holding points of the slat WITHOUT the need of additional screws (Slats are totally screw-less).
Three Aluminium slat colour's to choose from in the kit contents tab:
✓ Satin Black (Night Sky)
✓ Monument
✓ Woodland Grey
✓ Pre-Punched Channels with fixed 10mm gaps makes alignment simple
✓ No finicky spacers
✓ Finned channel extrusion allows for two friction fit holding points of the slat WITHOUT the need of additional screws (Slats are totally screw-less).
Three Aluminium slat colour's to choose from in the kit contents tab:
✓ Satin Black (Night Sky)
✓ Monument
✓ Woodland Grey
The kit is supplied with the required Aluminium slats, punched channels etc. Cutting and assembly of the slat system is required during the installation phase.
What makes ours better
Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 2085mm EACH |
| Height of Gate Panel | 1800mm |
| Combined Width | 2085mm+2085mm= 4170mm |
| Additional Space Requirements | 15-20mm for EACH Hinge Side + 15-20mm Between Gates in Centre |
| Total Space Requirements Including Mandatory Gaps BETWEEN POSTS MEASURMENT | MIN. 4215mm to Max. 4230mm + POSTS |

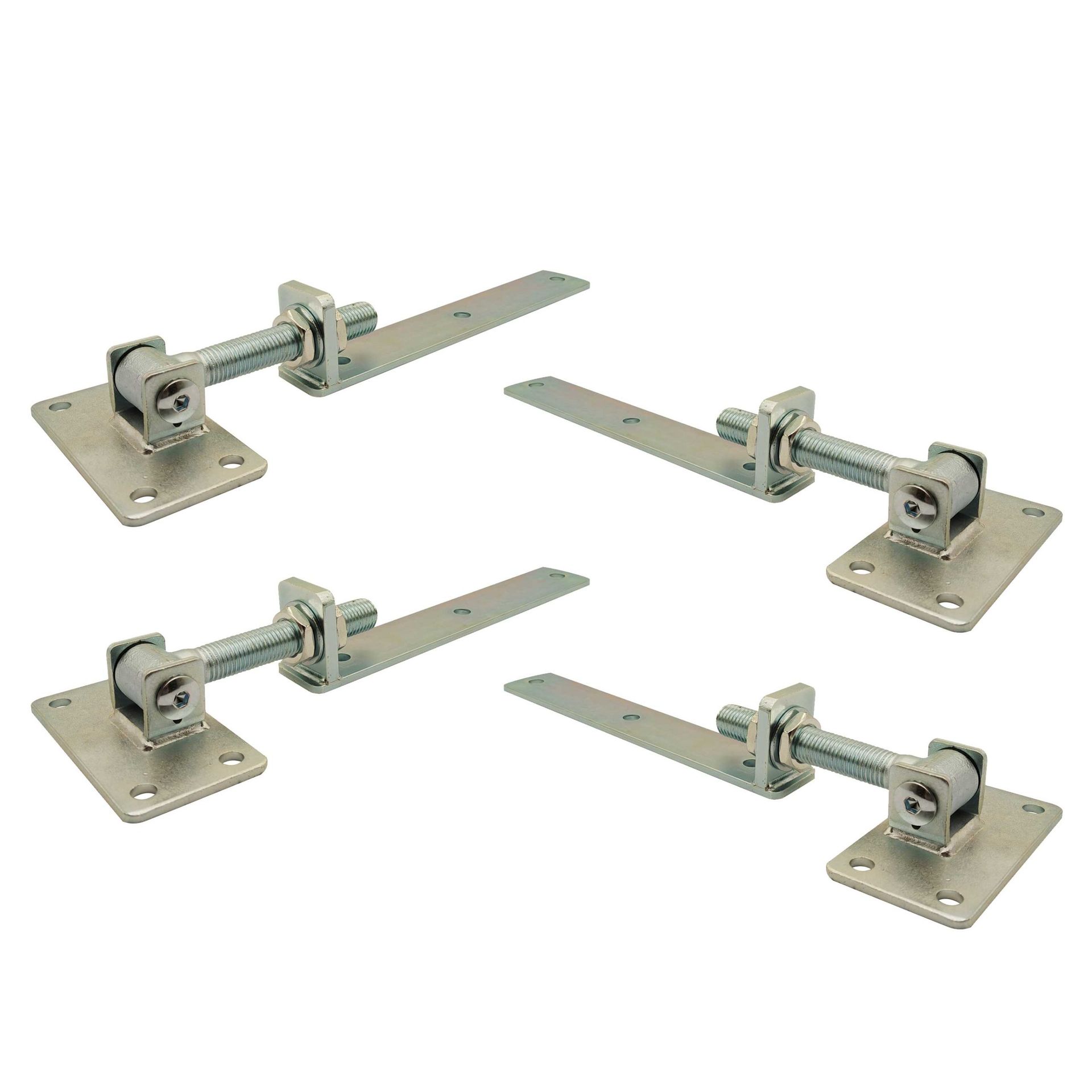

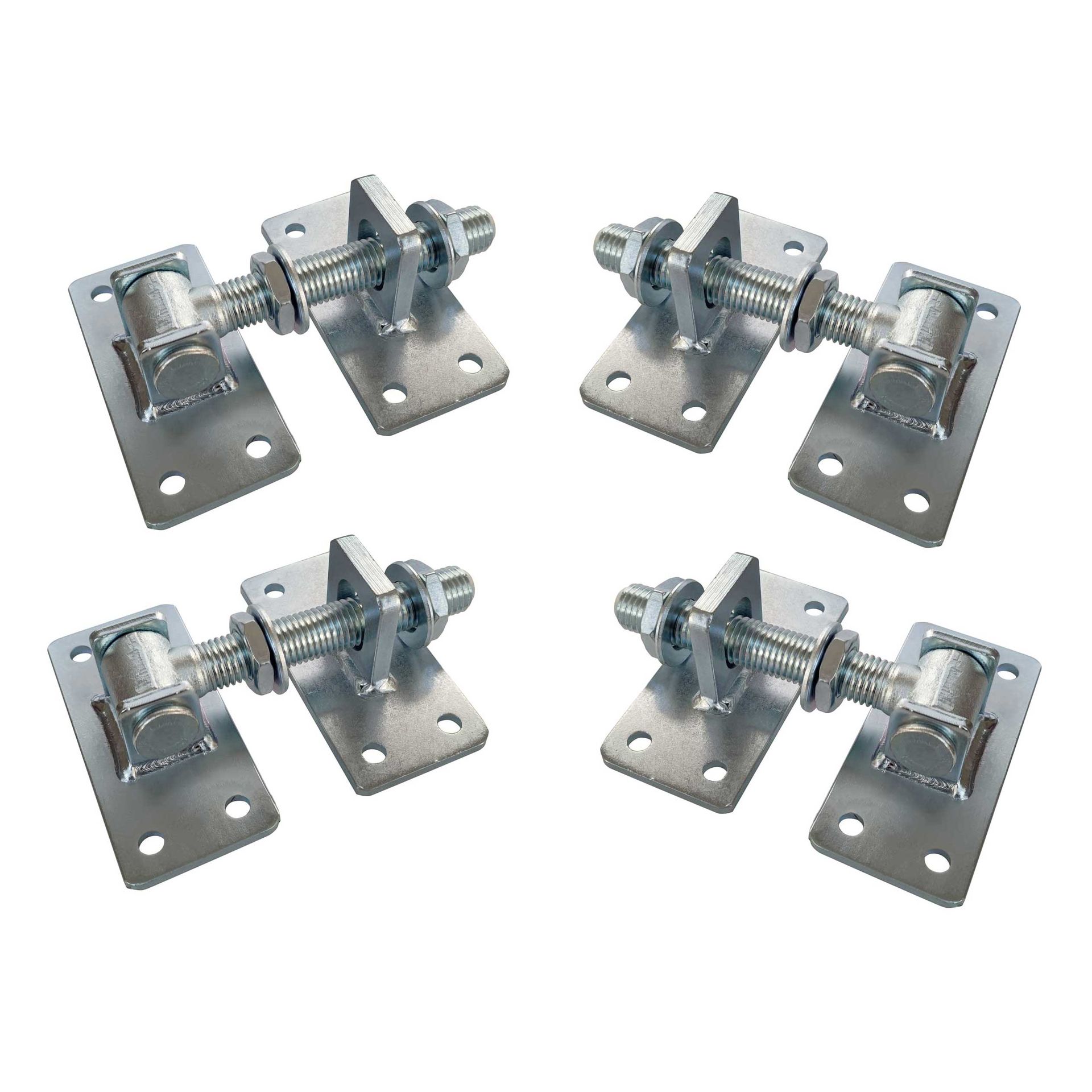

Gate Hinge Options
Multiple hinge options are available to choose from based on two factors gate weight and adjustability/flexibility.
