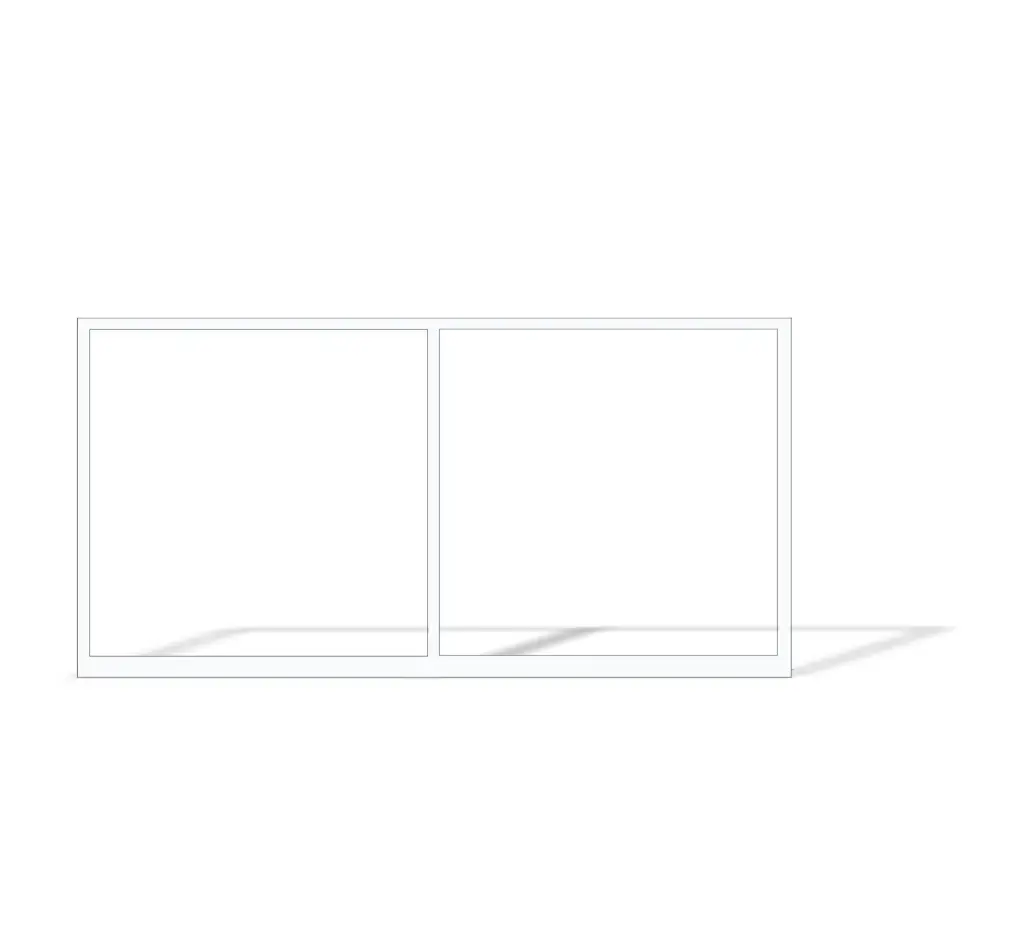

3570mm x 1500mm Cladding Driveway Gate Frame (Internal/External Cladding) (Pearl Gloss White Powder Coat)
Part No:
FRAME15-3570WH
Bulky Item
Versatile Driveway Sliding Gate Frame for cladding
The versatile design gate frame is suitable for both INTERNAL horizontal cladding (up to 20mm material thickness) or EXTERNAL vertical/Horizontal Cladding of any thickness. The gate features a center 40x40mm dividing the cladding area into two sections which does not interfere with internal cladding.
The construction is of pre-galvanized steel RHS tubing for the Bottom Rail (80x40mm), SHS tubing (40x40mm Top and Sides) and a Vertical support of 40x40mm in the center, every join on the gate is welded providing the best strength and rigidity unlike flat pack gates.
✓ Pre-Galvanized Steel Tubing
✓ Pearl Gloss White Powder Coating
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center
Key Features
✓ Proper Rigid Steel Gate, 100% Welded (NO flat pack and NO concerns about flex, integrity or assembly)✓ Pre-Galvanized Steel Tubing
✓ Pearl Gloss White Powder Coating
✓ RHS 80x40 Bottom Rails
✓ SHS 40x40 Top and Sides
✓ SHS 40x40 Vertical Center

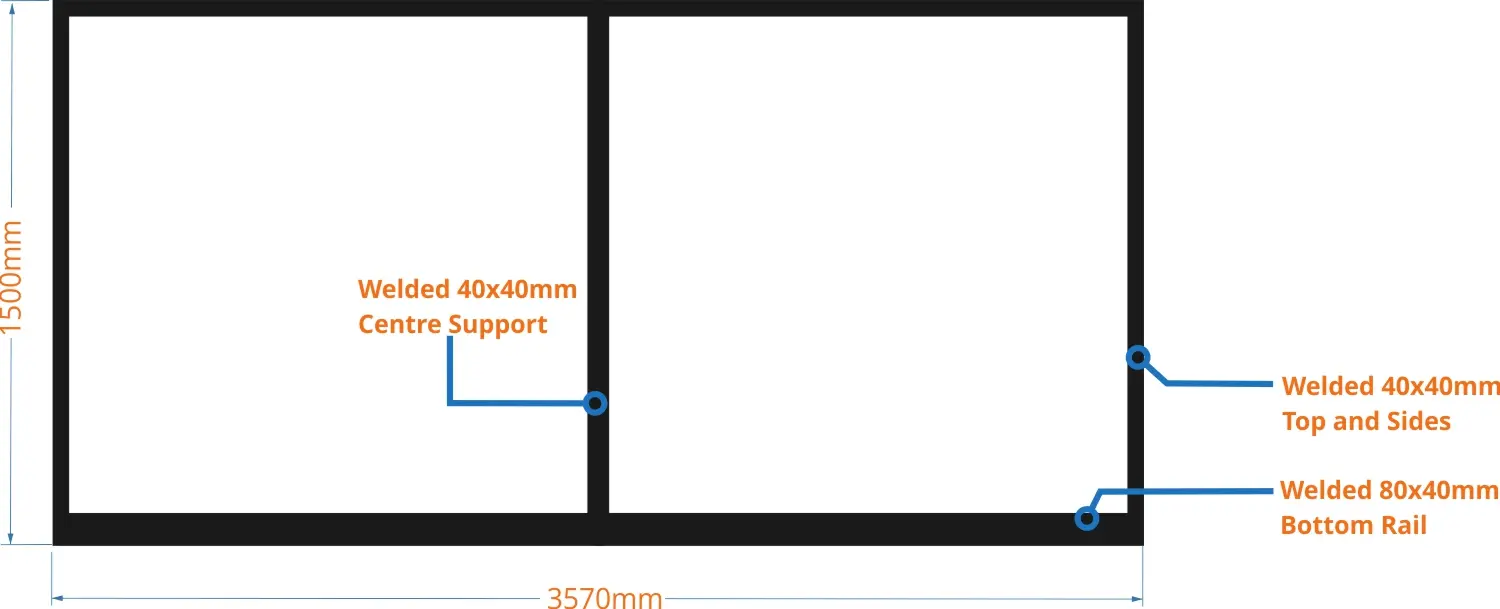

Dimensions
Important Information - Measurement details and Requirements
| Width of Gate Panel | 3570mm EACH |
| Height of Gate Panel | 1500mm |
| Max Sliding Gate Opening Size | (Manual Operation: 3300mm factors in an internal support post)(Automated/Motorised: 3140mm) |
| Min. clear area for gate to open to | 3770mm including a gate stop |
