24V ADVANCED Powered Swing Gate Control Panel LCD Screen, 1000 Users, Made in Italy

The most ADVANCED AND EASY to use control board in the gate automation industry, the ZLX24 features an endless option list and configurability.

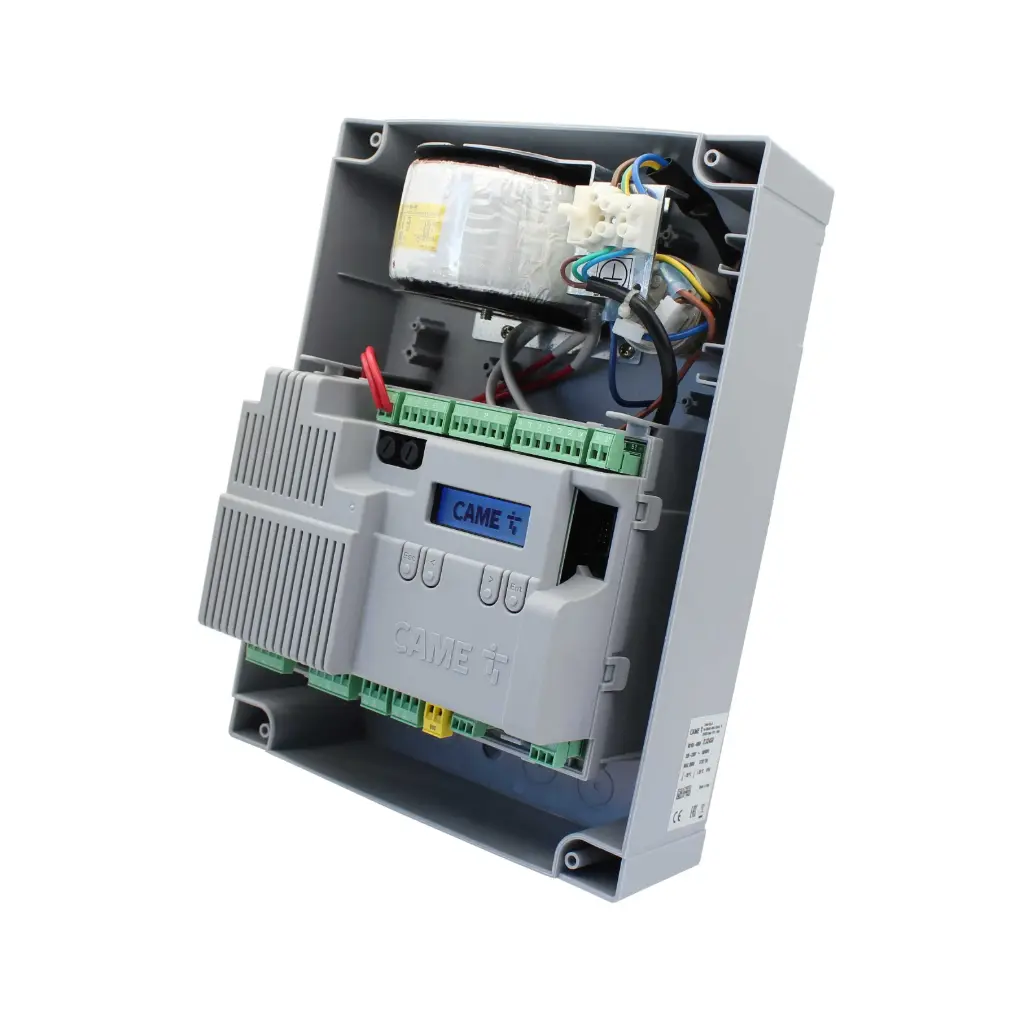

Starting with the casing the ZLX24 control box itself has 8 cable entry point four from the rear and four from the bottom side. The box can be fixed to the wall in a traditional manor being a fixing screw in each corner, or alternatively a DIN rail is supplied for its direct to DIN mounting system.

The control board itself is encased in a complete housing within the box to prevent short circuit and accidental touching of components, during the installation the control board easily unclips revealing its module storage and cable management routes, this simplifies the installation for feeding wiring through without any chance of damage.

Power Inputs and Outputs

Typical input and outputs to power the system and any wired in accessories

24V Power Input
24V Power Output For Accessories

Automatic Weekly Timer

Completely configurable times to open and close the gate automatically and also switch the relay output (great for garden lights).

Selective choice of the 7 Days of the week settings, or the entire week
12/24 Hour Format
EACH timer event can be configured to Open gates, Partial Opening or B1-2 Output Activated

Configurable Methods Of Operation

Along with the on onboard weekly timer wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and pedestrian opening however as seen below it can be dynamically set according to specific requirements.

ON BOARD WEEKLY TIMER Set the days and times in which you want the gate to open and close EASILY by the LCD screen
Full Gate Operation by remote
Partial by remote (Opens one gate partially) OR Pedestrian by remote (Opens ONE gate completely)
Open Only by remote
Close Only by remote
Open/Close Input by Wired Accessories
Open only Input by Wired Accessories (loop Detector)
Close only Input by Wired Accessories (loop Detector)
Wired Emergency STOP Button

Remote Operation

The remote buttons can individually be programmed to work in any of the below settings for each button.

OPEN-CLOSE (Reverting action if pressed part way through a cycle)
OPEN-CLOSE (Sequential action if pressed part way through a cycle it will STOP)
Partial-Pedestrian Operation
RELAY OUTPUT/STAY OPEN Feature (Pause automatic close)

Motor Specifics

Default configurations are already set however, if required further adjustment can be made to suit all installations

ENCODER Control
Automatic Calibration (with Adjustable Calibration Speed)
Motor Test (used for checking your directions prior to calibration)
Adjustable Thrust
Adjustable Travel Speed
Adjustable Sensitivity
Adjustable Slowdown Speed
Adjustable Slowdown Position (Two Stages)
Delay Time Between Motors for Opening
Delay Time Between Motors for Closing

Safety Devices

Plenty of support to protect occupants, visitors and there vehicles with FOUR Safety Inputs completely configurable in there functionality and method of operation with 11 different Logic settings.

Supports Photocell Sensors
Supports Reflective Sensors
Supports Safety Edge
Supports Induction Loops for Safety
Supports STOP Button
Supports Maintained Action (Hold to OPEN/CLOSE)

Added Electric Lock Security

Added protection for the gates and gate system if wind is a factor or in a high risk setting

Automatic Electric Lock (Adjustable Time) with Reverse Thrust Feature
TWO Electric Lock Outputs, Allows you to use ONE or TWO electric Locks to secure depending on the gate/lock arrangement (with adjustable logic on how they operate).

Control Board Security

A secure password can be set on the control board to prevent unauthorized users from accessing and adjusting its functions. This is an excellent feature in even low risk settings preventing unauthorized users from being able to operate the gate from the ZLX24 menu.

Light Control

Multiple options for visible safety alerts, illuminating the driveway OR Both

Flashing/Static Illuminated Light from OPEN til CLOSED
Additional Output for Flashing During Opening

Operational Control

Infinite support for accessories and methods of operation

Remote Controls
Wireless Keypads
Wired Keypads
Wired Button
Induction Loops
Intercom Systems

Relay Output B

Default Can be set to work on a remote button and/or by the weekly timer

Set to a latching ON/OFF Circuit
Can be used to trigger an alarm, garage door or another gate
Can be used to enable/disable an accessory at set times/days such as an entry or exit loop or a wired button and keypad
Can be used to keep as a STAY OPEN function in the case of an automatic close timer, this is great for trailer and truck access, a time when multiple visitors may be using the gate, etc.
