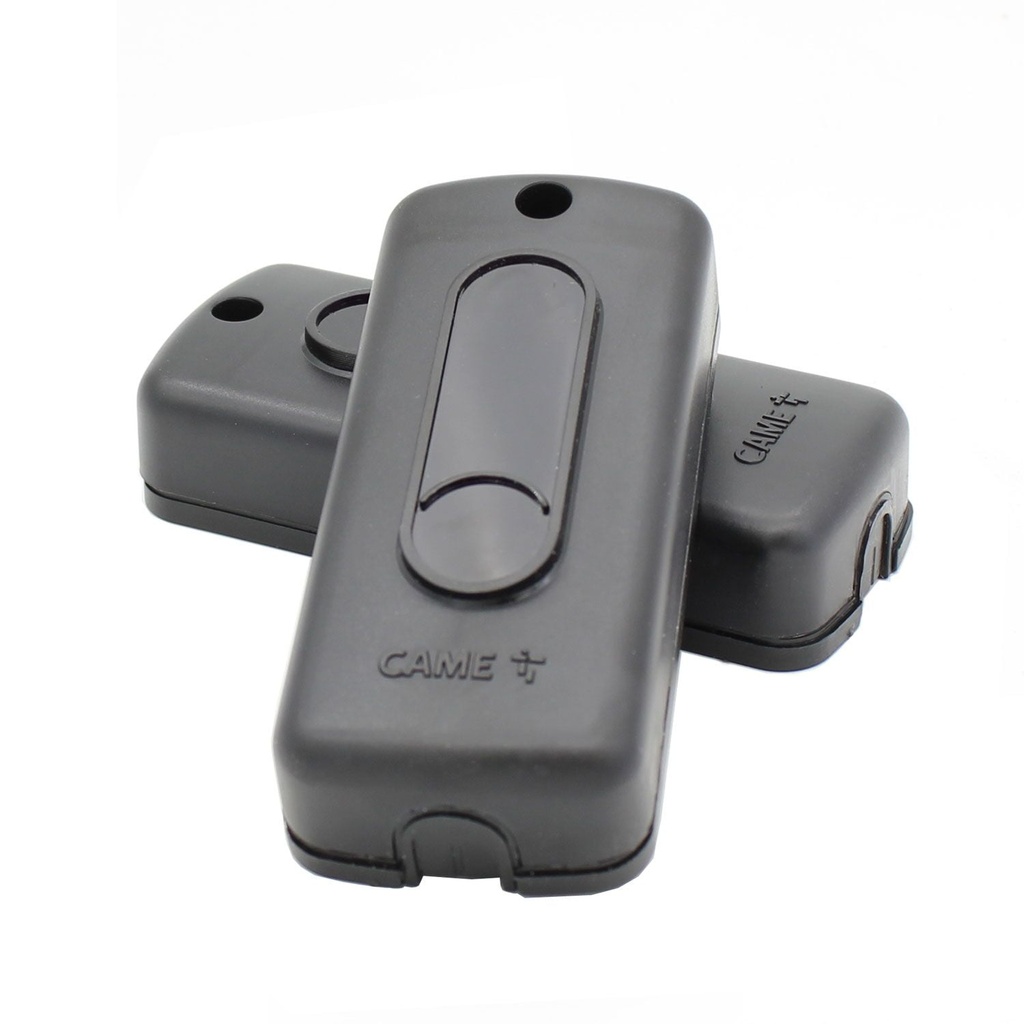

The DIR10 Photocell is an easy to install high grade unit with excellent build characteristics as the front covers are of polycarbonate material for added strength and durability.
It is versatile in its operating voltage of 12-24V AC OR DC and can be wired from the system directly to each cell, or alternatively in a daisy chain configuration from system to the first cell and from the first cell to the second cell. It can be used for up to a 10 meter distance between the photocells.
Cable can be brought into the photocells from either the backside OR externally through the bottom of each photocell meaning one type of photocell caters for all methods of install.
| Voltage | 12-24V AC/DC |
| Standby Current (mA) | 60mA |
| Operational Distance | 10 Metres |
| Circuits | Normally Closed |
| Operating Temperature | -20°-70°C |
| Material | ABS Backing, Polycarbonate Cover |
